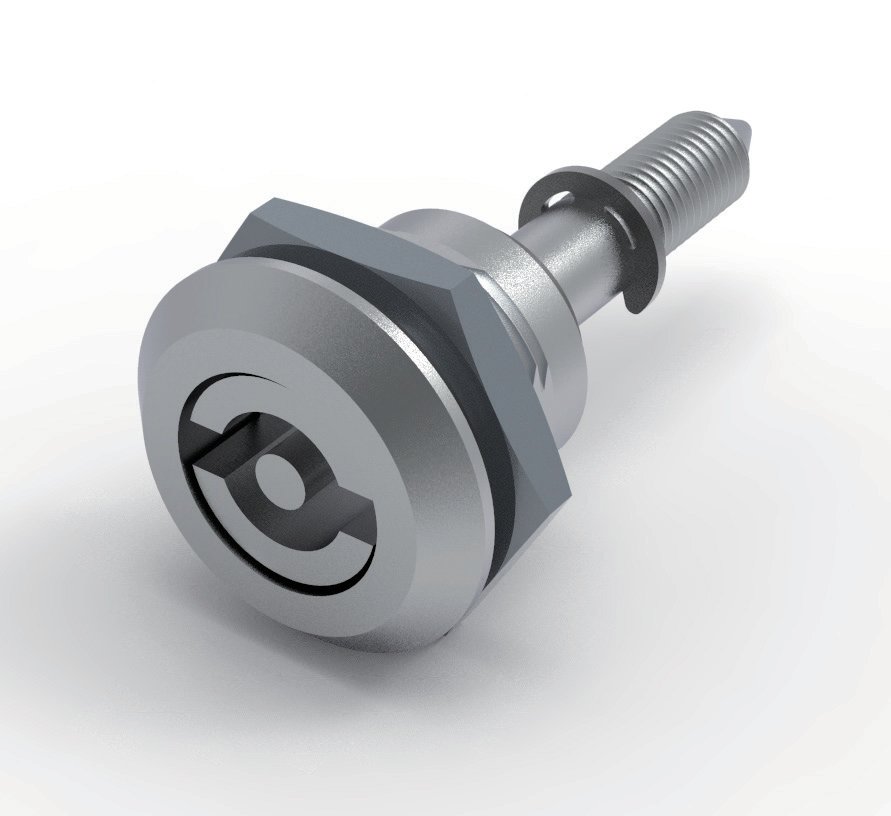

The MY704-1 cam lock with weld nut fastens to the cabinet frame with a weld nut, so it stays firmly fixed for repeated use on electrical and industrial cabinet doors. A 90° rotation of the K15-1 key opens or closes the lock.
The housing is zinc alloy with a bright chrome plated finish and a galvanized steel cam and insert. Three sizes (A=40/46/54 mm with H=23/28/34 mm) cover different frame and door configurations.
Typical applications include electrical cabinets, distribution boxes and industrial enclosures. The dimension and cut-out drawings are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MY704-1/23 | cam lock with weld nut, A=40 mm | Zinc alloy housing, galvanized steel cam and insert | Bright chrome plated | Optional K15-1 |
| MY704-1/28 | cam lock with weld nut, A=46 mm | Zinc alloy housing, galvanized steel cam and insert | Bright chrome plated | Optional K15-1 |
| MY704-1/34 | cam lock with weld nut, A=54 mm | Zinc alloy housing, galvanized steel cam and insert | Bright chrome plated | Optional K15-1 |
Dimension Drawing & Cut-out
FAQ
Q: What is the weld nut for on the MY704-1?
A: The weld nut lets you fasten the lock directly to the cabinet frame for a firm, secure fixing.
Q: How does it open and close?
A: A 90° rotation of the key drives the cam to open or close the door.
Q: What sizes are available?
A: Three frame sizes — A=40, 46 and 54 mm with H=23, 28 and 34 mm.
Q: Does it come with a key?
A: A K15-1 key is available as an option.
