MY705 Cylinder Lock, IP54 Zinc Alloy Cam Lock with 18 Insert Types & Optional K15-1 Key

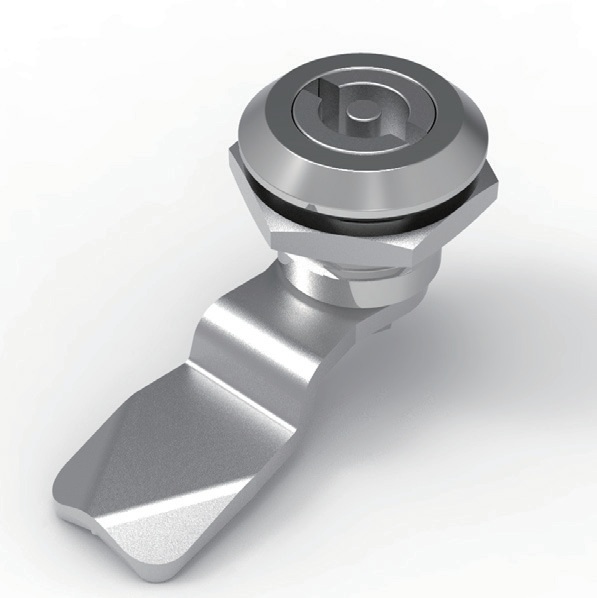

The MY705 cylinder lock is an IP54 quarter-turn cam lock for electrical cabinets, telecom cabinets, distribution boxes and other industrial enclosures. A 90° rotation of the key drives the galvanized steel cam to open or close the door, and the lock mounts into a standard cut-out with a seal for dust and splash protection.

The housing is zinc alloy with a bright chrome plated finish and a galvanized steel cam and insert; stainless steel (SUS) and PA (nylon) housing options are also available. The MY705 accepts a wide range of insert (key) types — double bit, triangular, square, hexagon, slot and more — so one lock series covers most access-control requirements. An optional K15-1 key cylinder provides keyed locking.

The lock is supplied in five housing lengths (GH18, GH28, GH36, GH32 and GH62) to match different door and panel thicknesses. Typical applications include power distribution cabinets, telecom cabinets, network cabinets, data center cabinets and energy storage cabinets. Dimension and cut-out drawings are provided below.

Part Number	Description	Material	Finish	Key
MY705-1 ~ MY705-18	cylinder lock, 18 insert types	Zinc alloy housing and insert, galvanized steel cam	Bright chrome plated housing	Optional K15-1
MY705-1S ~ MY705-18S	cylinder lock, stainless steel housing	SUS304 housing and insert, galvanized steel cam	Stainless steel	Optional K15-1
MY705-GH32 / GH62	cylinder lock, long housing (GH32/GH62)	Zinc alloy housing and insert, galvanized steel cam	Bright chrome plated housing	Optional K15-1

Insert (Key) Types

The MY705 insert is available in 18 types: double bit 4 mm, double bit 3 mm, hooked 4 mm, triangular 8 mm, square 8 mm, square 8 mm with slot, square 6 mm, square 7 mm, socket hexagon 10 mm, slot, hexagon 11 mm, thorn, flat cylinder, triangular 7 mm, triangular 9 mm, heptagon, triangular 10 mm with circle, concave with slot and hexagon female with pin.

FAQ

Q: What is the MY705 cylinder lock used for?
A: It is a quarter-turn cam lock for electrical, telecom, distribution and industrial cabinet doors — a 90° rotation of the key opens or closes the door.

Q: How many insert (key) types does the MY705 offer?
A: 18 types — double bit, triangular, square, hexagon, slot, thorn, flat cylinder and more.

Q: What materials is the MY705 available in?

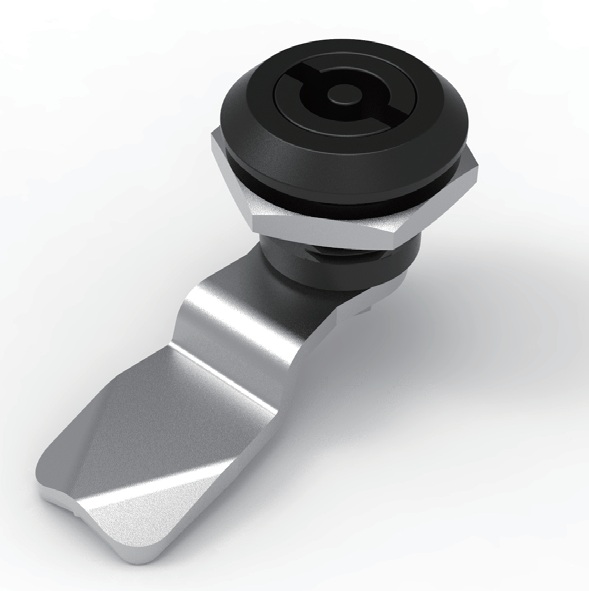

A: Zinc alloy (bright chrome plated) as standard, with SUS304 stainless steel and PA (nylon) housing options.

Q: Does the MY705 come with a key?
A: A K15-1 key cylinder is available as an option; tell us when ordering if you need the keyed version.

Q: What housing lengths are available?
A: Five lengths — GH18, GH28, GH36, GH32 and GH62 mm — to match different door and panel thicknesses.

Q: What is the IP rating?
A: IP54, protected against dust and splashing water.
