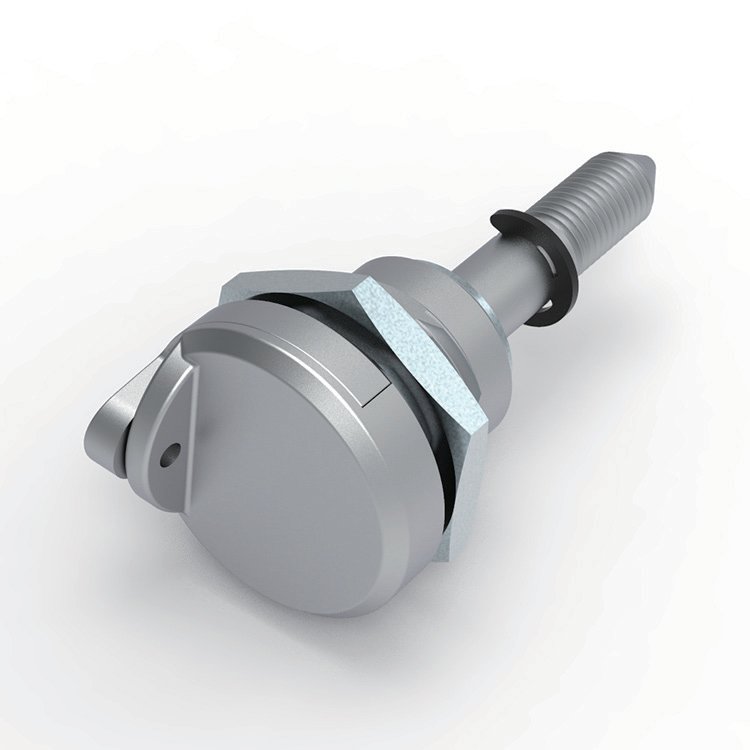

The MY704-1A quarter turn cam lock is a zinc alloy cylinder lock with a dust-proof cover that shields the keyway from dust, moisture and debris on electrical and industrial cabinet doors. A 90° rotation of the key opens or closes the lock.
The housing is bright chrome plated with a galvanized steel cam and insert. An optional K15-1 key cylinder provides keyed access control.
Typical applications include electrical cabinets, distribution boxes and control panels. The dimension and cut-out drawings are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MY704-1A | quarter turn cam lock with dust-proof cover | Zinc alloy housing, galvanized steel cam and insert | Bright chrome plated | Optional K15-1 |

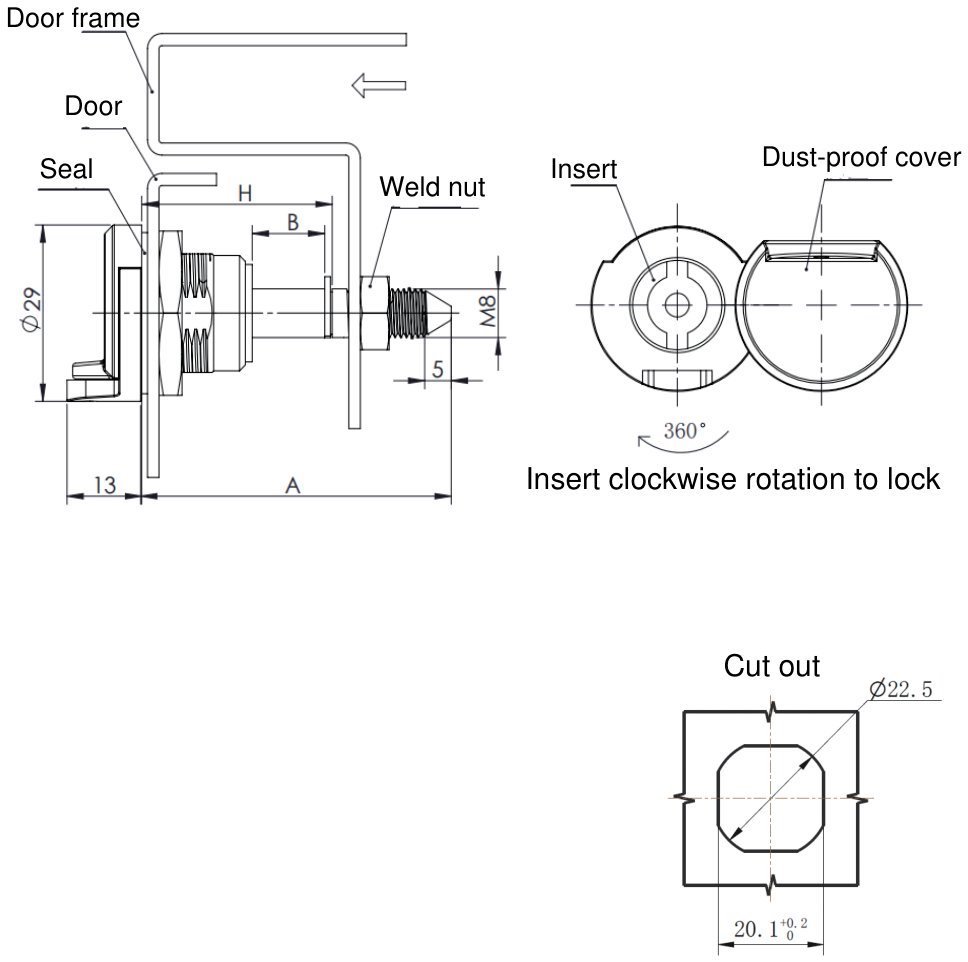

Dimension Drawing & Cut-out
FAQ
Q: What is the dust-proof cover for?
A: It shields the keyway from dust and moisture, protecting the cylinder in dusty or humid sites.
Q: How does it open and close?
A: A 90° rotation of the key drives the cam to open or close the door.
Q: Does it come with a key?
A: A K15-1 key cylinder is available as an option.
Q: Where is it used?
A: Electrical cabinets, distribution boxes and control panels.
