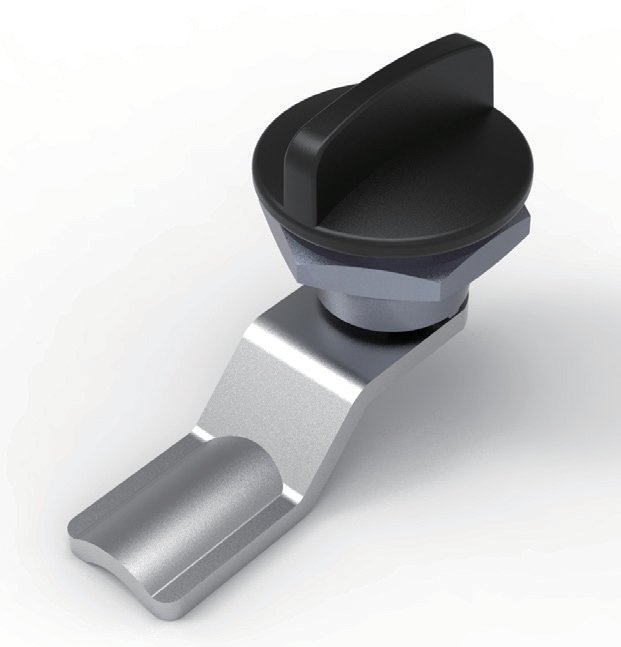

The MY705-3C-4 handle cam lock combines a zinc alloy housing with a black powder coated handle and a K333 key cylinder, giving quick 90° handle operation for cabinet and enclosure doors.
It is available in a two-slot housing (key cannot be removed when open) and a four-slot housing (key can be pulled out when open). The cam is galvanized steel.
Typical applications include electrical cabinets, telecom cabinets and control panels. The dimension and cut-out drawings are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MY705-3C-4 | handle cam lock, two-slot housing (key cannot be removed when open) | Zinc alloy housing and handle, galvanized steel cam | Powder coating (black) | K333 |
| MY705-3C-4 | handle cam lock, four-slot housing (key can be pulled out when open) | Zinc alloy housing and handle, galvanized steel cam | Powder coating (black) | K333 |

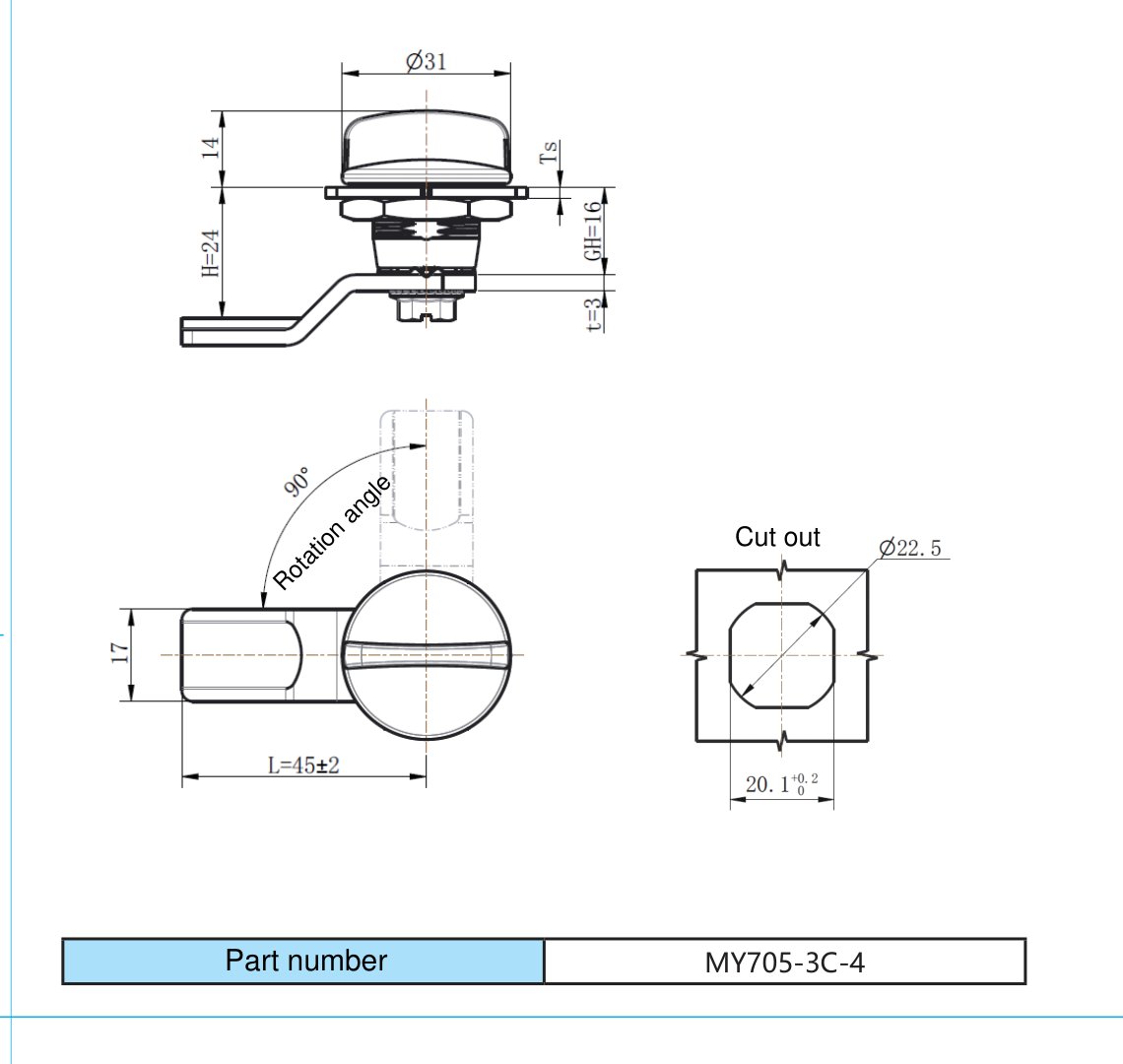

Dimension Drawing & Cut-out
FAQ
Q: What is the difference between two-slot and four-slot housings?
A: With a two-slot housing the key cannot be removed while open; with a four-slot housing the key can be pulled out when open.
Q: What key does the MY705-3C-4 use?
A: A K333 key.
Q: How does it open and close?
A: A 90° rotation of the handle or key opens or closes the door.
Q: Where is it used?
A: Electrical cabinets, telecom cabinets and control panels.
