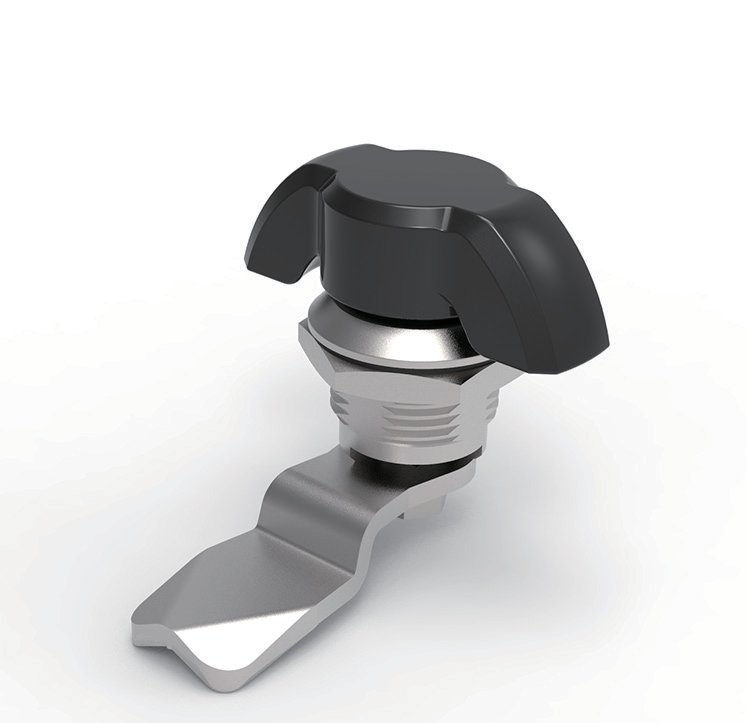

The MY705-3P cam lock is a stainless steel cylinder lock with a black powder coated handle, giving excellent corrosion resistance for industrial cabinet and enclosure doors.
A 90° rotation of the handle drives the stainless steel cam to open or close the door.
Typical applications include electrical cabinets, control panels and industrial enclosures. The dimension and cut-out drawings are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MY705-3P | stainless steel handle cam lock | Stainless steel housing, handle and cam | Stainless steel natural color housing, powder coated (black) handle | — |

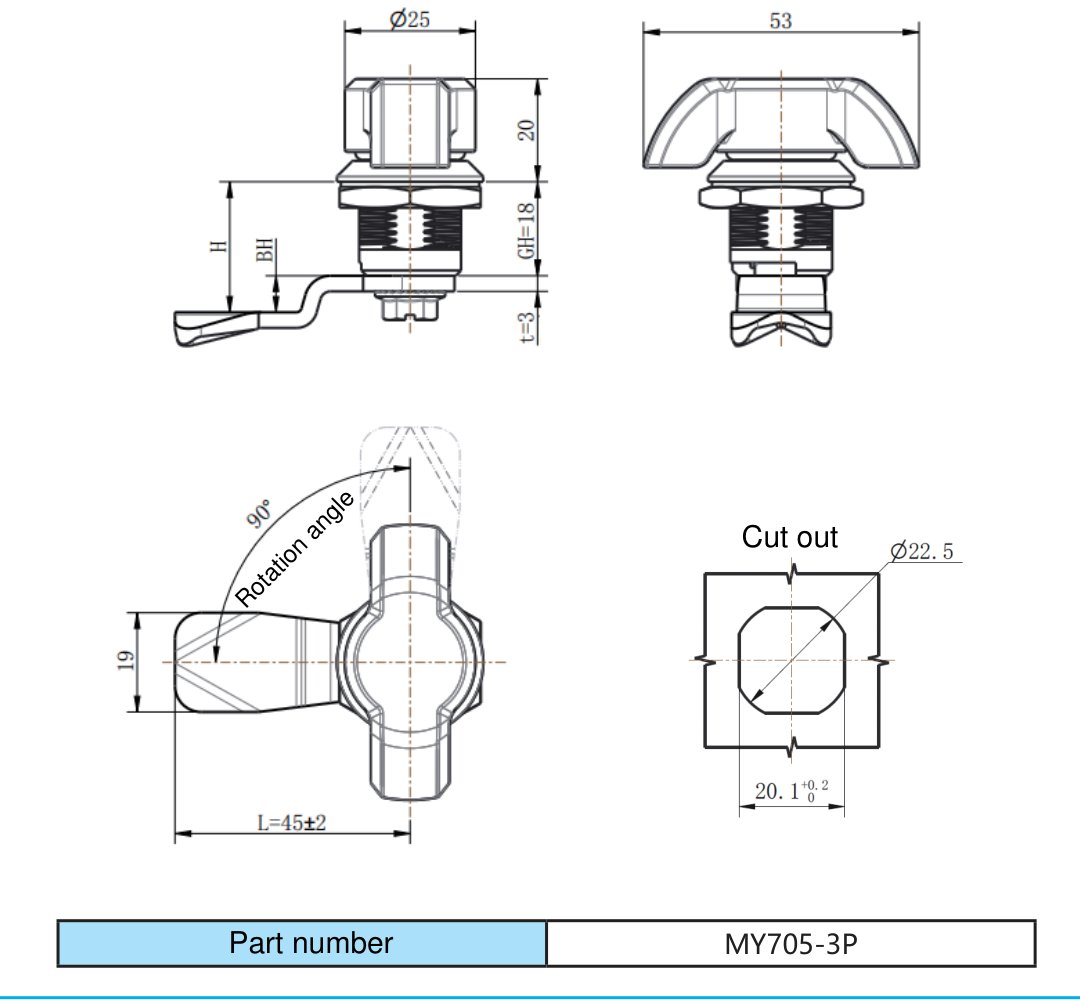

Dimension Drawing & Cut-out
FAQ
Q: What is the finish on the MY705-3P?
A: Stainless steel natural color housing with a black powder coated handle.
Q: How does it open and close?
A: A 90° rotation of the handle drives the cam to open or close the door.
Q: Where is it used?
A: Electrical cabinets, control panels and industrial enclosures.
