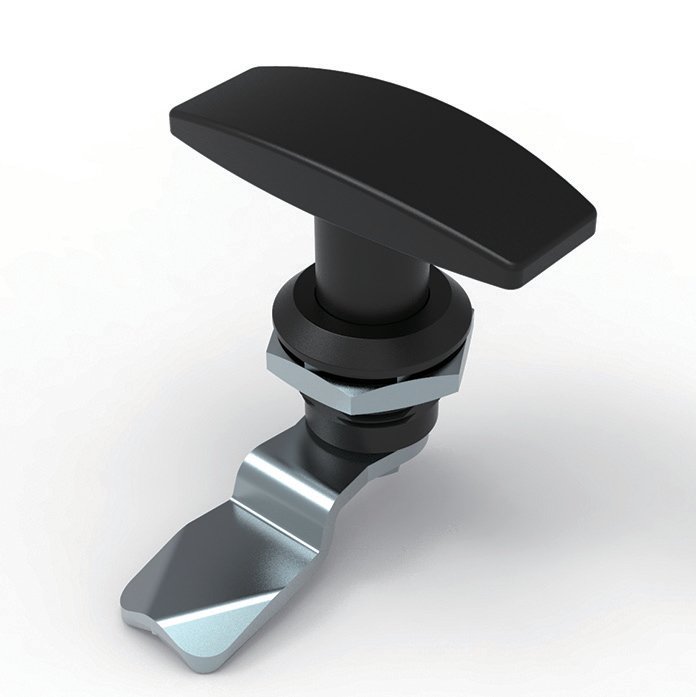

The MY705-3U black cam lock combines a zinc alloy housing and handle with a black powder coated finish, giving a clean black look for cabinet and enclosure doors.
A 90° rotation of the handle drives the galvanized steel cam to open or close the door.
Typical applications include electrical cabinets, telecom cabinets and control panels. The dimension and cut-out drawings are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MY705-3U | black handle cam lock | Zinc alloy housing and handle, galvanized steel cam | Powder coating (black) | — |

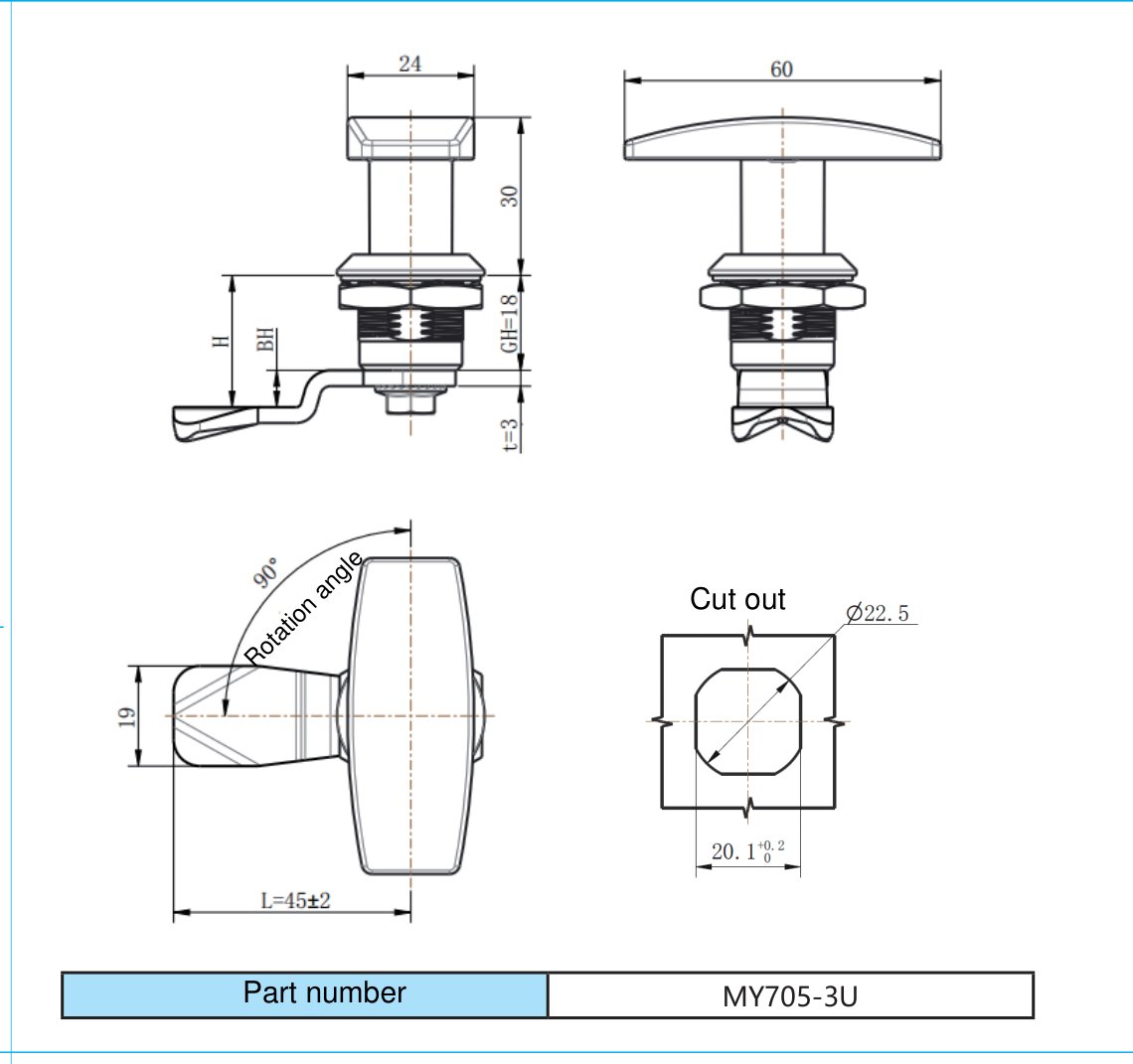

Dimension Drawing & Cut-out
FAQ
Q: What is the MY705-3U made of?
A: Zinc alloy with a black powder coated finish.
Q: How does it open and close?
A: A 90° rotation of the handle drives the cam to open or close the door.
Q: Where is it used?
A: Electrical cabinets, telecom cabinets and control panels.
