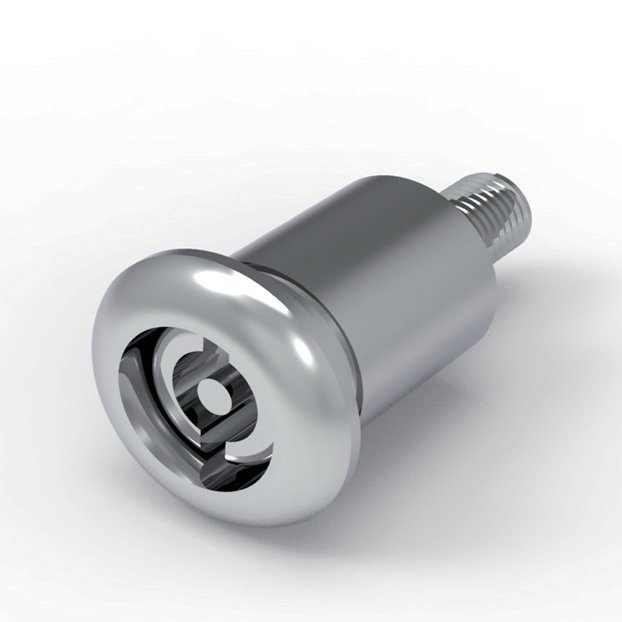

The MY704-2 dust proof cam lock features a dust-proof cap that seals the keyway when closed, keeping dust, rain and debris out of the cylinder on outdoor and industrial cabinets. A 90° rotation of the key opens or closes the door.
The housing and insert are steel with a bright chrome plated finish, and an optional K15-1 key cylinder.
Typical applications include electrical cabinets, telecom cabinets and outdoor enclosures. The dimension and cut-out drawings are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MY704-2 | dust proof cam lock with dust-proof cap | Steel housing and insert | Bright chrome plated | Optional K15-1 |
Dimension Drawing & Cut-out
FAQ
Q: What makes the MY704-2 dust proof?
A: A dust-proof cap seals the keyway when closed, keeping dust and water out of the cylinder.
Q: How does it open and close?
A: Lift the cap, then a 90° rotation of the key opens or closes the door.
Q: Does it come with a key?
A: A K15-1 key cylinder is available as an option.
Q: Where is it used?
A: Electrical cabinets, telecom cabinets and outdoor enclosures.
