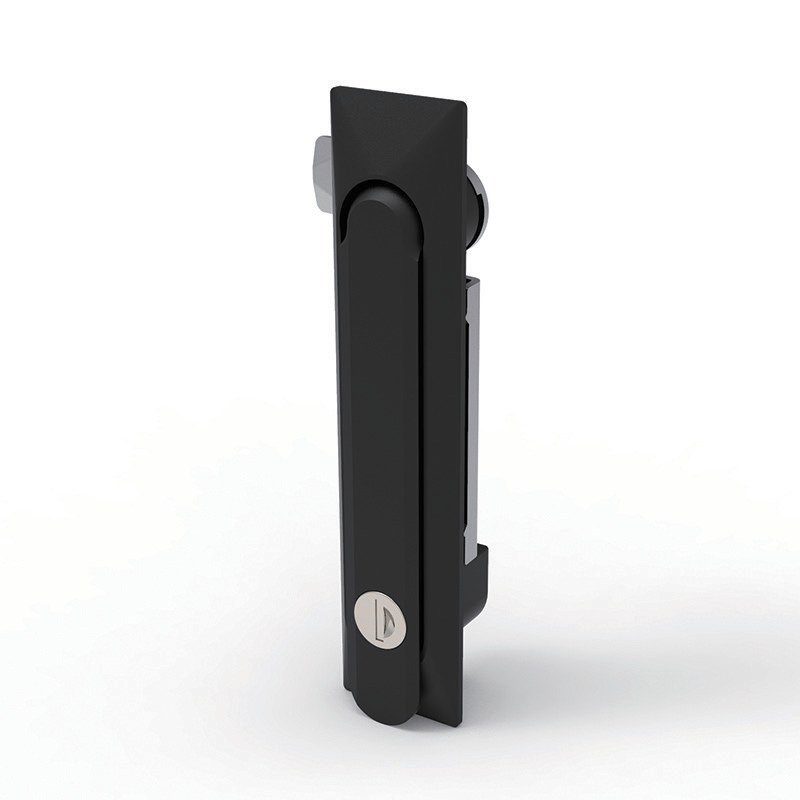

The MP861-2 is a lift up swing handle lock for industrial cabinets. The handle lies flush and flat when locked; lifting it upward releases the drive, and a turn rotates the cam through 90° to open the door.
The zinc alloy housing is finished in black powder coating, with a steel support and cam that are galvanized for corrosion protection. A K14 keyed insert secures the handle in the flush position, and the lock is rod-latch ready (RL) for multi-point latching.
Rated IP54, with a slim 36 × 160 mm face and 22.5 mm depth, the MP861-2 fits distribution cabinets, telecom enclosures and control panels. Dimension drawings and cut-out templates are provided below.
Variants:
- MP861-2 — with insert, lift-up handle
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP861-2 | with insert, lift-up handle | Zinc alloy housing, steel support and cam, galvanized steel support and cam | Powder coating (black) | K14 |

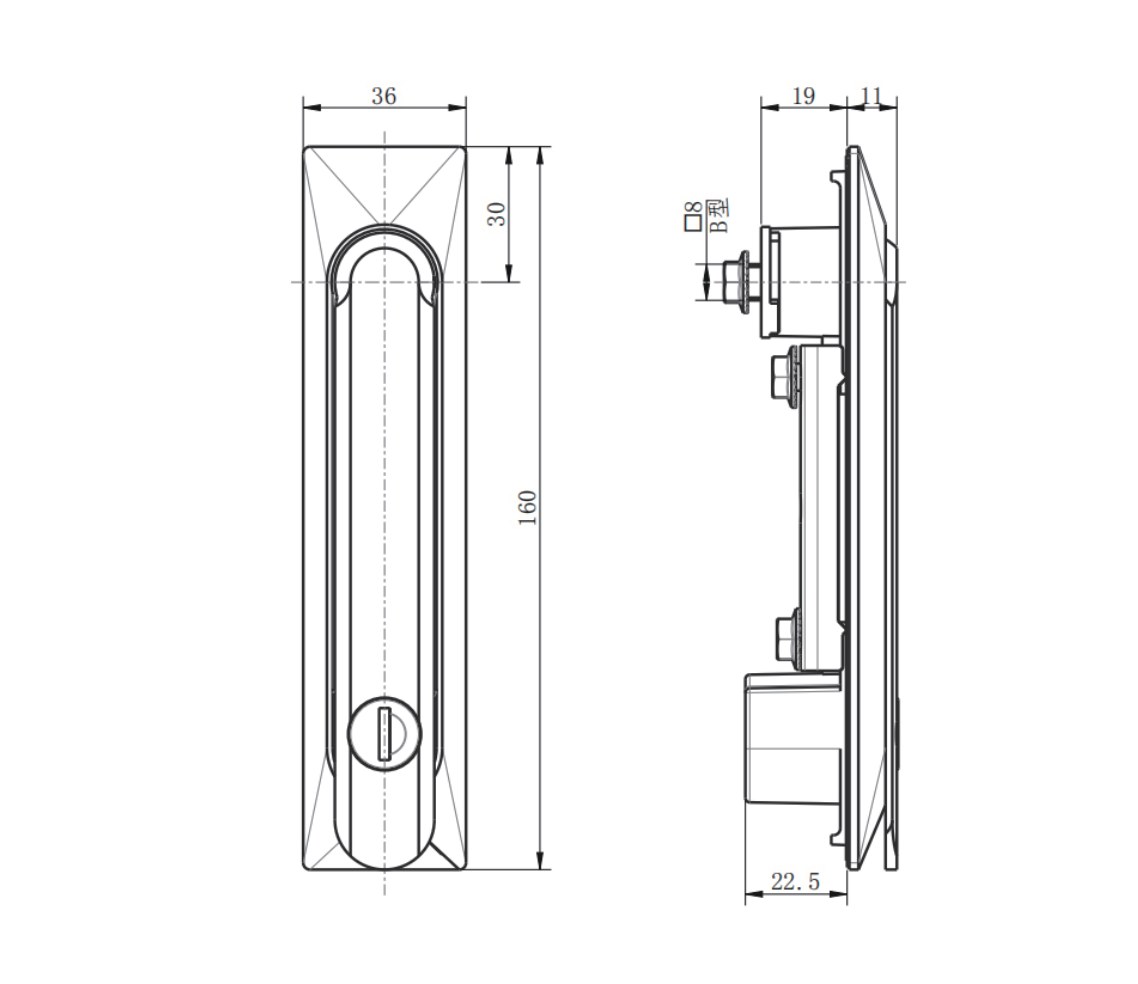

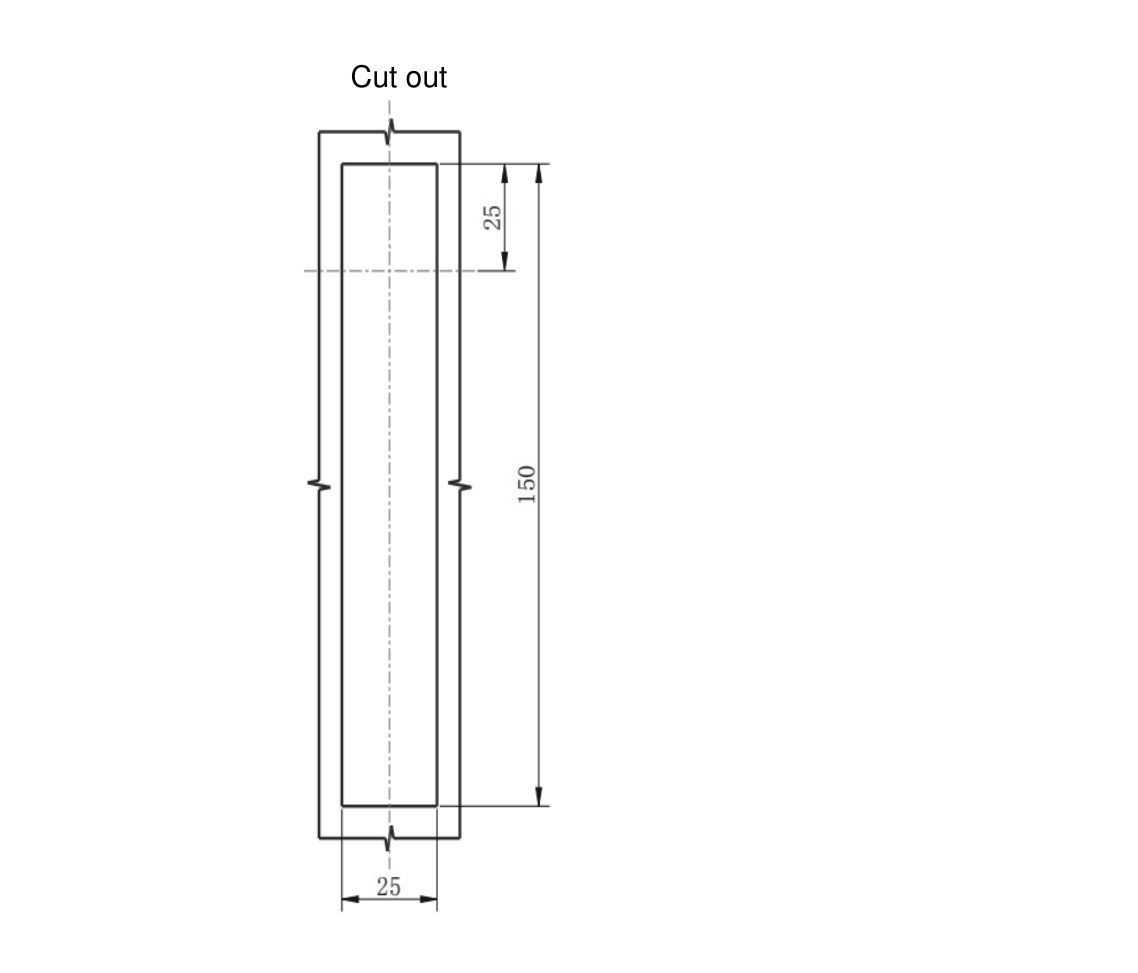

Dimension Drawing & Cut-out
FAQ
Q: How does the MP861-2 open?
A: Lift the handle upward to release it, then turn; the cam rotates 90° to open the door.
Q: What key does it use?
A: The MP861-2 uses a K14 keyed insert.
Q: What is the IP rating?
A: IP54, dust protected and splash resistant.
Q: Can it drive latching rods?
A: Yes, it is rod-latch ready (RL) for multi-point latching on taller doors.
Q: What finishes are available?
A: Black powder coating is standard; other finishes are available on request.
