MP864-4 MP864-4G IP65 Waterproof Swing Handle Lock with Adjustable Grip
MP864-4 series IP65 waterproof swing handle lock for outdoor and harsh-environment cabinets. Zinc alloy housing in black powder coating, TC03-5 insert, lift-up handle with 90° cam, H dimension adjustable via washer. The MP864-4G variant adds a padlock eye.
The MP864-4 series is an IP65 waterproof swing handle lock built for enclosures exposed to dust and water, such as outdoor telecom cabinets, energy storage systems and washdown areas. The sealed lift-up handle keeps the mechanism protected to IP65.
Lifting the handle upward drives the cam through 90° to open. The grip height (H dimension) is set with an adjustable washer, so one lock covers a range of door and gasket thicknesses. The zinc alloy housing is black powder coated, with a galvanized steel support and cam, and a TC03-5 insert.

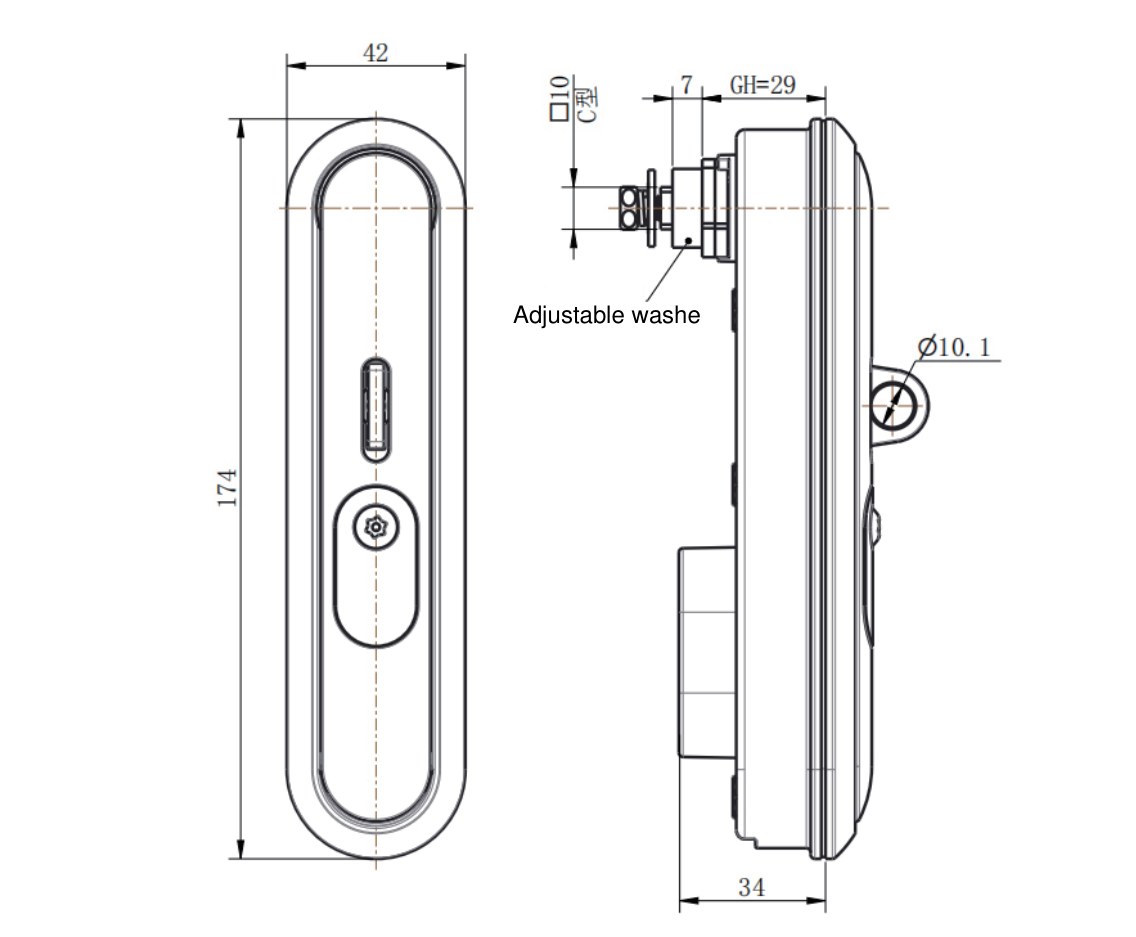

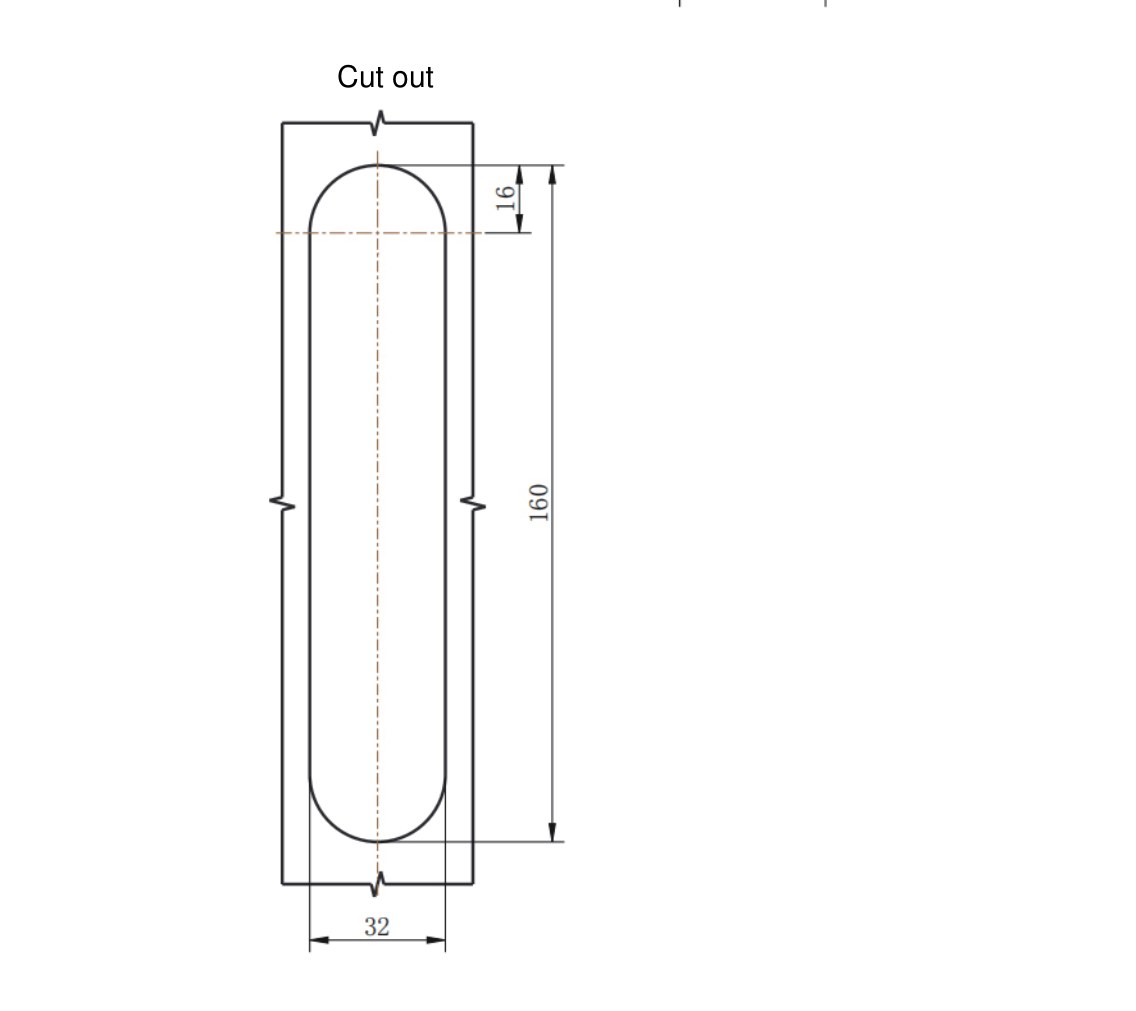

For extra security, the MP864-4G variant adds a Ø10.1 mm padlock eye. Face size is 42 × 174 mm and the cut-out is 32 × 160 mm, as shown in the drawings below.
Variants:

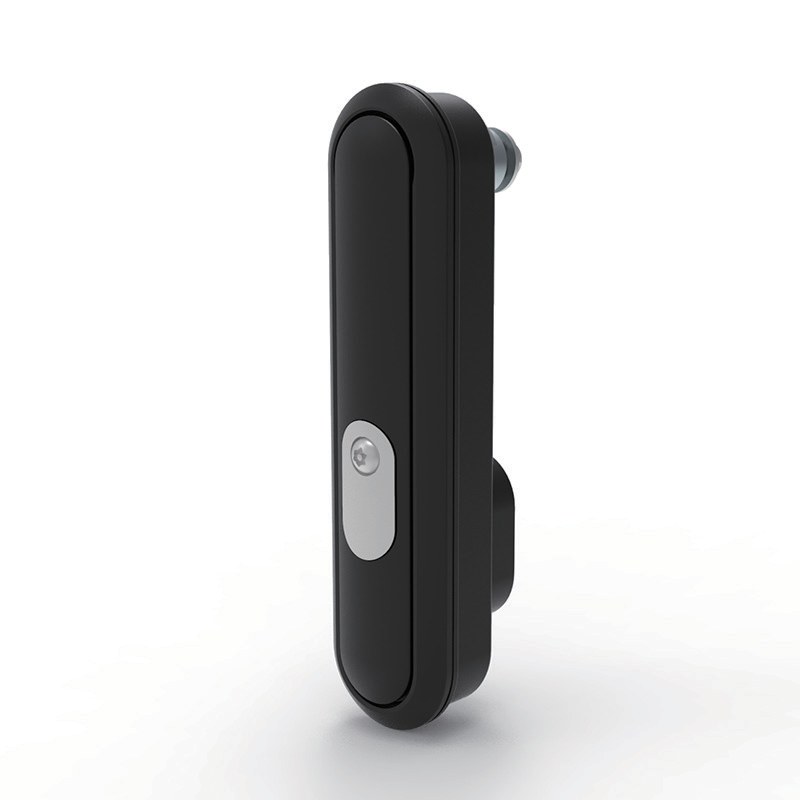

- MP864-4 — without padlock

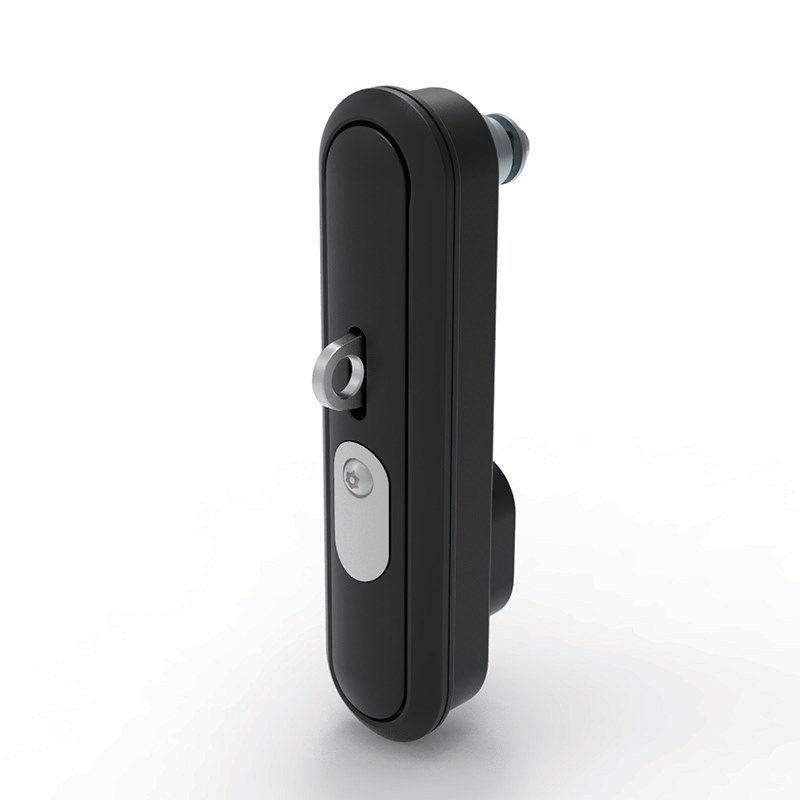

- MP864-4G — with padlock eye Ø10.1 mm
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP864-4 | without padlock | Zinc alloy housing, steel support and cam, galvanized steel support and cam | Powder coating (black) | Insert TC03-5 |
| MP864-4G | with padlock eye Ø10.1 mm | Zinc alloy housing, steel support and cam, galvanized steel support and cam | Powder coating (black) | Insert TC03-5 |
Dimension Drawing & Cut-out
FAQ
Q: What does IP65 mean for the MP864-4?
A: IP65 means the lock is dust-tight and protected against water jets, suitable for outdoor and harsh-environment cabinets.
Q: What is the difference between MP864-4 and MP864-4G?
A: The MP864-4G adds a Ø10.1 mm padlock eye for a user-supplied padlock; the MP864-4 has no padlock provision.
Q: How is the grip height adjusted?
A: The H dimension is adjusted with the adjustable washer supplied, to match door and gasket thickness.
Q: What insert does it use?
A: The series uses a TC03-5 insert.
Q: Where is the MP864-4 typically used?
A: Outdoor telecom cabinets, energy storage cabinets and other enclosures that need IP65 protection.
