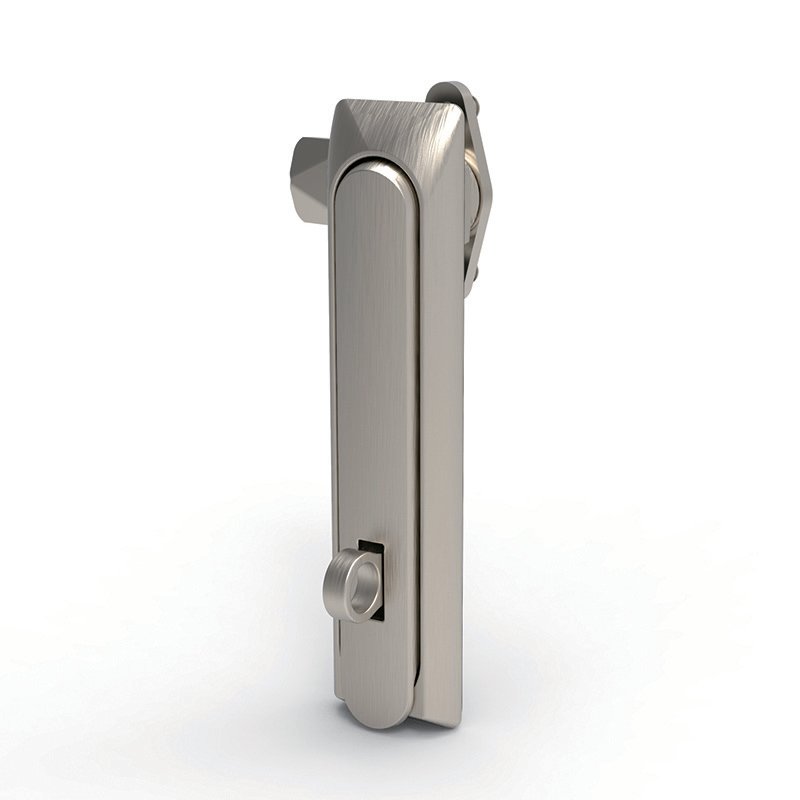

The MP860-3G is an IP65 stainless steel swing handle lock built for outdoor cabinets, telecom enclosures and washdown environments. The full SUS304 stainless steel body with brushed polishing resists rust and corrosion, and the IP65 rating protects against dust ingress and water jets.
To open, the handle is lifted upward and drives the cam through a 90° rotation. The cam length is L=45 mm and the grip height is GH=18 mm. A Ø10.8 mm padlock eye at the bottom of the handle accepts a standard padlock for lockout or shared-access applications.

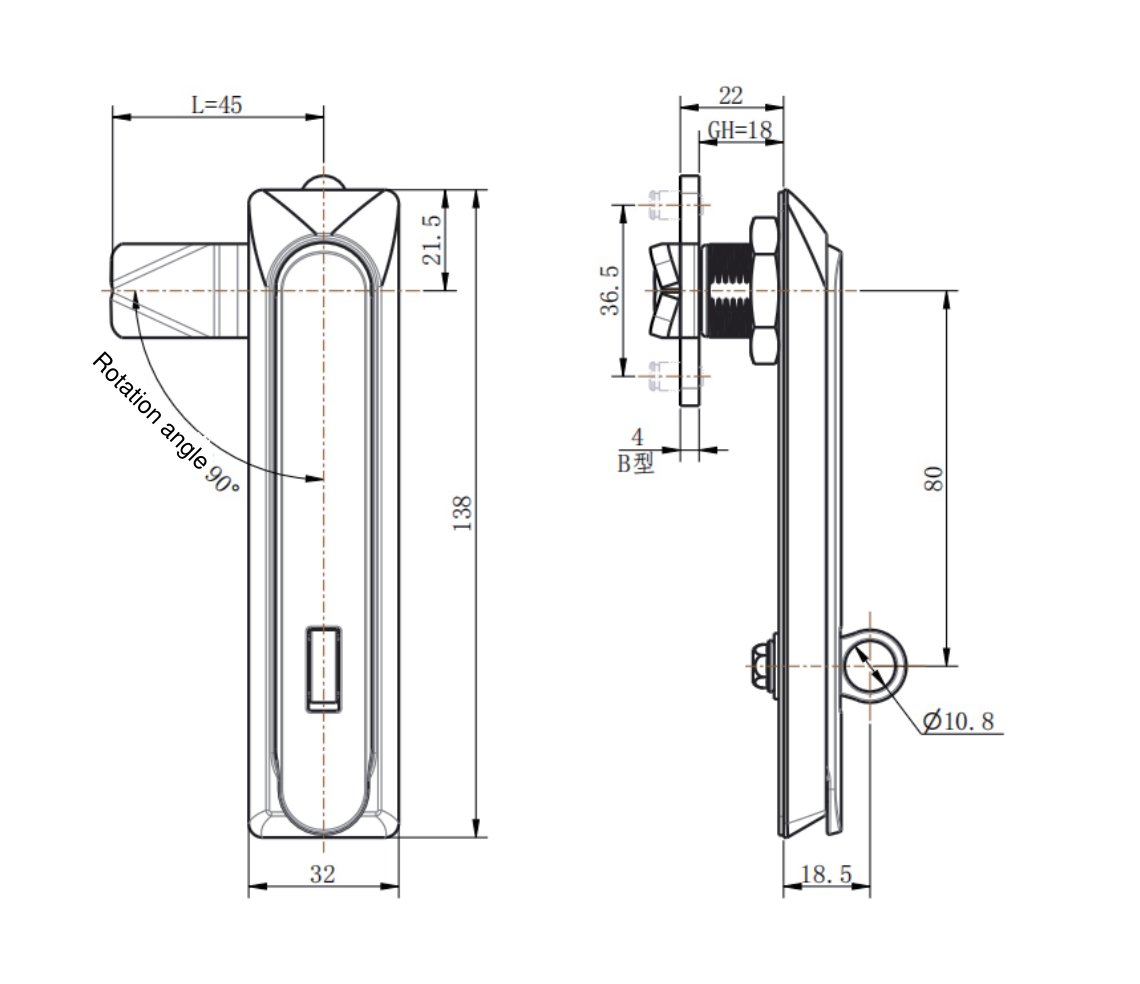

The front face measures 138 × 32 mm. Dimension drawings and the cut-out template are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP860-3G | lift-up swing handle lock with padlock eye | SUS304 stainless steel | Brushed polishing | Padlock eye Ø10.8 (padlock not supplied) |
Dimension Drawing & Cut-out
FAQ
Q: What does IP65 mean on the MP860-3G?
A: IP65 means the lock is dust-tight and protected against water jets, suitable for outdoor and washdown cabinets.
Q: How does the MP860-3G open?
A: Lift the handle upward; it drives the cam through a 90° rotation to open the door.
Q: Is the padlock included?
A: No. The handle has a Ø10.8 mm padlock eye; the padlock is supplied by the user.
Q: What is the cut-out size?

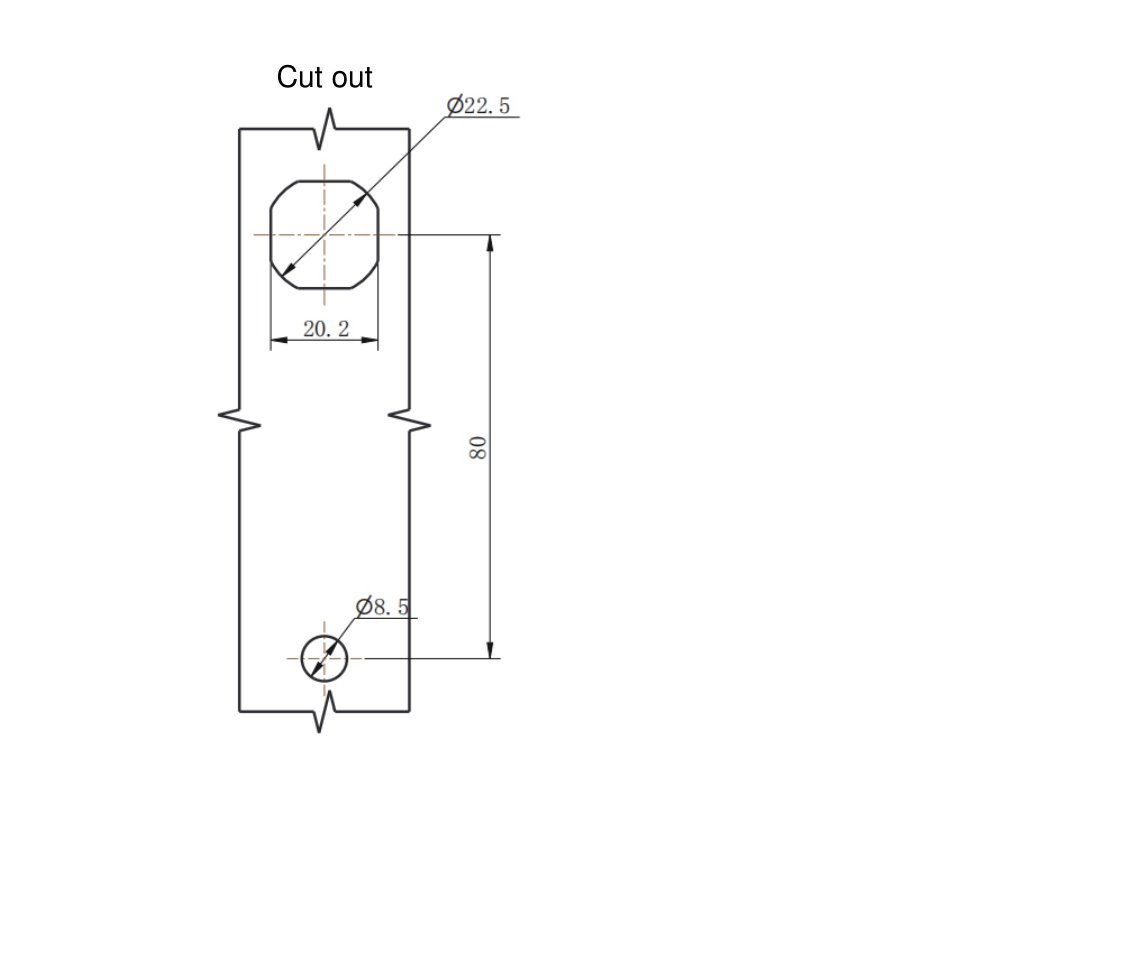

A: A Ø22.5 / 20.2 mm hole at the top and a Ø8.5 mm hole 80 mm below it, as shown in the cut-out drawing.
Q: What material is the MP860-3G made of?
A: Full SUS304 stainless steel with brushed polishing.
