MP818-1S MP818-2C Padlockable Swing Handle Lock, 3-Point Cabinet Lock with K04 Key
MP818 series padlockable swing handle lock for industrial cabinets. Zinc alloy housing, handle and insert with black powder coating and bright chrome plated insert, K04 key, 3-point latching (3PL) ready. Padlock versions available in left-hand and right-hand orientations.
The MP818 series is a padlockable swing handle lock for cabinets that need an extra level of access control. In addition to the K04 keyed insert, the handle can be secured with a padlock, making it suitable for lockout procedures and shared-access enclosures.
The lock is 3PL (three-point latching) ready: combined with rods it locks the door at the top, center and bottom. The zinc alloy housing, handle and insert are finished in black powder coating with a bright chrome plated insert; the button and cam are steel, and the cam is galvanized.
Two face styles are available: MP818-1S with a 32 × 142 mm rectangular face and MP818-2C with a 40 × 150 mm rounded face. Padlock versions are supplied in left-hand and right-hand orientations. Dimension drawings and cut-out templates are provided below.
Variants:

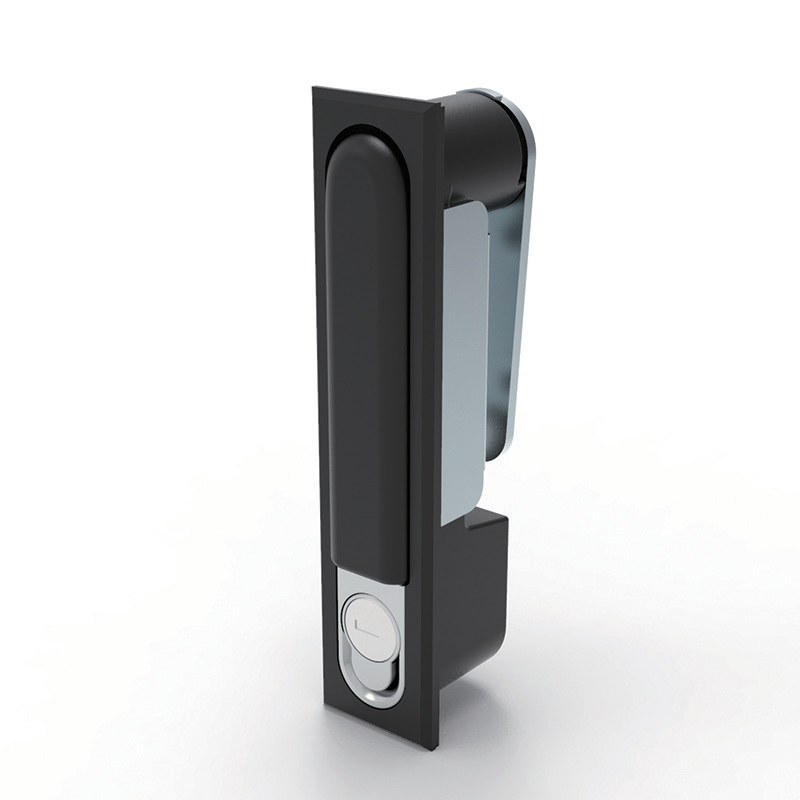

- MP818-1S — with insert, rectangular face 32 × 142 mm

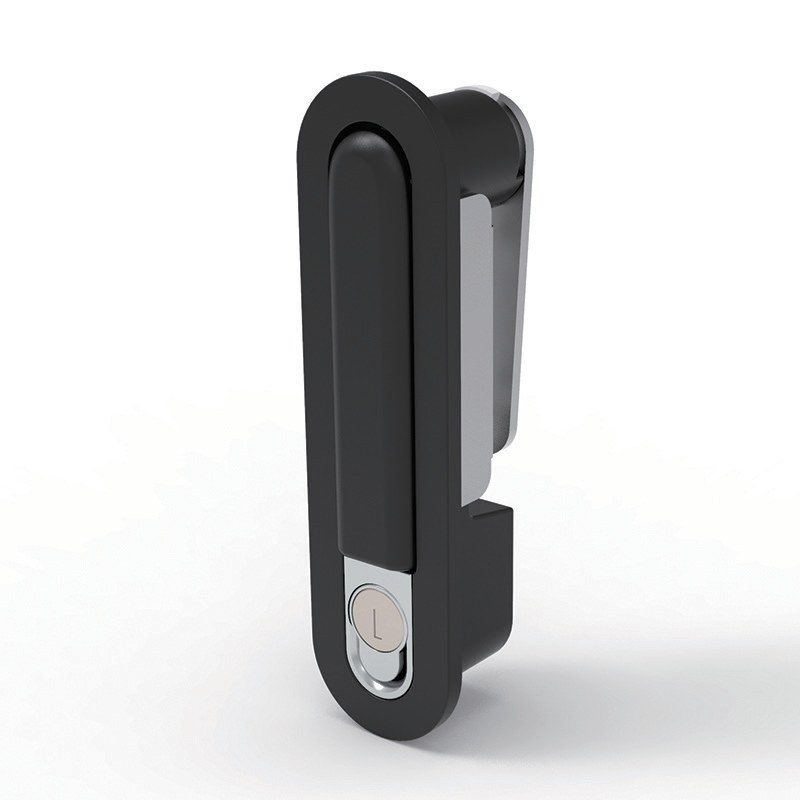

- MP818-2C — with insert, rounded face 40 × 150 mm
- MP818-1S/2C — without insert
- MP818-1S/2C — without insert, with padlock (LH/RH)
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP818-1S | with insert, rectangular face 32 × 142 mm | Zinc alloy housing, handle and insert, steel button and cam, galvanized steel cam | Powder coating (black), bright chrome plated insert | K04 |
| MP818-2C | with insert, rounded face 40 × 150 mm | Zinc alloy housing, handle and insert, steel button and cam, galvanized steel cam | Powder coating (black), bright chrome plated insert | K04 |
| MP818-1S/2C | without insert | Zinc alloy housing, handle and insert, steel button and cam, galvanized steel cam | Powder coating (black), bright chrome plated insert | No cylinder insert |
| MP818-1S/2C | without insert, with padlock (LH/RH) | Zinc alloy housing, handle and insert, steel button and cam, galvanized steel cam | Powder coating (black), bright chrome plated insert | Padlock hasp |

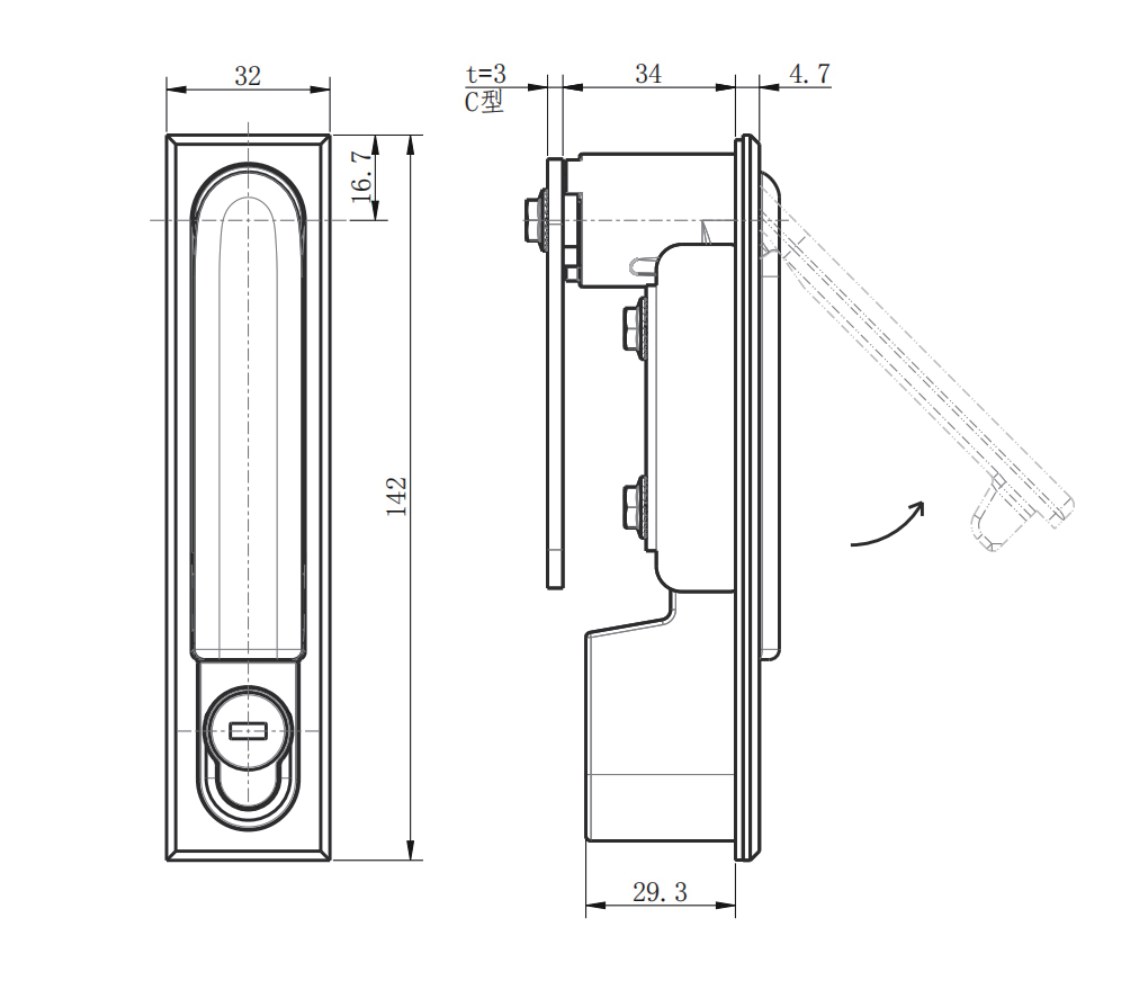

Dimension Drawing & Cut-out
FAQ
Q: Is the padlock included with the MP818?
A: No. The padlock versions provide a hasp that accepts a standard padlock; the padlock itself is supplied by the user.
Q: What is the difference between the LH and RH padlock versions?
A: LH and RH refer to the hand of the padlock hasp. Choose the version that matches your door swing and hinge side.
Q: What does 3PL mean on the MP818?
A: 3PL stands for three-point latching: the lock can drive rods that secure the door at the top, center and bottom. Rods are available on request.
Q: What key does the MP818 use?
A: The insert versions use a K04 key.

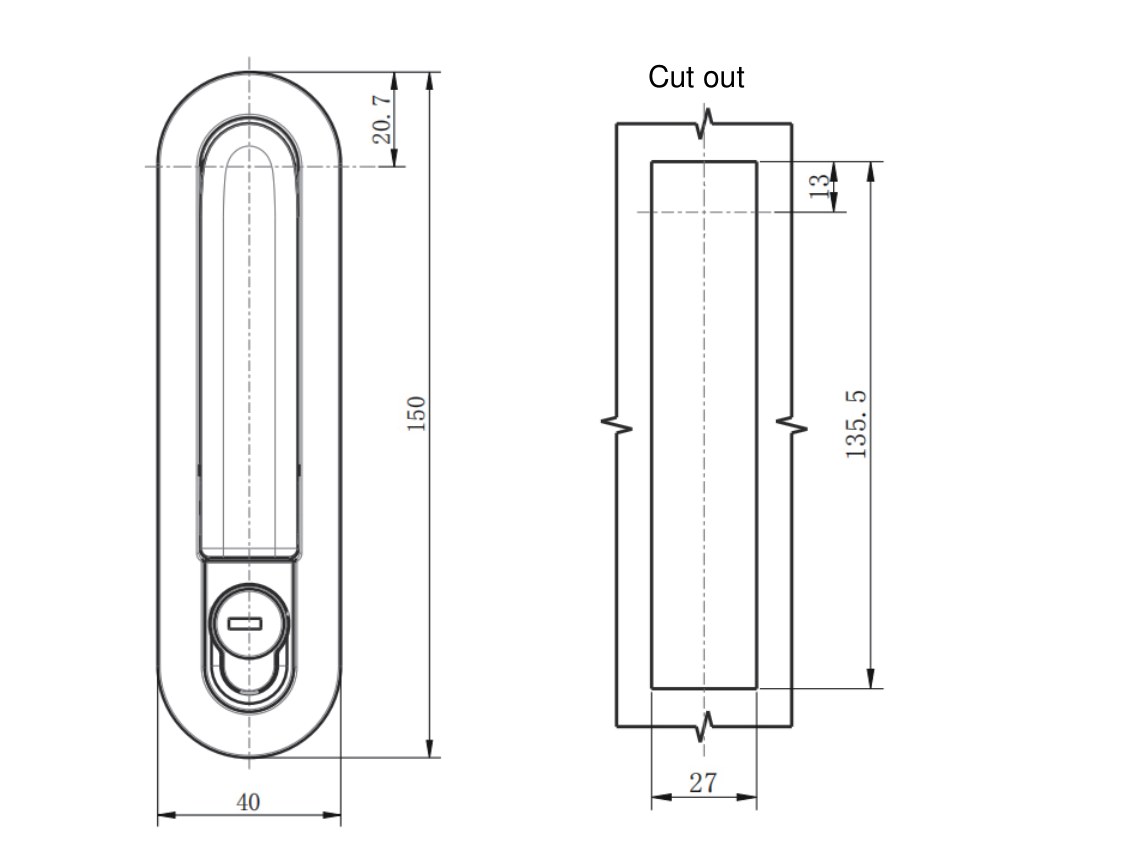

Q: What is the cut-out size?
A: 27 × 135.5 mm, as shown in the cut-out drawing below.
