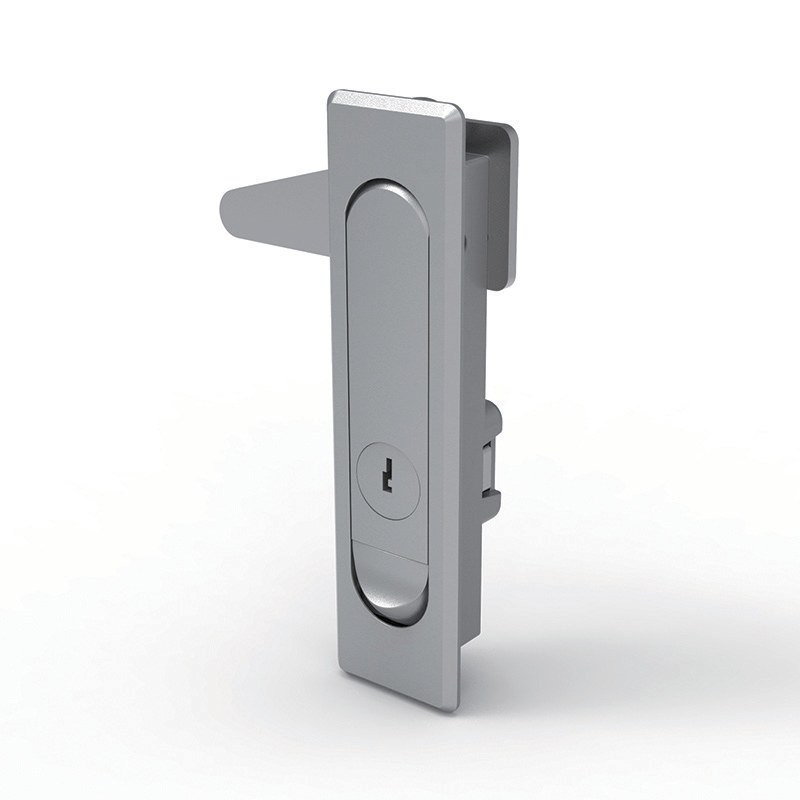

MP730-1 Nano Coated Swing Handle Lock with Push Button, K0200 Key Cabinet Latch
MP730-1 nano coated swing handle lock for industrial cabinets. Zinc alloy housing, handle and button with a durable nanometer paint finish, K0200 key, galvanized steel cam, rod-latch ready. Push the button to pop the handle for quick opening.
The MP730-1 is a nano coated swing handle lock built for industrial enclosures that need a tough, easy-clean surface. The nanometer paint finish on the zinc alloy housing and handle gives a smooth, dense coating with improved scratch and corrosion resistance compared with conventional paint.
A push button releases the swing handle for quick opening, and a K0200 keyed insert locks it flush again. The galvanized steel cam is rod-latch ready (RL), so the lock can drive multi-point latching rods on taller cabinet doors.
With its compact 117 × 30 mm body and 45° handle rotation, the MP730-1 suits distribution cabinets, telecom enclosures and control panels. Dimension drawings and cut-out templates are provided below.
Variants:
- MP730-1 — with insert, push button
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP730-1 | with insert, push button | Zinc alloy housing, handle and button, steel screw, galvanized steel cam | Nanometer painting | K0200 |

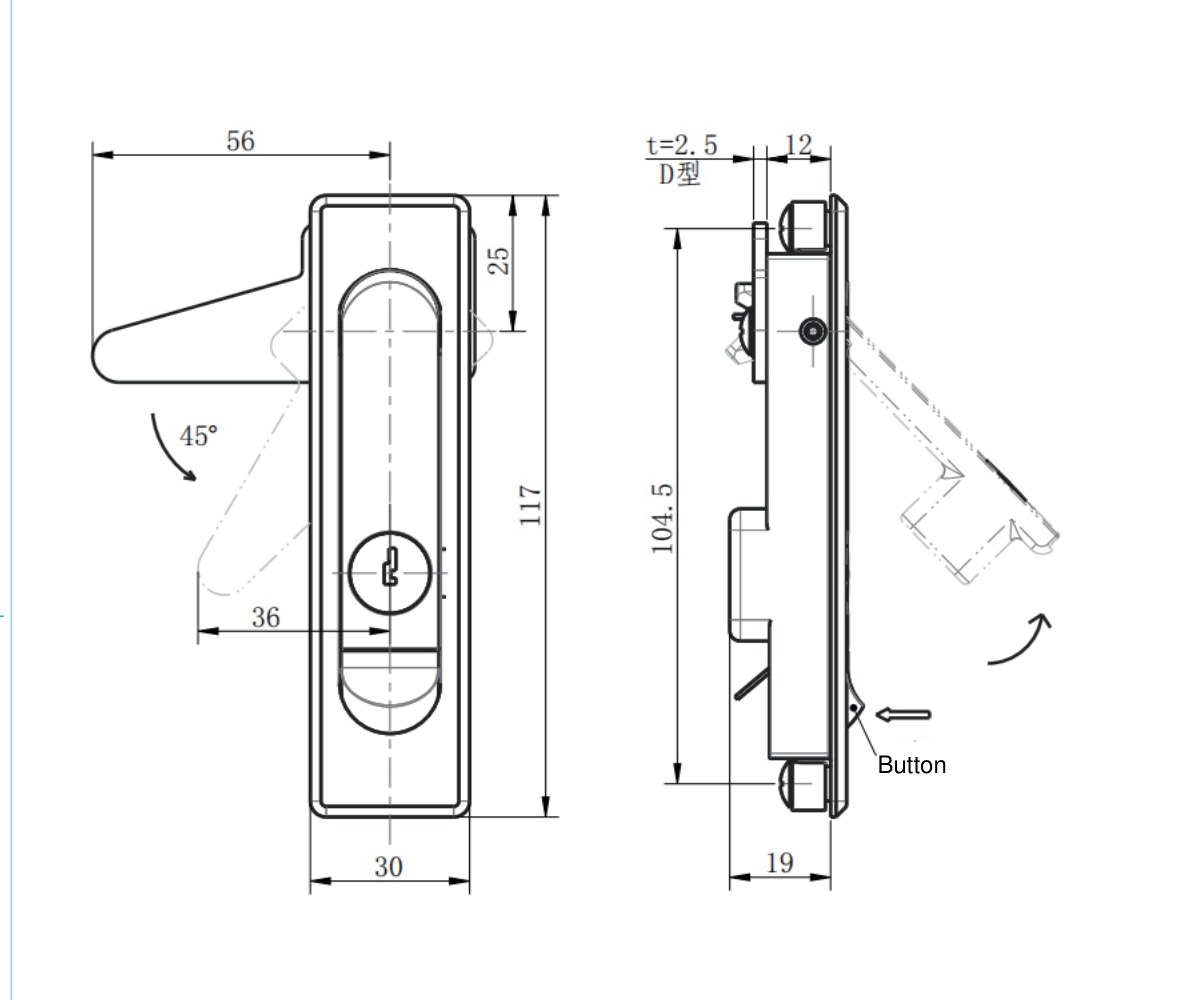

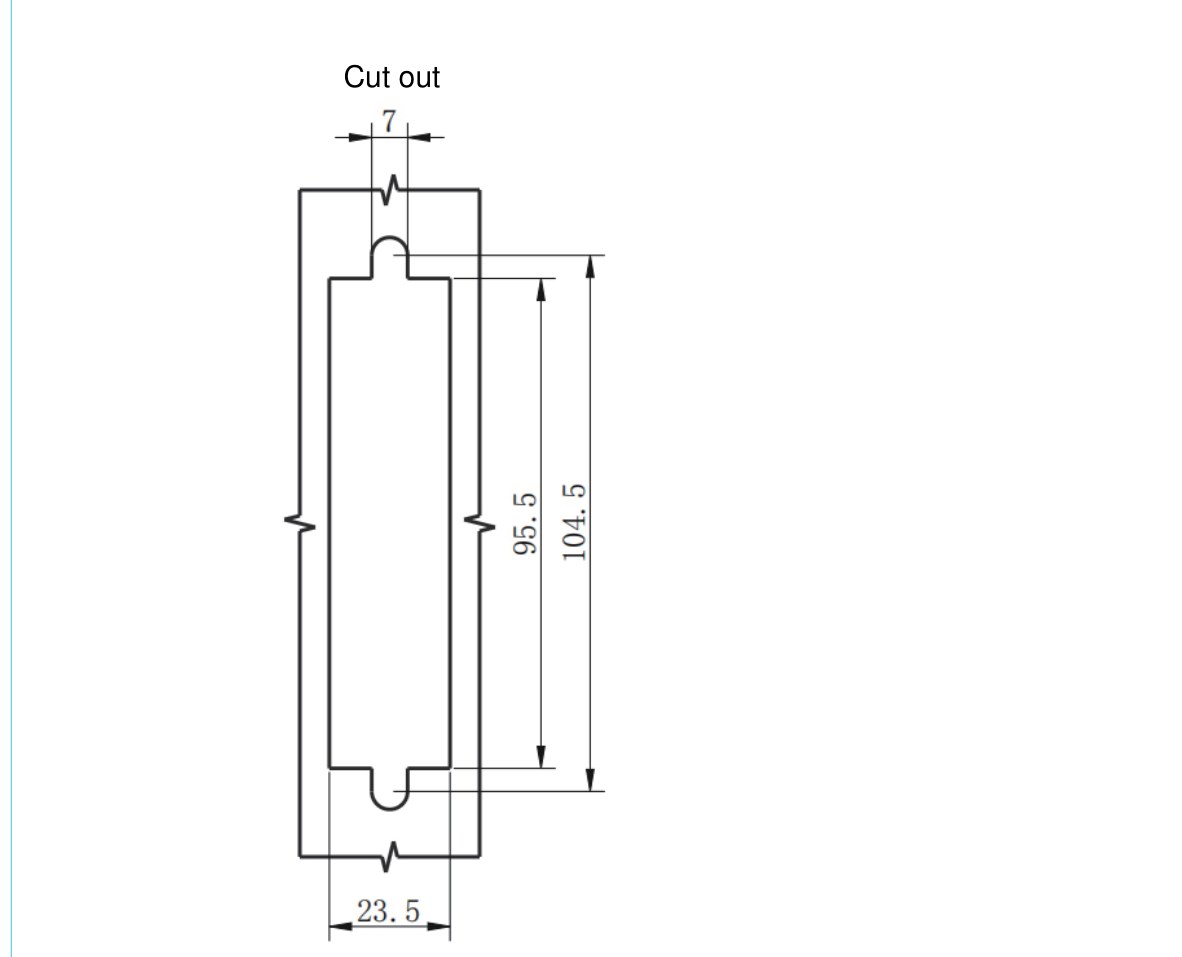

Dimension Drawing & Cut-out
FAQ
Q: What key does the MP730-1 use?
A: The MP730-1 uses a K0200 keyed insert.
Q: What are the benefits of the nanometer paint finish?
A: The nano coating forms a smooth, dense layer with improved scratch and corrosion resistance, and it is easy to clean, ideal for cabinets in dusty or humid sites.
Q: Can the MP730-1 drive multi-point rods?
A: Yes. It is rod-latch ready (RL) and can be combined with latching rods for multi-point locking on taller doors.
Q: What panel thickness does it fit?
A: It is supplied with a D-type cam for a 2.5 mm panel as standard; other cams are available on request.
Q: Do you offer OEM or custom versions?
A: Yes. Reaking welcomes OEM and custom orders, including alternative keys, cams and finishes.
