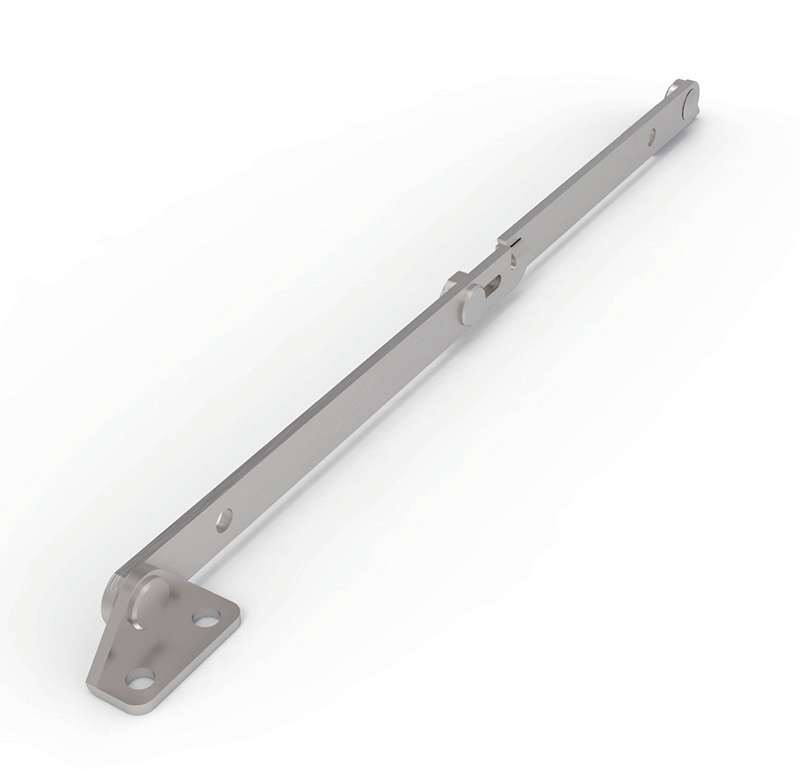

TX91-1-Z long SUS304 cabinet friction stay door limiter Reaking

TX91-1-Z Long Cabinet Friction Stay, Electrical Enclosure Door Limiter

加入心愿单
Category: Tags: , , , , , Brand:

TX91-1-Z Long Cabinet Friction Stay, Electrical Enclosure Door Limiter

Product Overview

TX91-1-Z friction stay is a long arm door limiter designed for large electrical cabinets, telecom and energy storage enclosures. It features built-in stopper to control maximum door opening angle and hold heavy cabinet doors securely during maintenance.

Two material series with full LH/RH selection:

  • Steel (nickel plated): TX91-1-Z (LH), TX91-1-Y (RH)
  • SUS304 Stainless Steel: TX91-1B-Z (LH), TX91-1B-Y (RH) Long 290mm arm length fits tall and heavy cabinet doors. Pre-drilled mounting holes allow fast installation.

Specifications

  • Material: Steel / SUS304 Stainless Steel
  • Surface Finish: Nickel plating
  • Arm Length: 290mm
  • Types: LH / RH
  • Feature: Built-in stopper, long support arm for heavy cabinet doors
  • Application: Large electrical cabinet, telecom enclosure, energy storage cabinet
  • Mounting: Pre-punched mounting holes for easy assembly

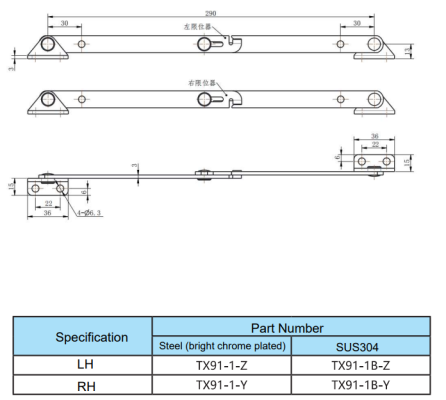

TX91-1-Z spec sheet, steel nickel plated and SUS304 cabinet door stay

Application

TX91-1 series long stay arm is widely used on tall power distribution cabinets, telecom equipment cabinets and battery storage enclosures. It prevents cabinet door over-swinging, protects internal electrical components and keeps operators safe during inspection and wiring work.

FAQ

Q: What is TX91-1-Z friction stay used for?
A: TX91-1-Z long friction stay is a door limiter for large electrical, telecom and energy storage cabinets, used to restrict opening angle and support heavy cabinet doors.

Q: What material options are available for TX91-1 series?
A: Two material options: nickel plated steel and SUS304 stainless steel.

Q: What is the difference between TX91-1-Z and TX91-1B-Z?
A: TX91-1-Z is nickel plated steel LH version; TX91-1B-Z is SUS304 stainless steel LH version. TX91-1-Y and TX91-1B-Y are RH counterparts.

Q: What is the advantage of TX91-1 long arm friction stay?
A: The 290mm long arm offers stable support for tall and heavy cabinet doors, with built-in stopper to limit maximum opening angle.

{
