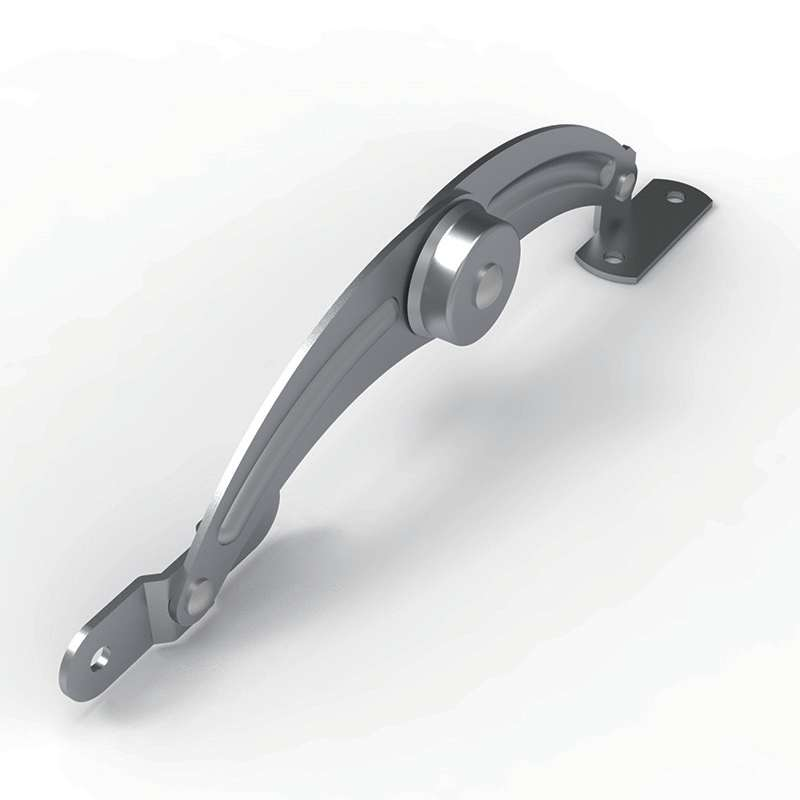

TX90-2-Z curved bright chrome steel cabinet friction stay door limiter Reaking

TX90-2-Z Cabinet Friction Stay, Electrical Enclosure Door Limiter

加入心愿单
Category: Tags: , , , ,

TX90-2-Z Cabinet Friction Stay, Electrical Enclosure Door Limiter

Product Overview

TX90-2-Z friction stay is a curved steel door limiter for electrical cabinets and telecom equipment enclosures. It restricts cabinet door opening angle and holds the door securely during maintenance work.

Fabricated from steel with bright chrome plated finish. Two variants available:

  • TX90-2-Z: LH (Left Hand)
  • TX90-2-Y: RH (Right Hand) The curved arm design fits compact cabinet installation space. Pre-drilled mounting holes enable fast and stable assembly.

Specifications

  • Material: Carbon Steel
  • Surface Finish: Bright Chrome Plated
  • Types: LH (TX90-2-Z), RH (TX90-2-Y)
  • Feature: Curved arm structure, limit cabinet door opening range
  • Application: Electrical cabinet, telecom enclosure, control cabinet
  • Mounting: Pre-punched holes for simple installation

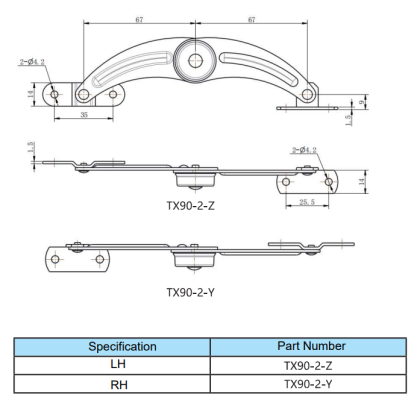

TX90-2-Z & TX90-2-Y friction stay dimension drawing, LH RH part number table

Application

TX90-2 series stay arm is widely applied in power distribution cabinets and communication control cabinets. It prevents over-opening of cabinet doors, protects internal electrical components and improves operator safety during inspection and wiring.

FAQ

Q: What is TX90-2-Z friction stay used for?
A: TX90-2-Z is curved cabinet door limiter for electrical and telecom enclosures, to limit door opening angle and hold door open steadily.

Q: What material and finish does TX90-2 series adopt?
A: It is made of steel with bright chrome plated surface for corrosion resistance and clean appearance.

Q: What is the difference between TX90-2-Z and TX90-2-Y?
A: TX90-2-Z is left-hand (LH) model; TX90-2-Y is right-hand (RH) version for opposite side cabinet installation.

Q: What is the advantage of curved arm design of TX90-2 stay?
A: Curved arm saves cabinet inner space, suitable for compact electrical cabinet installation scenarios.

{
