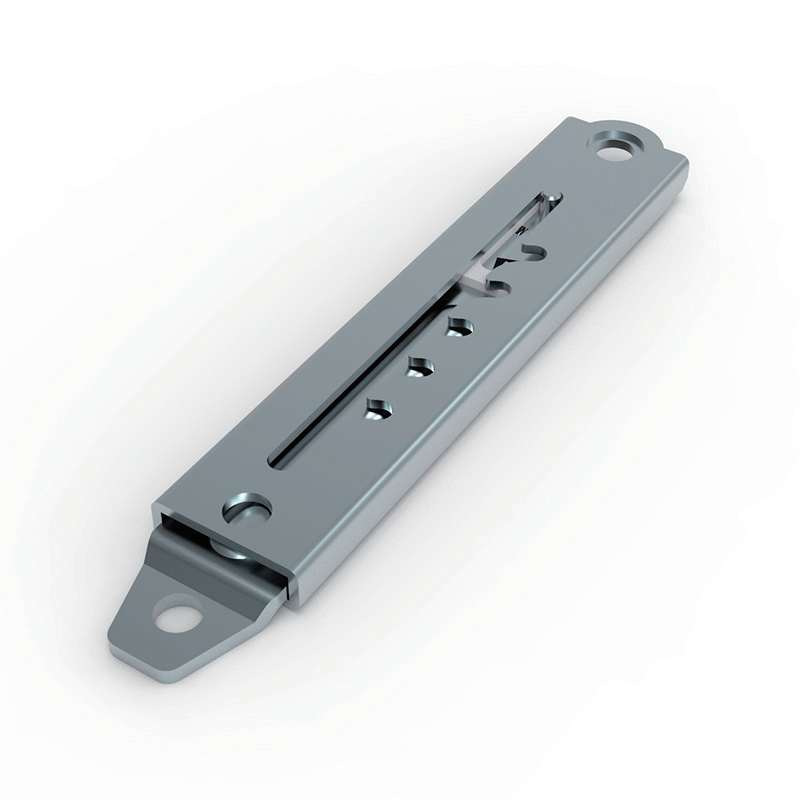

TX101-1 Adjustable Friction Stay is a multi-point locking support stay, widely used for electrical cabinets, control enclosures, machinery panels, RV compartment doors and industrial equipment covers.
Made of solid steel with white zinc plated surface treatment, it delivers good corrosion resistance for indoor & mild outdoor environments.

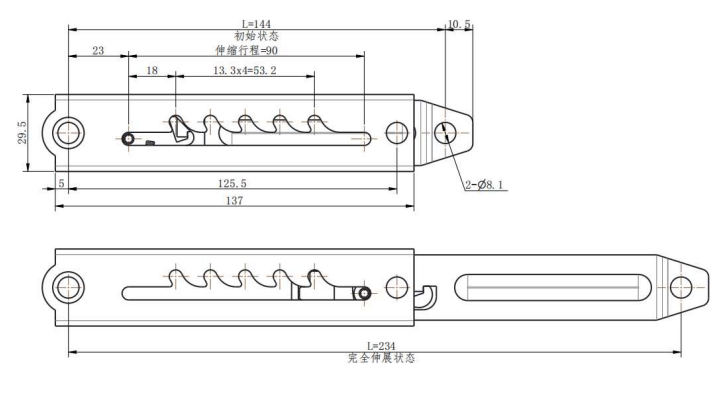

Total stroke: 90mm. Retracted length:144mm; Fully extended length:234mm. It locks securely at multiple preset positions to keep the door open stably, no extra gas strut required.
Mounting holes: 2-Φ8.1, easy bolt-on installation. Compact flat design saves cabinet internal space.
FAQ
Q1: What is TX101-1 friction stay used for?
A: TX101-1 adjustable friction stay holds cabinet, electrical enclosure, RV and machinery access panels at multiple open angles.
Q2: What material is TX101-1 stay?
A: It is constructed from steel with white zinc plated finish for rust resistance.
Q3: What is the stroke of TX101-1?
A: The working stroke is 90mm, retracted length 144mm, fully extended 234mm.
Q4: Is it easy to install?
A: Yes. Pre-drilled mounting holes (2-Φ8.1) for fast bolt mounting.
{
“@context”: “https://schema.org”,
“@type”: “FAQPage”,
“mainEntity”: [
{
“@type”: “Question”,
“name”: “What is TX101-1 friction stay used for?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “TX101-1 adjustable friction stay holds cabinet, electrical enclosure, RV and machinery access panels at multiple open angles.”
}
},
{
“@type”: “Question”,
“name”: “What material is TX101-1 stay?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “It is constructed from steel with white zinc plated finish for rust resistance.”
}
},
{
“@type”: “Question”,
“name”: “What is the stroke of TX101-1?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “The working stroke is 90mm, retracted length 144mm, fully extended 234mm.”
}
},
{
“@type”: “Question”,
“name”: “Is TX101-1 friction stay easy to install?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Yes. Pre-drilled mounting holes (2-Φ8.1) for fast bolt mounting.”
}
}
]
}
Reaking is a professional manufacturer of industrial cabinet hardware based in Shengzhou, Zhejiang, China. We supply TX101-1 adjustable friction stays and other enclosure hardware for global buyers from Europe, North America, Middle East and Southeast Asia. OEM & custom service available.
