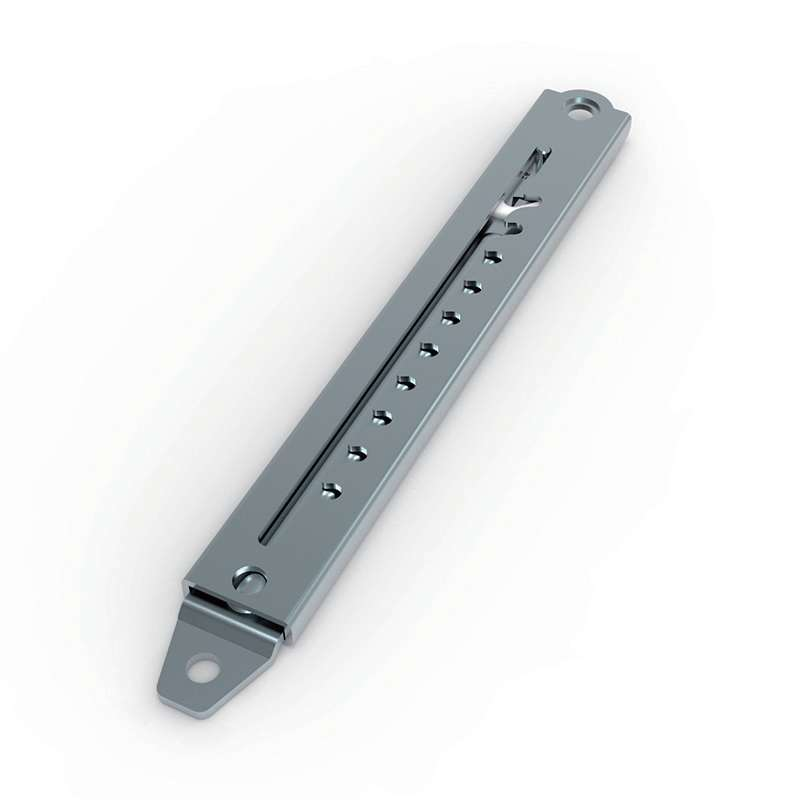

TX103-1 Adjustable Friction Stay is a heavy-duty multi-position support stay widely used on electrical cabinets, control enclosures, industrial machinery access panels and equipment compartment doors. Fabricated from solid steel and finished with white zinc plating, this stay provides reliable anti-corrosion performance for indoor and lightly corrosive working environments. Overall length: 355mm. The hinge mounting holes are Φ6.3 for bolt installation. Its locking mechanism can fix the door steadily at different opening positions, removing the need for separate gas springs. Compact folding structure saves internal cabinet space and ensures simple, fast field assembly.
Key Features
- Model: TX103-1
- Material: Steel
- Finish: White Zinc Plated
- Overall Length: 355 mm
- Mounting hole diameter: Φ6.3
- Multi-position locking function
- Stable door support, easy bolt-on installation
- Application: Electrical cabinet, control enclosure, machinery access panel, industrial equipment cover
FAQ
Q1: What is TX103-1 friction stay used for?
A: TX103-1 adjustable friction stay supports and locks cabinet, electrical enclosure and machinery access panels at multiple open angles.
Q2: What material is TX103-1 stay?
A: It is made of steel with white zinc plated surface treatment for corrosion resistance.
Q3: What is the overall length of TX103-1?
A: The total length of TX103-1 friction stay is 355mm, mounting hole size Φ6.3.
Q4: Is TX103-1 friction stay easy to mount?
A: Yes. Pre-punched mounting holes (Φ6.3) for straightforward bolt installation.
{
