TX80-2-Z Cabinet Friction Stay, Electrical Enclosure Door Support Hinge
Product Overview

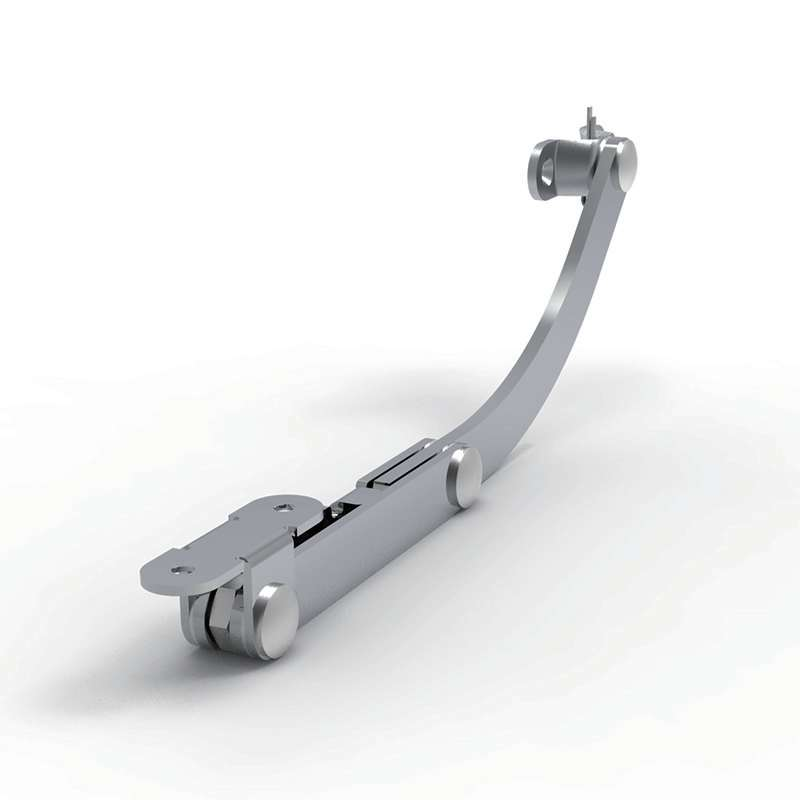

TX80-2-Z friction stay is an adjustable door support arm widely fitted on electrical cabinets, telecom enclosures and energy storage cabinet doors. It holds cabinet doors at fixed opening angles safely and stably.

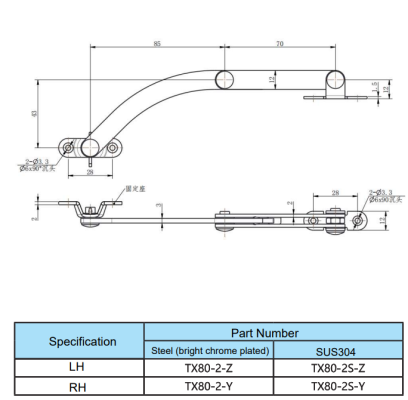

We provide two material versions: bright chrome plated steel and polished SUS304 stainless steel. Left-hand (LH) and right-hand (RH) models are available to match different cabinet installation requirements. Part Numbers:
- Steel (bright chrome plated): TX80-2-Z (LH), TX80-2-Y (RH)
- SUS304 (Polished): TX80-2S-Z (LH), TX80-2S-Y (RH)
Specifications
- Material: Steel / SUS304 Stainless Steel
- Surface Finish: Bright Chrome Plated (Steel) / Polished (SUS304)
- Type: LH (Left Hand), RH (Right Hand)
- Application: Electrical cabinet, telecom cabinet, energy storage enclosure, industrial cabinet door
- Feature: Adjustable, hold door open steadily, easy mounting
Application Scenarios
Our TX80-2-Z stay arm is commonly used for power distribution cabinets, communication equipment enclosures, battery energy storage cabinets and other industrial metal cabinets. It prevents sudden door swing during maintenance and inspection work.
Q: What is TX80-2-Z friction stay used for?
A: TX80-2-Z is cabinet door support stay for electrical, telecom and energy storage enclosures, used to hold cabinet doors at fixed opening positions.
Q: What material choices are available for TX80-2 series?
A: Two options: bright chrome plated steel and polished SUS304 stainless steel.
Q: What is the difference between TX80-2-Z and TX80-2-Y?
A: TX80-2-Z is left-hand (LH) version, TX80-2-Y is right-hand (RH) version for opposite cabinet installation. SUS304 versions are TX80-2S-Z (LH) and TX80-2S-Y (RH).
Q: Is TX80-2 friction stay suitable for outdoor cabinet?
A: SUS304 polished version works for outdoor environments with better anti-corrosion performance. Chrome steel version is recommended for indoor cabinets.
{
