MP718-3A Series Waterproof Swing Handle Cabinet Lock, IP54 Enclosure Latch with CH751 Key

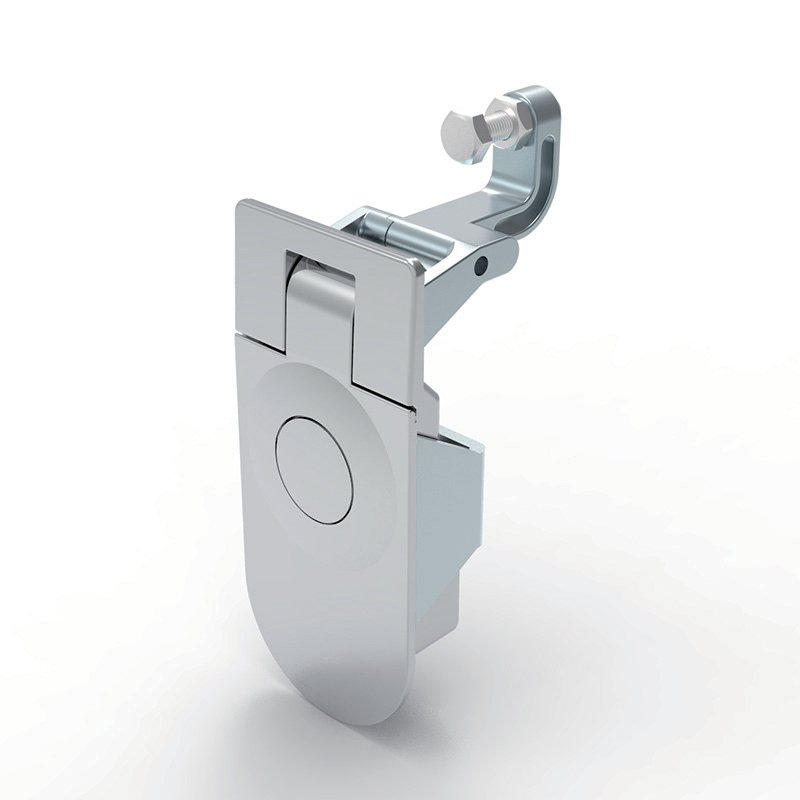

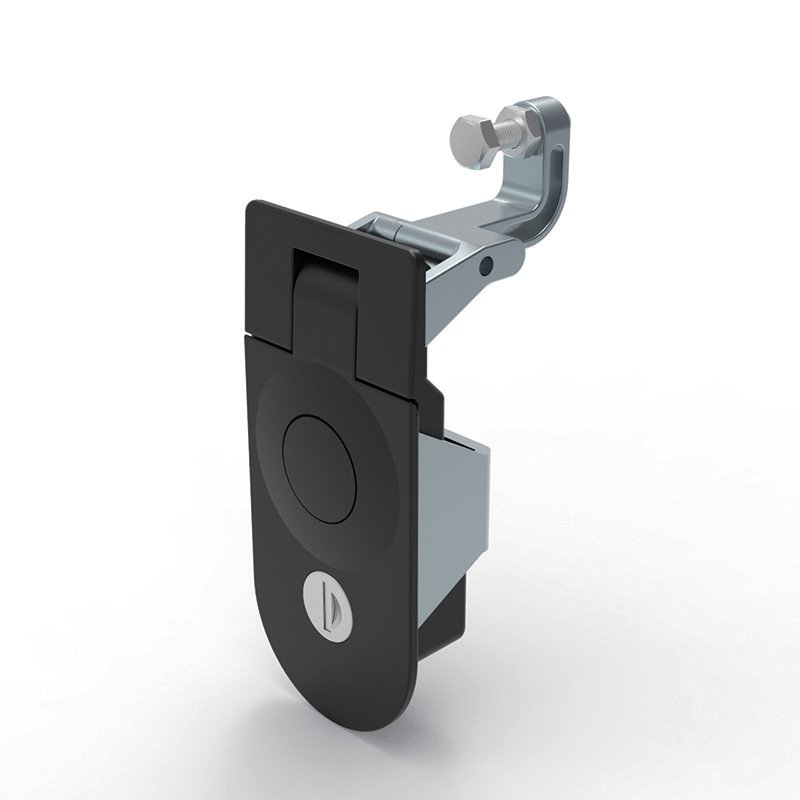

MP718-3A series waterproof swing handle cabinet lock, IP54 rated. Zinc alloy housing in black powder coat or bright chrome, steel button, stainless steel screws, quick-open design. MP718-3A with insert (CH751 key); MP718-3AB without insert.
The MP718-3A series is a waterproof swing handle cabinet lock designed for industrial enclosures exposed to moisture and outdoor conditions. Rated IP54 against dust and splashing water, it features a zinc alloy housing finished in black powder coating or bright chrome plating, a steel button and stainless steel screws for dependable corrosion resistance.
The quick-open push-button mechanism and adjustable screw distance control make installation and daily operation fast and ergonomic. Two variants are available: MP718-3A with insert (CH751 key) and MP718-3AB without insert for custom cylinder installation.
Typical applications include outdoor distribution cabinets, telecom enclosures, control panels and machinery cabinets. Dimension drawings and cut-out templates are provided below.
Variants:
- MP718-3A — with insert
- MP718-3AB — without insert
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP718-3A | with insert | Zinc alloy housing, steel button, stainless steel screw | Powder coating (black) / Bright chromeplated | CH751 |
| MP718-3AB | without insert | Zinc alloy housing, steel button, stainless steel screw | Powder coating (black) / Bright chromeplated | No cylinder insert |

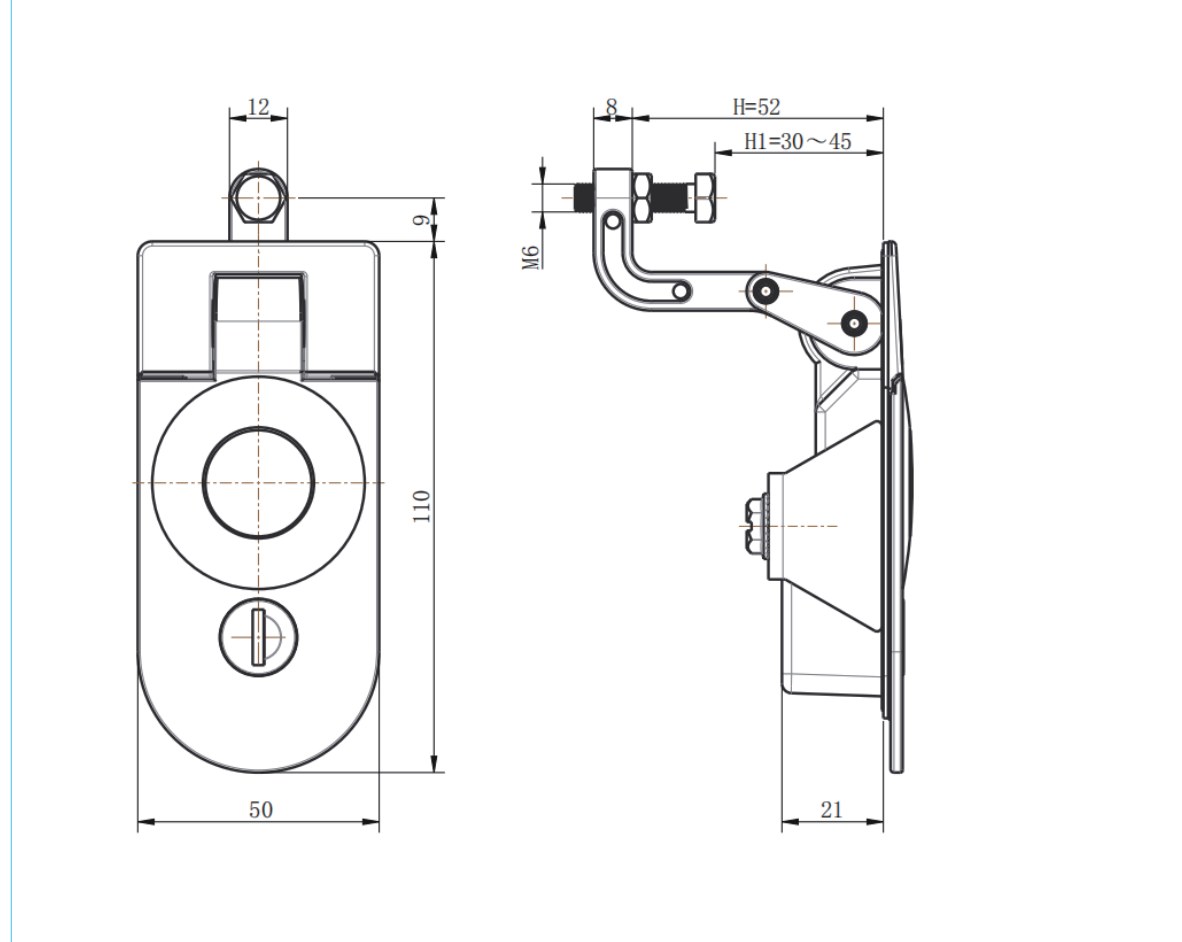

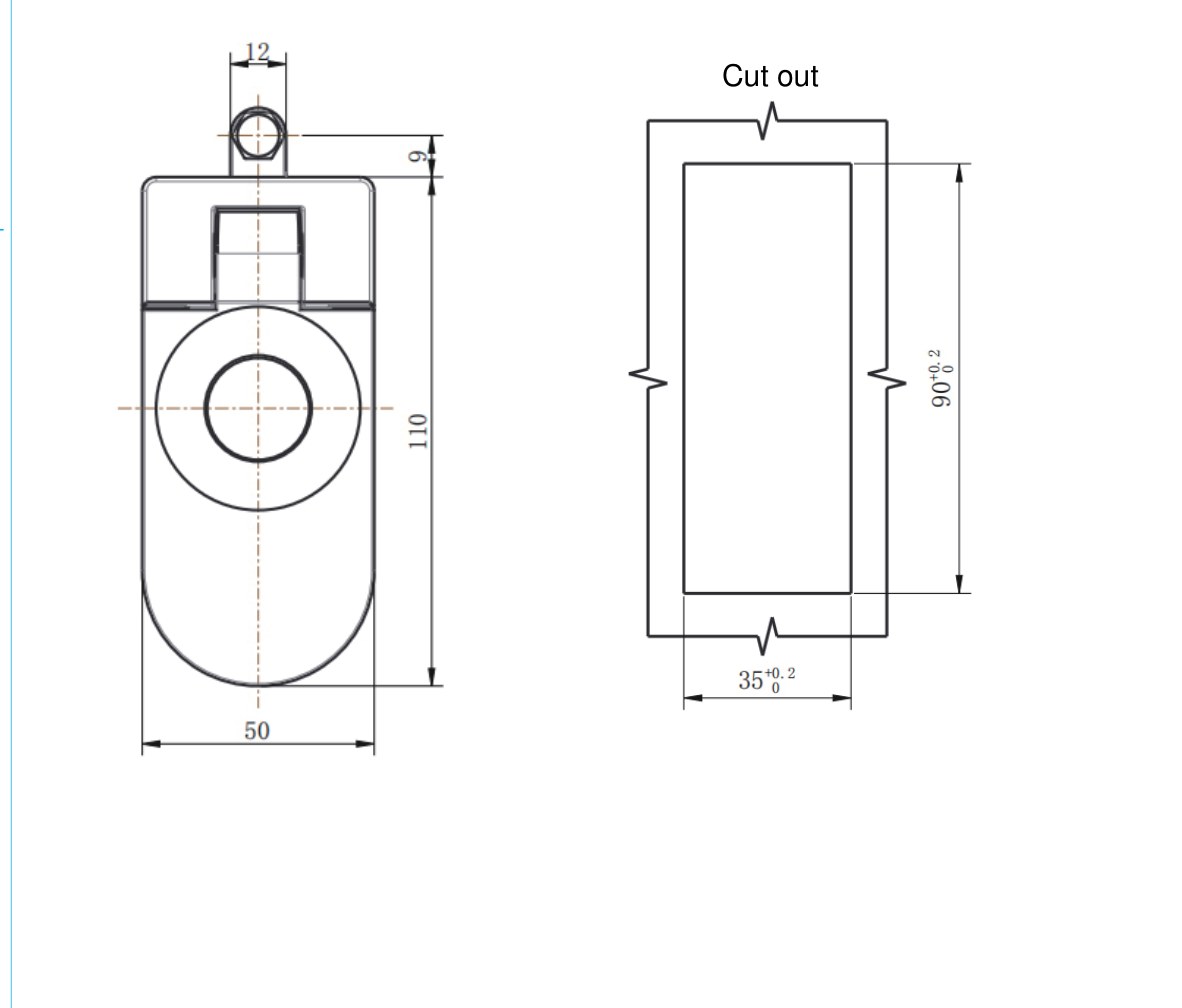

Dimension Drawing & Cut-out
FAQ
Q: Is the MP718-3A swing handle lock waterproof?
A: Yes, it is rated IP54, meaning it is protected against dust ingress and water splashes, making it suitable for outdoor and humid environments.
Q: What key does the MP718-3A use?
A: It uses the CH751 key. The MP718-3AB version has no insert for custom cylinder installation.
Q: What finishes are available?
A: Black powder coating or bright chrome plating, with stainless steel screws for corrosion resistance.
Q: How does the adjustable distance control work?
A: The adjusting screw allows the handle projection to be set for different door and gasket thicknesses.
