MP718-3C Series Adjustable Grip Swing Handle Lock, IP54 Compression Cabinet Latch with CH751 Key
MP718-3C series adjustable grip swing handle lock with compression design. IP54 zinc alloy housing in black or chrome, M6 x 30 adjusting screw, seal gasket. MP718-3C with insert (CH751 key); MP718-3CB without insert.
The MP718-3C series is an adjustable grip swing handle lock for industrial enclosures where door and gasket thicknesses vary. An M6 x 30 adjusting screw with support and M5 x 10 support screw lets the grip range be precisely set, while the integrated seal gasket ensures a tight, vibration-free door close.

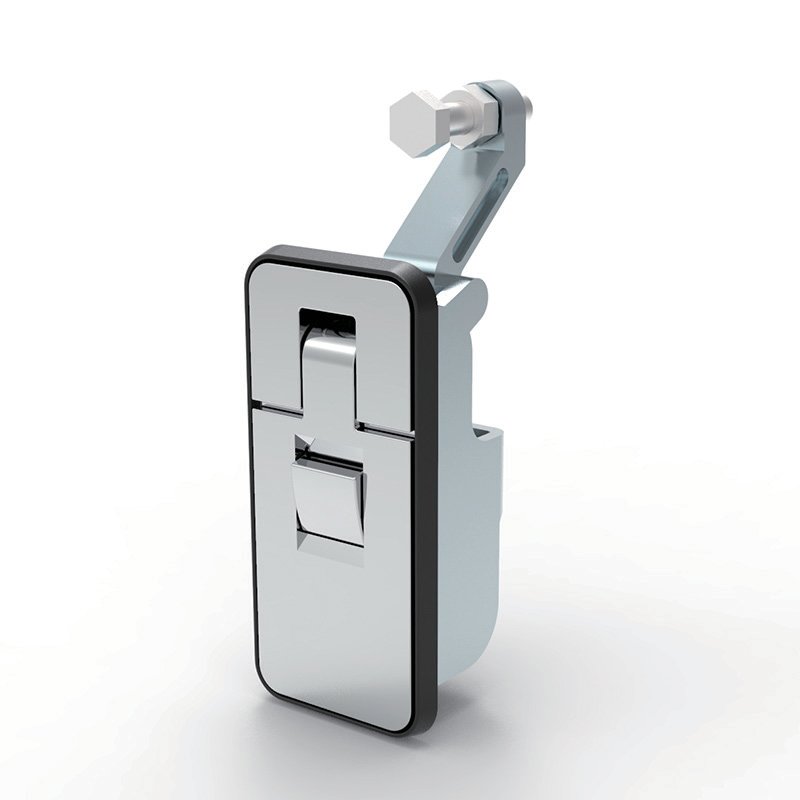

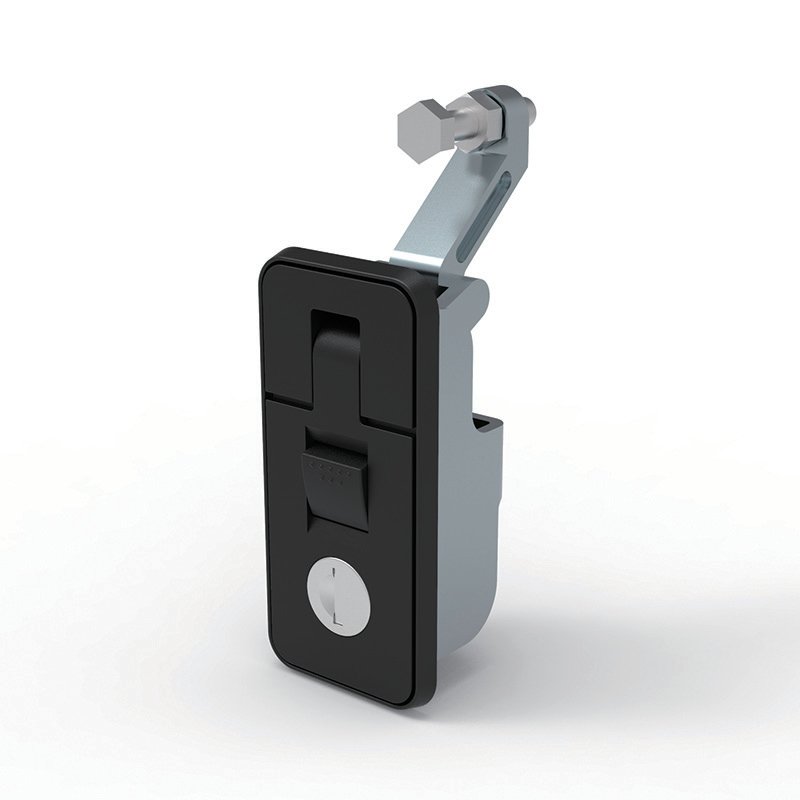

The zinc alloy housing is finished in black powder coating or bright chrome plating, with a steel button and stainless steel screws. Two variants are available: MP718-3C with insert (CH751 key) and MP718-3CB without insert for custom cylinder installation.
Rated IP54, this compression-style latch is ideal for distribution cabinets, telecom enclosures, control panels and machinery cabinets. Dimension drawings and cut-out templates are provided below.
Variants:
- MP718-3C — with insert
- MP718-3CB — without insert
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP718-3C | with insert | Zinc alloy housing, steel button, stainless steel screw | Powder coating (black) / Bright chromeplated | CH751 |
| MP718-3CB | without insert | Zinc alloy housing, steel button, stainless steel screw | Powder coating (black) / Bright chromeplated | No cylinder insert |

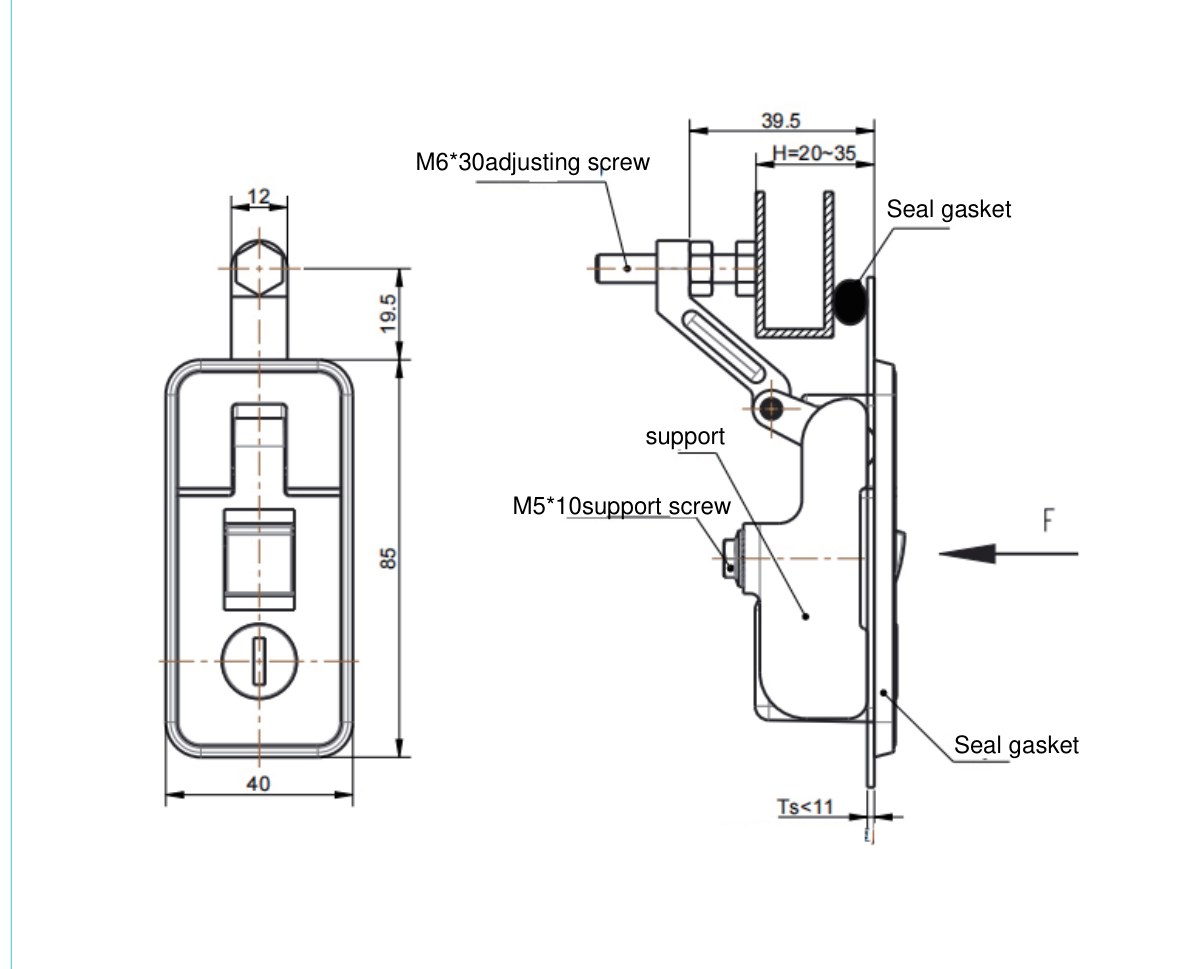

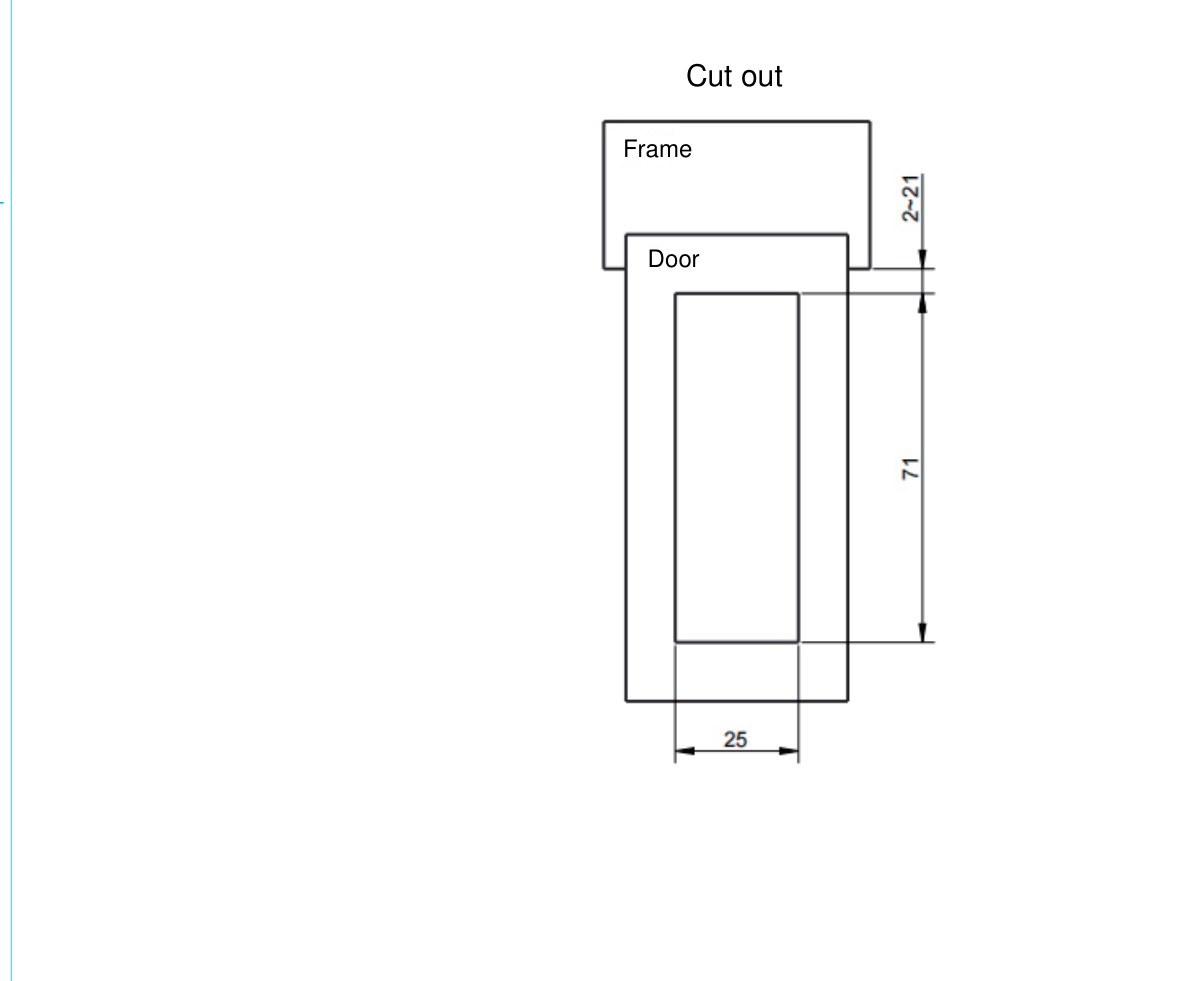

Dimension Drawing & Cut-out
FAQ
Q: How is the grip range adjusted on the MP718-3C?
A: An M6 x 30 adjusting screw with support and M5 x 10 support screw sets the grip distance to match different door and gasket thicknesses.
Q: Does it seal the cabinet door?
A: Yes, the integrated seal gasket provides a tight, vibration-free door close.
Q: What key does it use?
A: CH751. The MP718-3CB variant has no insert for custom cylinders.
Q: What is the IP rating?
A: IP54 – dust protected and splash resistant.
