MP718-4C MP718-4CB Adjustable Lever Compression Latch, IP54 Swing Handle Lock with CH751 Key
MP718-4C series adjustable lever compression latch for cabinet doors. An M6×30 adjusting screw with M6×12 support screw sets the grip range to match door and gasket thickness. Zinc alloy housing in black powder coating or bright chrome, steel button, CH751 key, IP54.
The MP718-4C series is an adjustable lever compression latch for industrial cabinet doors. Flipping the lever draws the door in and compresses it against the frame, giving a tight, vibration-resistant closure on gasketed enclosures.

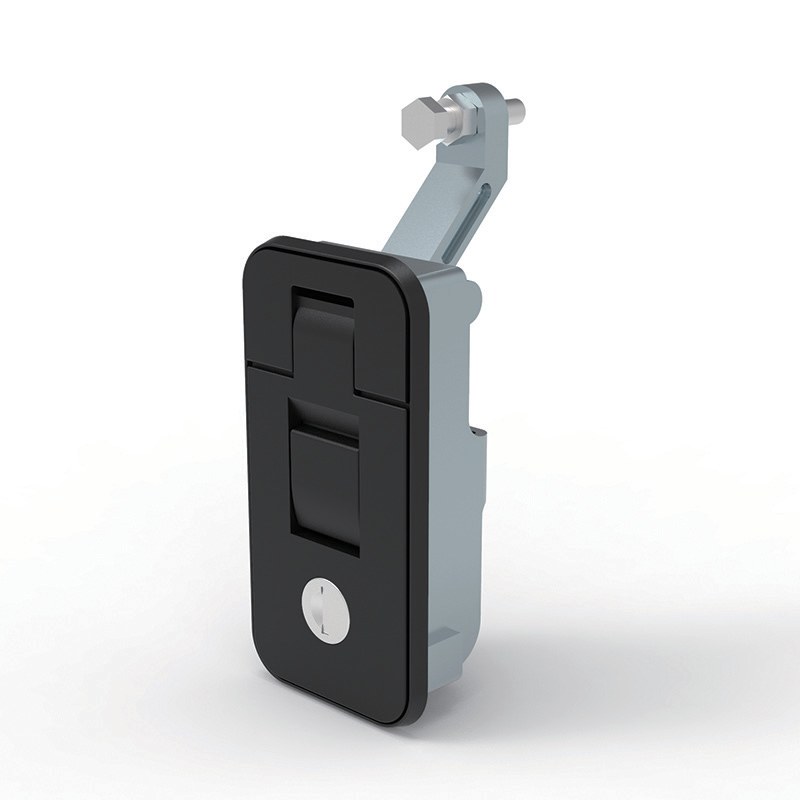

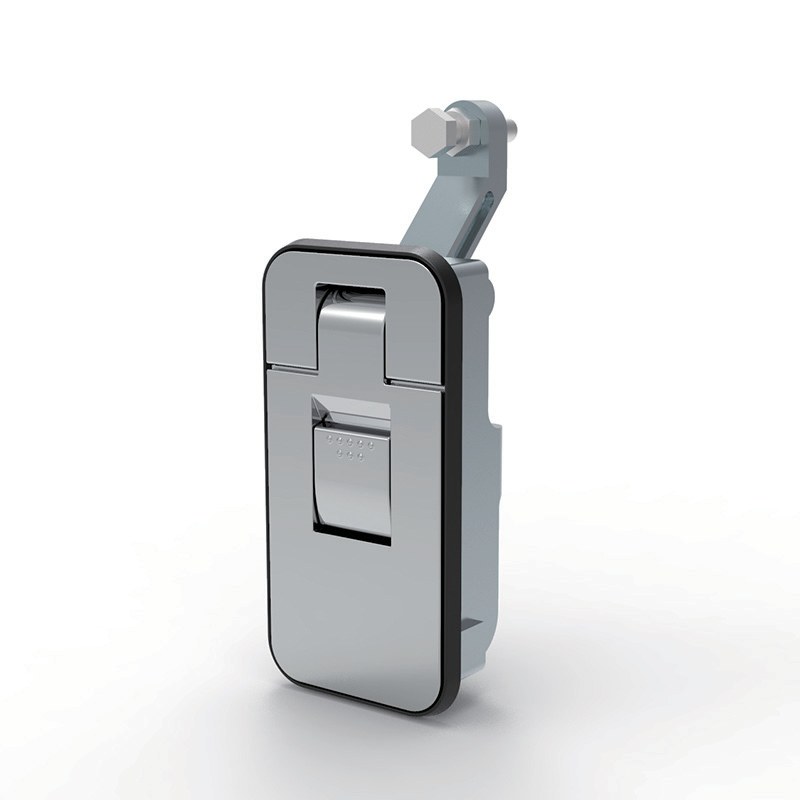

Grip distance is set by an M6×30 adjusting screw together with an M6×12 support screw, so one latch covers a range of door and gasket thicknesses. The zinc alloy housing comes in black powder coating or bright chrome plating, with a steel button and stainless steel screws for corrosion resistance.
Rated IP54, the MP718-4C suits distribution cabinets, control panels, telecom enclosures and machinery cabinets. Two variants are available: MP718-4C with insert (CH751 key) and MP718-4CB without insert for custom cylinders. Dimension drawings and cut-out templates are provided below.
Variants:
- MP718-4C — with insert
- MP718-4CB — without insert
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP718-4C | with insert | Zinc alloy housing, steel button, stainless steel screw | Powder coating (black) / Bright chromeplated | CH751 |
| MP718-4CB | without insert | Zinc alloy housing, steel button, stainless steel screw | Powder coating (black) / Bright chromeplated | No cylinder insert |

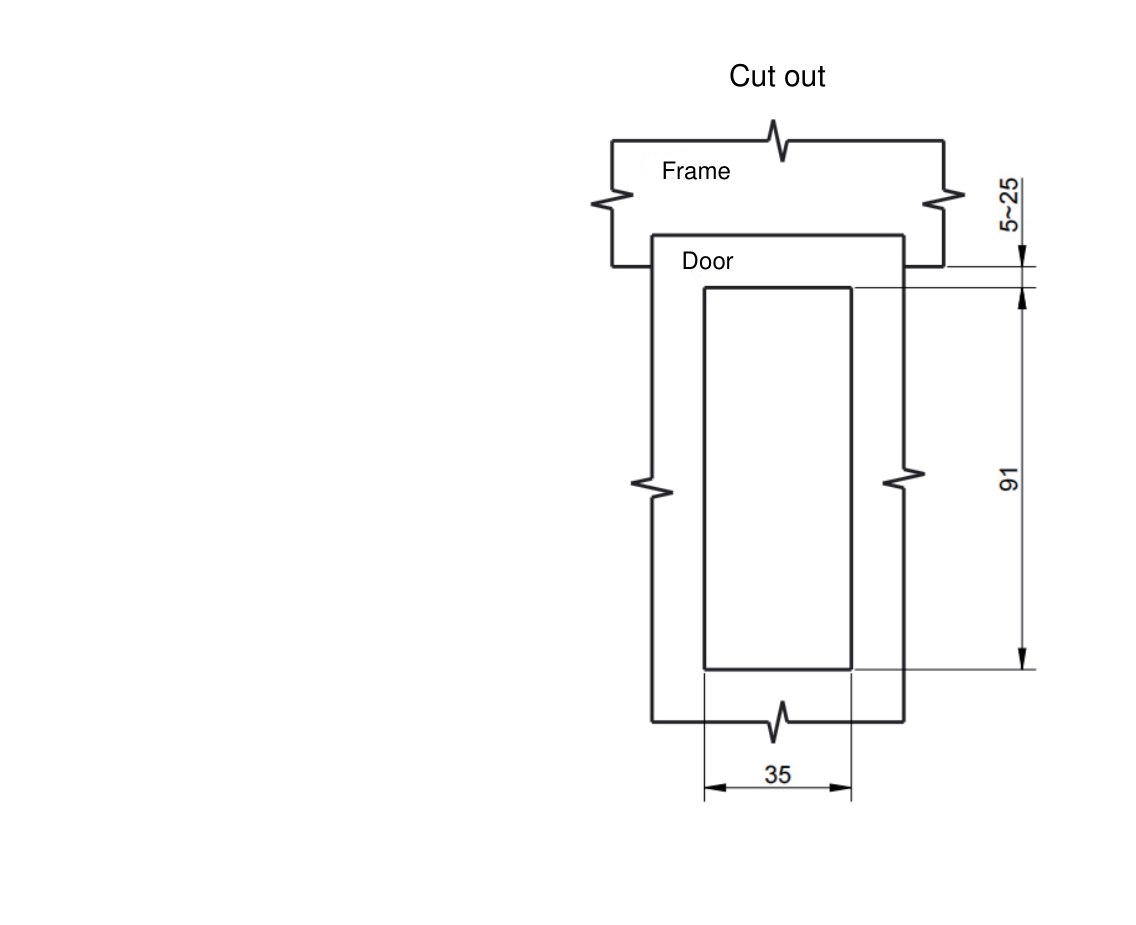

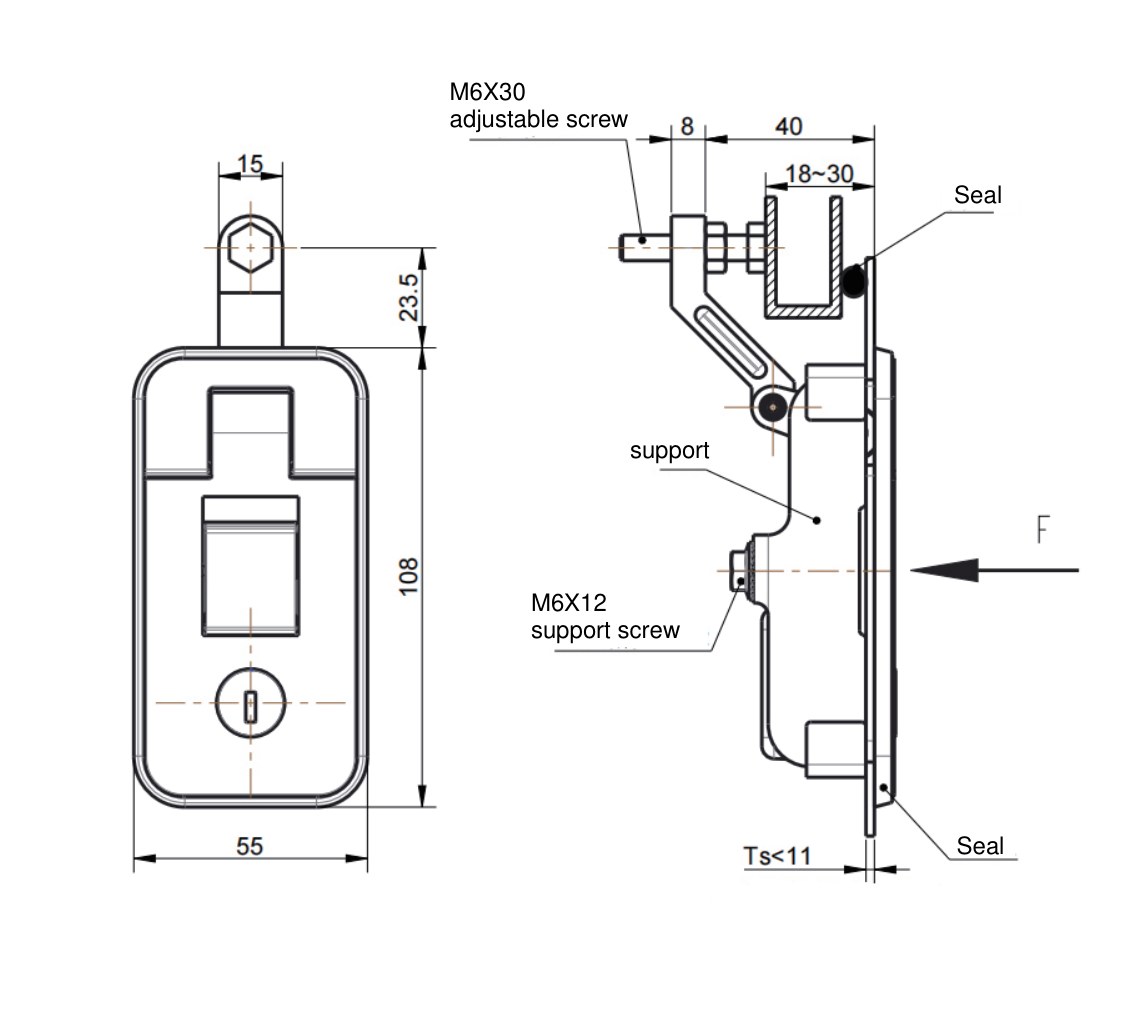

Dimension Drawing & Cut-out
FAQ
Q: How is the compression adjusted on the MP718-4C?
A: An M6×30 adjusting screw with an M6×12 support screw sets the grip distance to match the door and gasket thickness.
Q: Is the MP718-4C padlockable?
A: No. The MP718-4C is a lever compression latch without a padlock hasp. For padlockable models, see the MP818 series or the MP860-1B padlock versions.
Q: What key does it use?
A: The MP718-4C with insert uses a CH751 key. The MP718-4CB variant has no insert for custom cylinders.
Q: What is the IP rating?
A: IP54, dust protected and splash resistant.
Q: What finishes are available?
A: Black powder coating or bright chrome plating, both on a zinc alloy housing.
