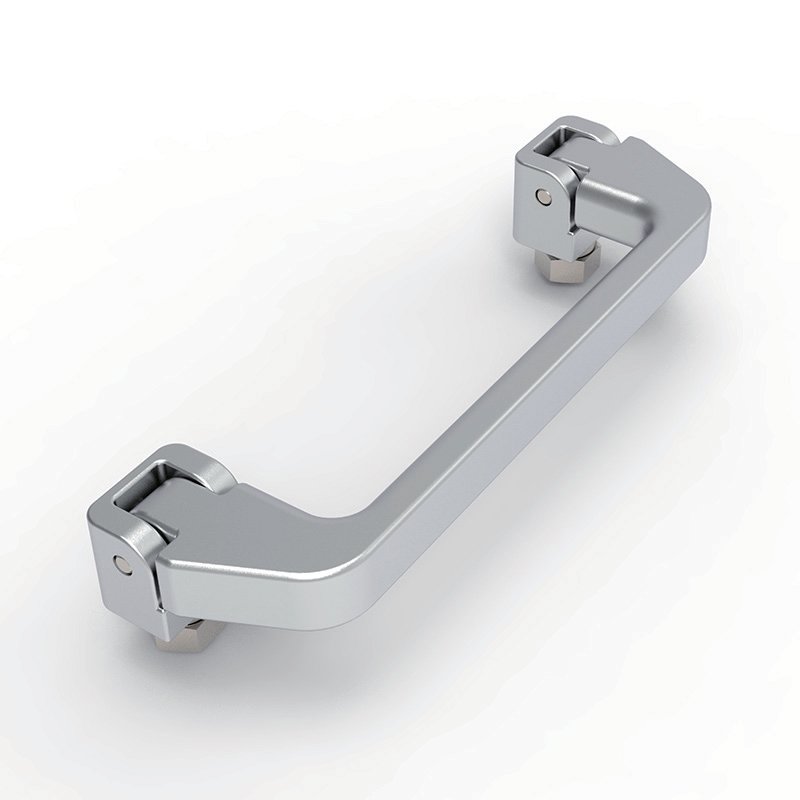

The LS101-1 matte chrome handle is die-cast in zinc alloy and finished in electroplated matte chrome, giving a subdued, low-glare pull for industrial cabinet and enclosure doors.
The matte chrome resists fingerprints and wear, and the handle mounts on the door face with screws.
Typical applications include industrial enclosures, telecom cabinets, control panels and machinery doors. The dimension drawing is provided below.
| Part Number | Description | Material | Finish |
|---|---|---|---|
| LS101-1 | matte chrome handle | Zinc alloy | Electroplated matte chrome |

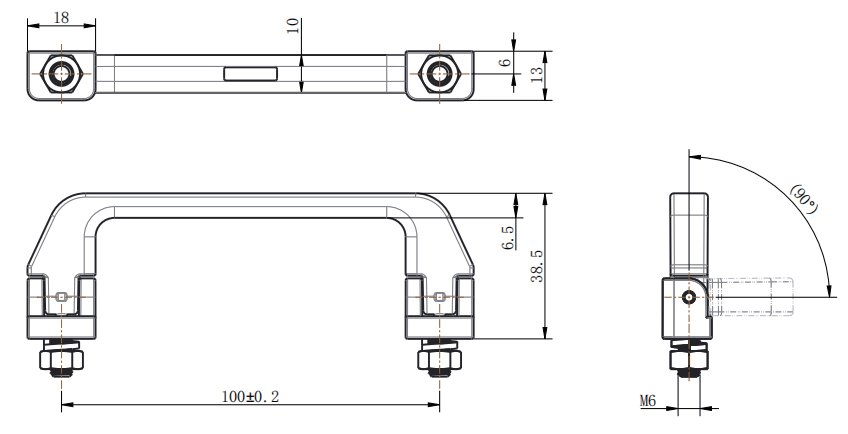

Dimension Drawing
FAQ
Q: What is the LS101-1 made of?
A: Die-cast zinc alloy with an electroplated matte chrome finish.
Q: What is matte chrome?
A: A low-glare chrome finish that resists fingerprints and wear.
Q: Does it need a cut-out?
A: No, it is surface-mounted.
Q: Where is it used?
A: Industrial enclosures, telecom cabinets and control panels.
