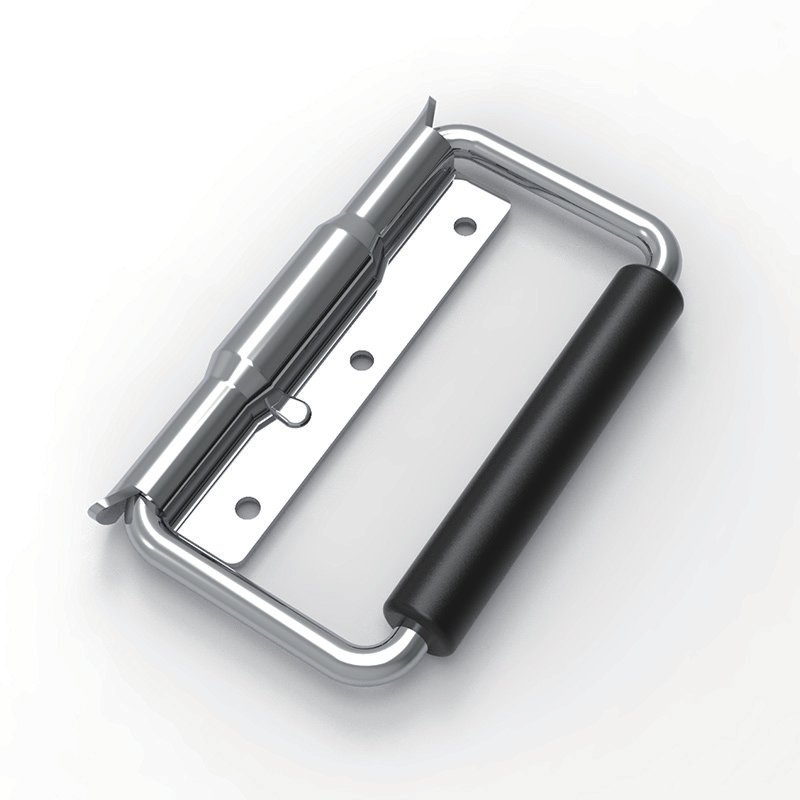

The LS504 chrome cabinet handle is a surface-mount pull for industrial enclosure and cabinet doors, supplied in bright chrome plated steel or SUS304 stainless steel. It mounts on the door face with screws, so no cut-out is needed.
Two finish options are available: the standard LS504-1 in bright chrome plating, and the LS504-1B with an electrolysis (e-coat) finish for extra corrosion protection.
Typical applications include industrial enclosures, telecom cabinets, control panels and machinery guards. The dimension drawing is provided below.
| Part Number | Description | Material | Finish |
|---|---|---|---|
| LS504-1 | cabinet pull handle, bright chrome plated | Steel | Bright chrome plated |
| LS504-1B | cabinet pull handle, electrolysis finish | Steel | Electrolysis (e-coat) |

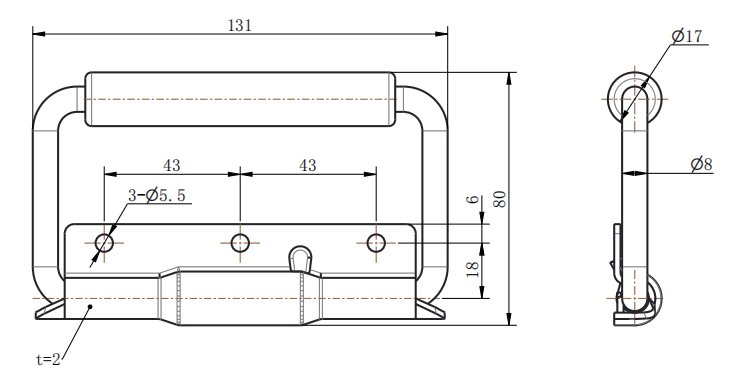

Dimension Drawing
FAQ
Q: What materials is the LS504 available in?
A: Bright chrome plated steel, or SUS304 stainless steel for corrosion-resistant applications.
Q: What is the difference between LS504-1 and LS504-1B?
A: LS504-1 is bright chrome plated; LS504-1B uses an electrolysis (e-coat) finish for extra corrosion protection.
Q: Does the LS504 need a cut-out?
A: No, it is surface-mounted and only needs screw holes.
Q: Where is the LS504 used?
A: Industrial enclosures, telecom cabinets, control panels and machinery doors.
