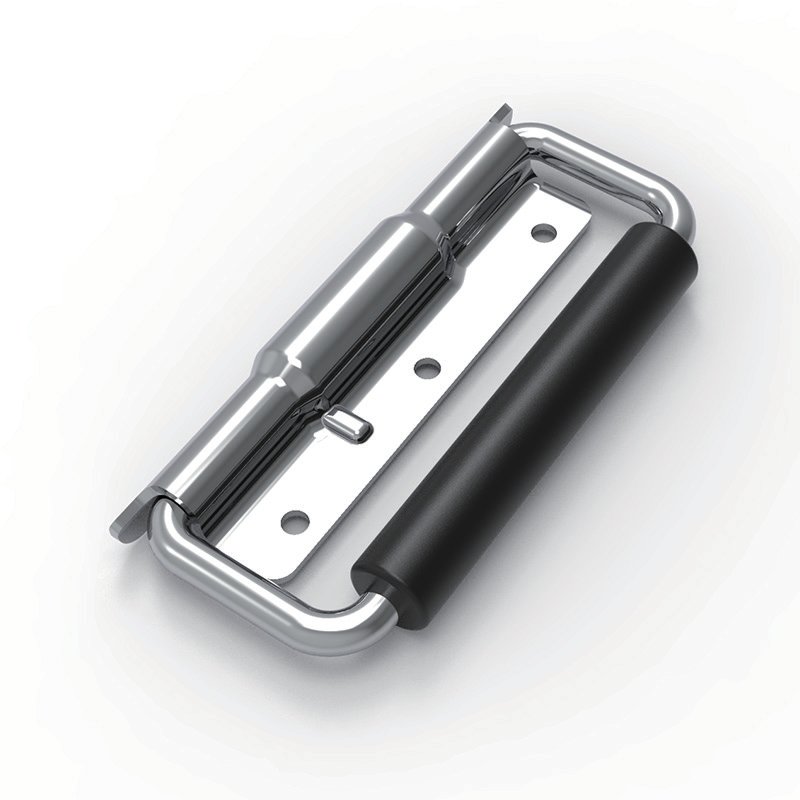

The LS504-1A stainless steel cabinet handle is a surface-mount pull for industrial cabinet and enclosure doors, available in polished SUS304 stainless steel or bright chrome plated steel.
The polished SUS304 version resists corrosion in damp or outdoor environments, while the steel version suits indoor cabinets. No cut-out is required.
Typical applications include telecom cabinets, control panels, enclosures and machinery guards. The dimension drawing is provided below.
| Part Number | Description | Material | Finish |
|---|---|---|---|
| LS504-1A | cabinet pull handle, bright chrome plated | Steel | Bright chrome plated |
| LS504-1AS | cabinet pull handle, stainless steel | SUS304 | Polished |

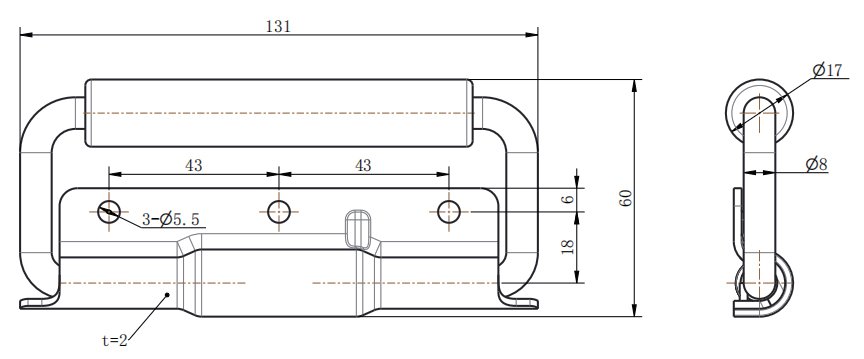

Dimension Drawing
FAQ
Q: What is the difference between LS504-1A and LS504-1AS?
A: LS504-1A is bright chrome plated steel; LS504-1AS is polished SUS304 stainless steel.
Q: Is the LS504-1A suitable outdoors?
A: The SUS304 (LS504-1AS) version is recommended for damp or outdoor use.
Q: Does it need a cut-out?
A: No, it is surface-mounted.
Q: What lengths are available?
A: See the dimension drawing for the standard size and fixing centres.
