DK618-7 Steel Toggle Latch | White Zinc Plated L-Shaped Latch with 2-M6 Threaded Holes (Left Hand)
Heavy-duty L-shaped toggle latch made of steel with a white zinc plated finish. Features 2-M6 threaded mounting holes, a Ø10mm locking hole, and a dual-hole Ø6mm handle. Left Hand (LH) configuration. Ideal for right-angle industrial cabinets and machinery enclosures.

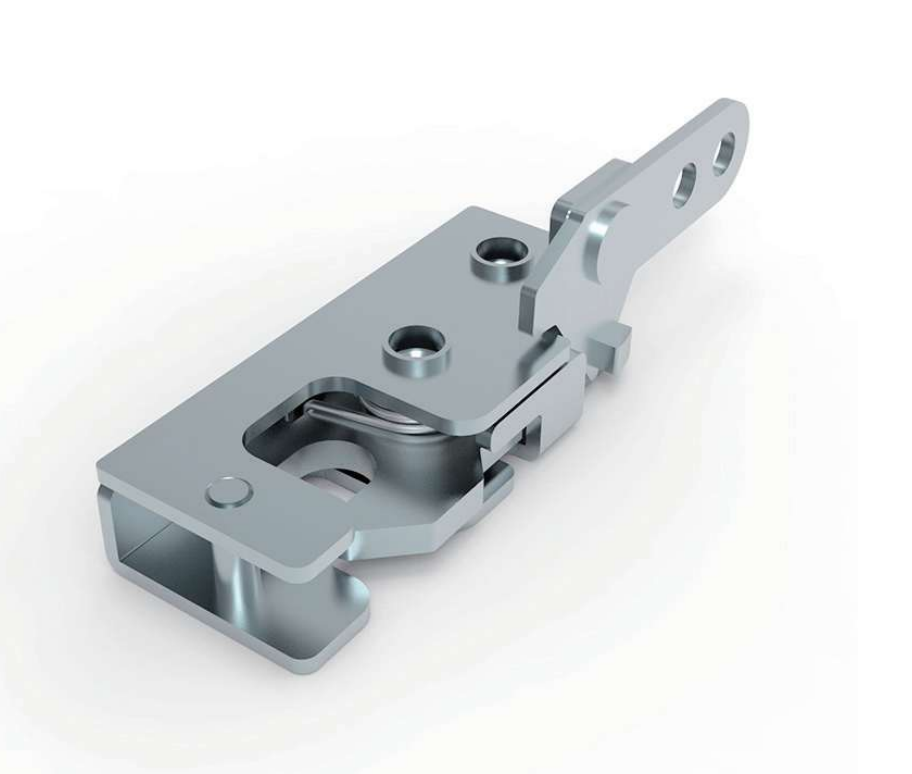

DK618-7 steel toggle latch with white zinc plated finish and left hand L-shaped design
Product Overview:
The DK618-7 Steel Toggle Latch is a specialized L-shaped fastening solution engineered for right-angle mounting applications. Unlike traditional flat draw latches, this model features a vertical base structure designed to secure doors, panels, and enclosures where the mounting surface is perpendicular to the latching point. With a robust 68.5mm base height and a 28mm width, the DK618-7 Steel Toggle Latch provides a secure and reliable locking mechanism for heavy-duty industrial equipment, machinery housings, and right-angle cabinets.
Important Note on Configuration:

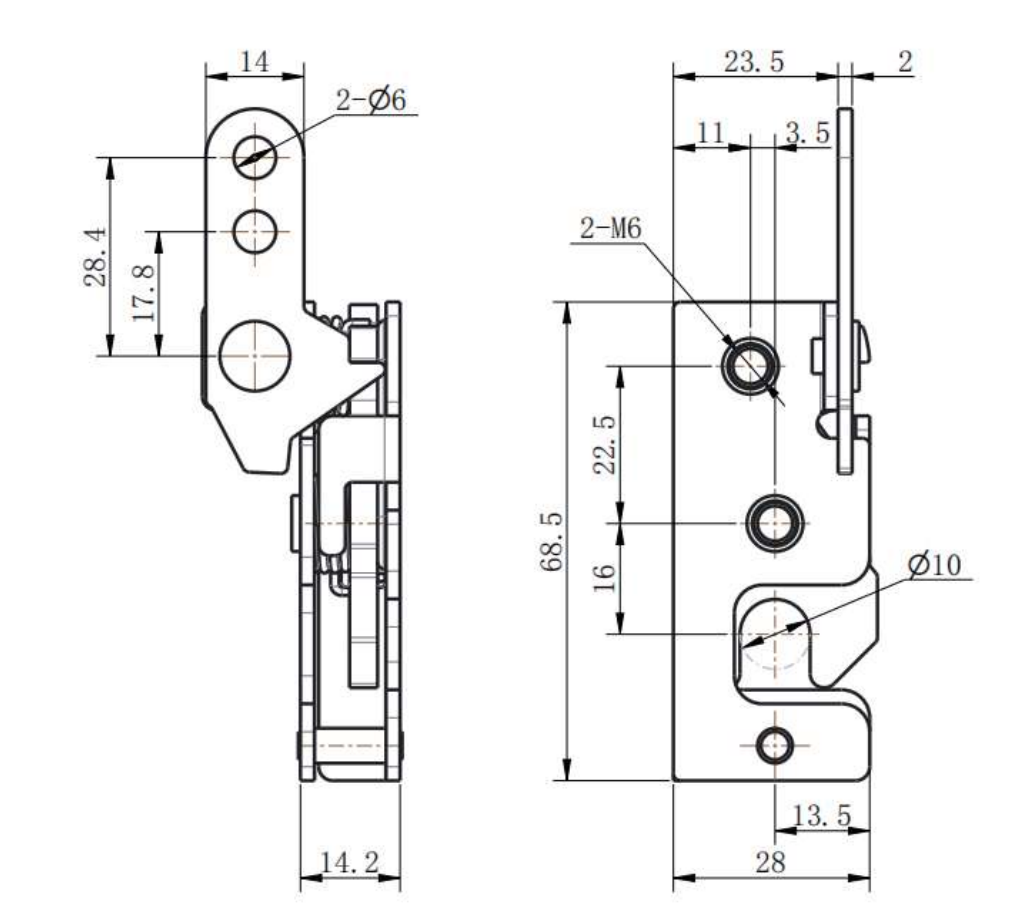

Please note that the technical drawing provided represents the Left Hand (LH) version. If your application requires a mirrored configuration, please check our inventory for the Right Hand (RH) version or contact our sales team for custom requirements.
Why Choose Steel with White Zinc Plating?
The DK618-7 is constructed from high-quality steel, offering excellent structural strength and durability. It is finished with a white zinc plating, which provides a protective barrier against rust and corrosion. While not fully stainless steel, the white zinc plating is highly effective for indoor industrial environments, automotive applications, and general machinery where cost-effectiveness and moderate corrosion resistance are required.
Key Features & Benefits:
-
L-Shaped Right-Angle Design: Specifically engineered for corners and perpendicular mounting surfaces, solving latching challenges where standard latches cannot reach.
-
Convenient 2-M6 Threaded Holes: The base features 2 x M6 internal threaded holes (spaced at 22.5mm and 16mm), allowing for direct bolt-on installation without the need for additional nuts.
-
Dual-Hole Handle (2-Ø6mm): The handle features two Ø6mm holes (spaced at 28.4mm and 17.8mm), providing versatile options for manual operation, linkage attachment, or secondary locking.
-
Secure Locking Point: The Ø10mm locking hole accommodates a padlock or pin for enhanced security.
-
White Zinc Plated Finish: Provides good rust resistance and a clean, industrial appearance suitable for indoor and covered outdoor environments.
Technical Specifications:
-
Material: Steel
-
Finish: White zinc plated
-
Configuration: Left Hand (LH) – Drawing is LH
-
Base Height: 68.5 mm
-
Base Width: 28 mm
-
Base Depth/Thickness: 14.2 mm
-
Handle Width: 14 mm
-
Handle Holes: 2-Ø6 mm (Spacing: 28.4 mm / 17.8 mm)
-
Base Threaded Holes: 2-M6 (Spacing: 22.5 mm / 16 mm)
-
Locking Hole Diameter: Ø10 mm
-
Base Hole to Edge: 13.5 mm
Application Guide:
The DK618-7 Steel Toggle Latch is the definitive choice for:
-
Right-Angle Industrial Cabinets: Secure control panels and electrical boxes with corner-mounted doors.
-
Machinery Enclosures: Engine covers, access panels, and maintenance doors on heavy equipment.
-
Automotive & Transportation: Specialized locking mechanisms for truck bodies, trailers, and RV compartments.
-
General Industrial Hardware: A reliable replacement or upgrade for L-shaped latches in various mechanical assemblies.
Installation and Maintenance:
Installation is straightforward: mount the L-shaped base onto a flat surface using M6 bolts screwed directly into the 2-M6 threaded holes. Ensure the latch hook aligns with the corresponding catch or Ø10mm pin. Once positioned, secure the latch and verify the tension. The white zinc plated surface requires minimal maintenance—simply wipe with a damp cloth to remove dust or dirt. Avoid using abrasive cleaners that could scratch the plating.
Frequently Asked Questions (FAQ):
-
Q: What is the difference between the DK618-6 and DK618-7?
A: The DK618-7 features two Ø6mm holes on the handle and 2-M6 threaded mounting holes on the base, whereas the DK618-6 has a different handle hole configuration and unthreaded base holes. -
Q: Is this latch available in a Right Hand (RH) version?
A: Yes, the DK618-7 is available in both LH and RH configurations. The drawing shown here is for the Left Hand version. Please contact us for RH options. -
Q: Is this latch made of stainless steel?
A: No, it is made of steel with a white zinc plated finish. While it offers good rust resistance, it is best suited for indoor or non-corrosive environments. For outdoor or marine applications, please consider our SUS304 stainless steel series.
Conclusion:
When your project demands a reliable, rust-resistant, and heavy-duty L-shaped latch for right-angle mounting with easy bolt-on installation, the DK618-7 Steel Toggle Latch delivers the perfect solution. Choose the Left Hand or Right Hand version to match your specific application requirements. Upgrade your industrial hardware today.
