DK618-6 Steel Toggle Latch | White Zinc Plated L-Shaped Latch (Left Hand Version)
Heavy-duty L-shaped toggle latch made of steel with a white zinc plated finish. Features a 68.5mm base height, Ø10mm locking hole, and Ø6mm handle hole. Left Hand (LH) configuration. Ideal for right-angle industrial cabinets, machinery enclosures, and door locking systems.
Product Overview:

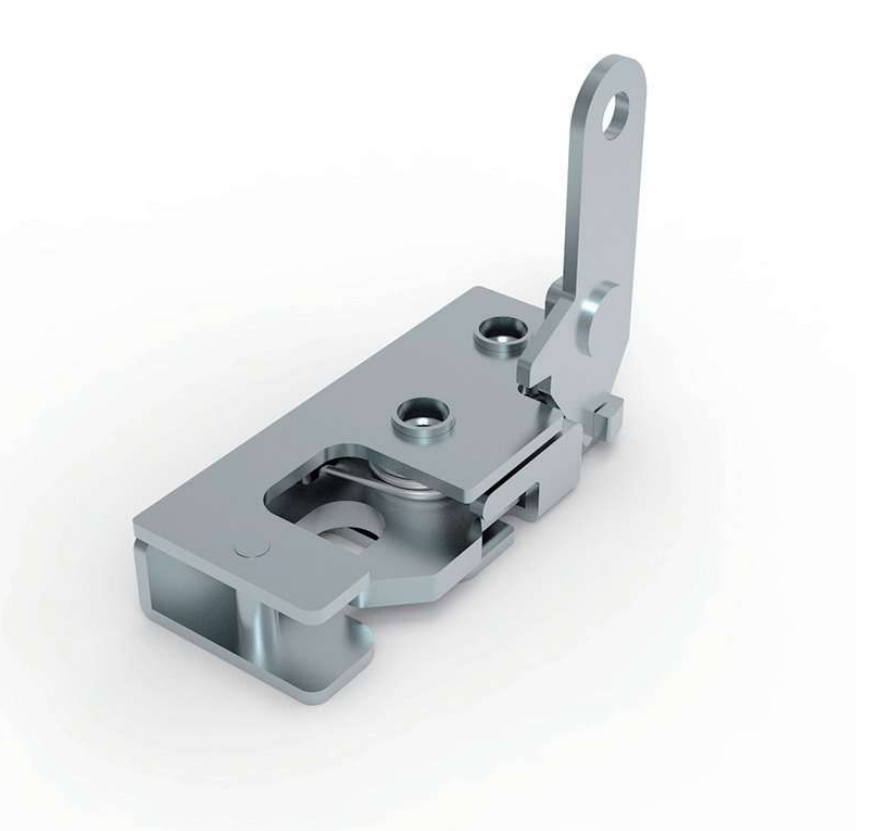

The DK618-6 Steel Toggle Latch is a specialized L-shaped fastening solution designed for right-angle mounting applications. Unlike traditional flat draw latches, this model features a vertical base structure that is engineered to secure doors, panels, and enclosures where the mounting surface is perpendicular to the latching point. With a robust 68.5mm base height and a 28mm width, the DK618-6 Steel Toggle Latch provides a secure and reliable locking mechanism for heavy-duty industrial equipment, machinery housings, and right-angle cabinets.
Important Note on Configuration:

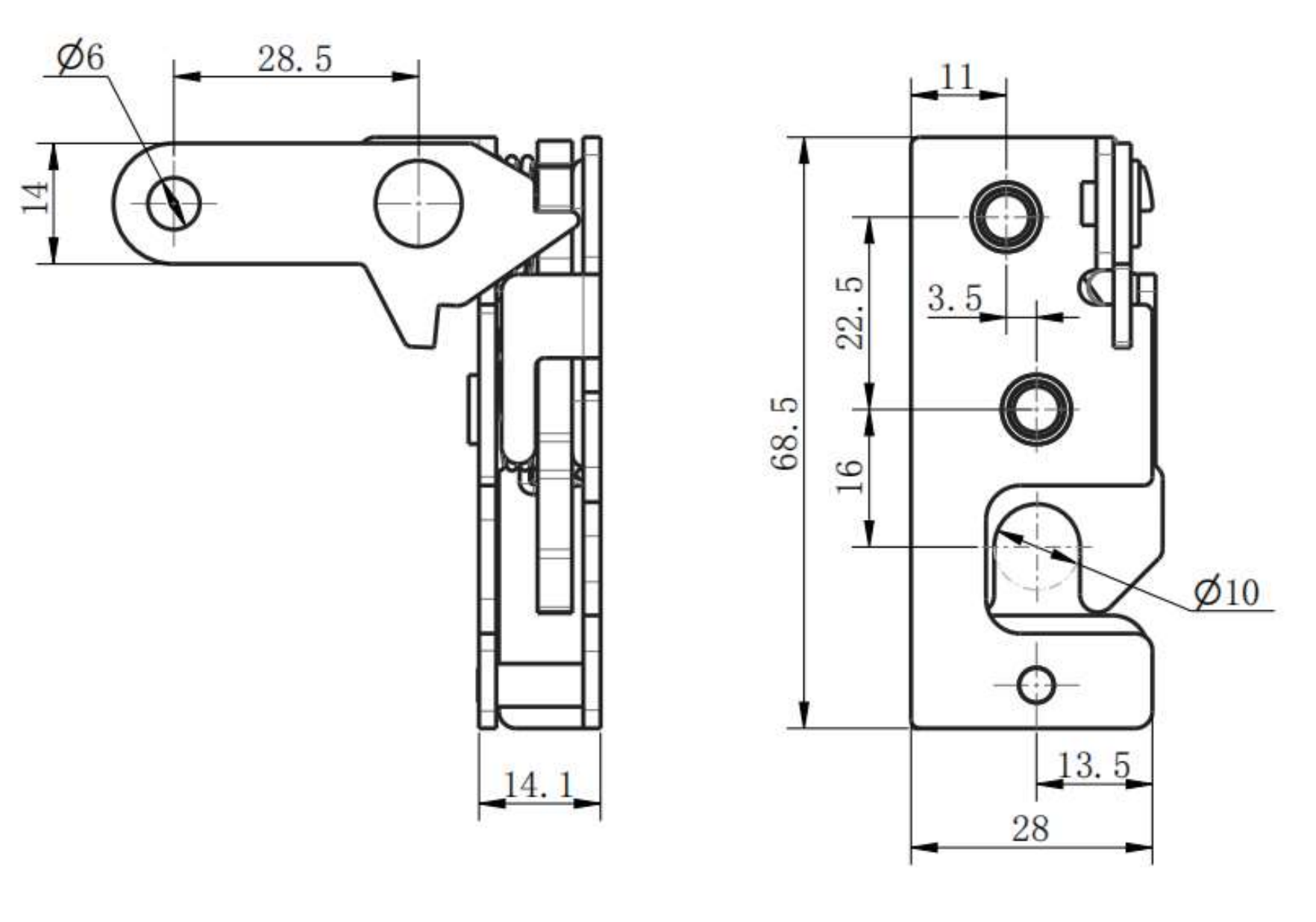

Please note that the technical drawing provided represents the Left Hand (LH) version. If your application requires a mirrored configuration, please check our inventory for the Right Hand (RH) version or contact our sales team for custom requirements.
Why Choose Steel with White Zinc Plating?
The DK618-6 is constructed from high-quality steel, offering excellent structural strength and durability. It is finished with a white zinc plating, which provides a protective barrier against rust and corrosion. While not fully stainless steel, the white zinc plating is highly effective for indoor industrial environments, automotive applications, and general machinery where cost-effectiveness and moderate corrosion resistance are required.
Technical Specifications:
-
Material: Steel
-
Finish: White zinc plated
-
Configuration: Left Hand (LH) – Drawing is LH
-
Base Height: 68.5 mm
-
Base Width: 28 mm
-
Base Depth/Thickness: 14.1 mm
-
Overall Handle Length (from base): Approx. 42.5 mm (14 mm + 28.5 mm)
-
Handle Hole: Ø6 mm
-
Locking Hole: Ø10 mm
-
Mounting Hole Spacing: 22.5 mm / 16 mm
Key Features & Benefits:
-
L-Shaped Right-Angle Design: Specifically engineered for corners and perpendicular mounting surfaces, solving latching challenges where standard latches cannot reach.
-
Robust Steel Construction: Offers high tensile strength and impact resistance for heavy-duty applications.
-
White Zinc Plated Finish: Provides good rust resistance and a clean, industrial appearance suitable for indoor and covered outdoor environments.
-
Versatile Locking Options: The Ø10mm locking hole accommodates a padlock or pin for enhanced security. The Ø6mm handle hole allows for smooth manual operation or linkage attachment.
-
Precision Mounting: Features multiple mounting holes on the base (spaced at 22.5mm and 16mm) for a stable and secure installation.
Application Guide:
The DK618-6 Steel Toggle Latch is the definitive choice for:
-
Right-Angle Industrial Cabinets: Secure control panels and electrical boxes with corner-mounted doors.
-
Machinery Enclosures: Engine covers, access panels, and maintenance doors on heavy equipment.
-
Automotive & Transportation: Specialized locking mechanisms for truck bodies, trailers, and RV compartments.
-
General Industrial Hardware: A reliable replacement or upgrade for L-shaped latches in various mechanical assemblies.
Installation and Maintenance:
Installation requires mounting the L-shaped base onto a flat surface using appropriate M4 or M5 screws (not included). Ensure the latch hook aligns with the corresponding catch or Ø10mm pin. Once positioned, secure the latch and verify the tension. The white zinc plated surface requires minimal maintenance—simply wipe with a damp cloth to remove dust or dirt. Avoid using abrasive cleaners that could scratch the plating.
Frequently Asked Questions (FAQ):
-
Q: Is this latch available in a Right Hand (RH) version?
A: Yes, the DK618-6 is available in both LH and RH configurations. The drawing shown here is for the Left Hand version. Please contact us for RH options. -
Q: What is the purpose of the Ø10mm hole?
A: The Ø10mm hole serves as the locking point or catch receiver, allowing you to insert a pin, padlock, or bolt to secure the latch. -
Q: Is this latch made of stainless steel?
A: No, it is made of steel with a white zinc plated finish. While it offers good rust resistance, it is best suited for indoor or non-corrosive environments. For outdoor or marine applications, please consider our SUS304 stainless steel series.
Conclusion:
When your project demands a reliable, rust-resistant, and heavy-duty L-shaped latch for right-angle mounting, the DK618-6 Steel Toggle Latch delivers the perfect solution. Choose the Left Hand or Right Hand version to match your specific application requirements. Upgrade your industrial hardware today.
