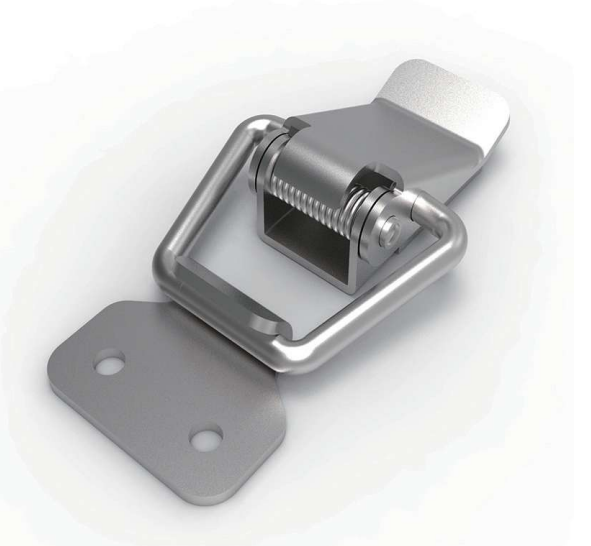

DK619-2-1D SUS304 stainless steel spring latch with grinding finish and U-ring handle

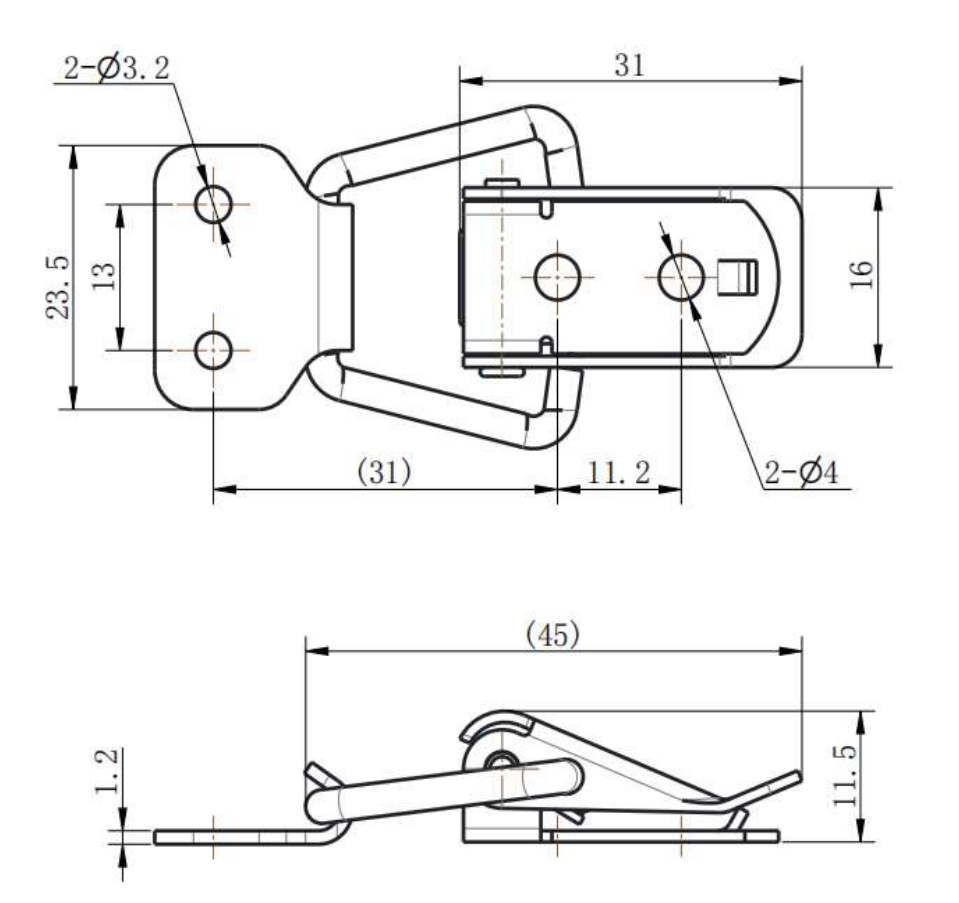

DK619-2-1D SUS304 spring latch technical drawing showing 2-Ø3.2mm base holes, 2-Ø4mm catch holes, and 11.5mm height
DK619-2-1D SUS304 stainless steel spring latch with grinding finish and U-ring handle
DK619-2-1D SUS304 spring latch technical drawing showing 2-Ø3.2mm base holes, 2-Ø4mm catch holes, and 11.5mm height

DK619-2-1D SUS304 Spring Latch | Stainless Steel Draw Latch with Grinding Finish (Spring Loaded)

Compact SUS304 stainless steel spring draw latch with a grinding finish. Features 2-Ø3.2mm base holes, 2-Ø4mm catch holes, and an integrated spring-loaded U-ring for flexible tension. Ideal for industrial cabinets, control panels, and vibration-prone enclosures.

加入心愿单
Category: Tags: , , , , , , , , , , , , , , , , , , , Brand:
DK619-2-1D SUS304 stainless steel spring latch with grinding finish and U-ring handle
DK619-2-1D SUS304 stainless steel spring latch with grinding finish and U-ring handle
DK619-2-1D SUS304 spring latch technical drawing showing 2-Ø3.2mm base holes, 2-Ø4mm catch holes, and 11.5mm height
DK619-2-1D SUS304 spring latch technical drawing showing 2-Ø3.2mm base holes, 2-Ø4mm catch holes, and 11.5mm height

Product Overview:
The DK619-2-1D SUS304 Spring Latch is a compact, high-performance spring draw latch designed for secure and reliable fastening in space-restricted applications. Crafted entirely from premium SUS304 stainless steel with a smooth grinding finish, this latch features an integrated spring mechanism and a robust U-shaped wire ring. Measuring just 45mm in overall length and 16mm in width, the DK619-2-1D SUS304 Spring Latch delivers excellent tension, corrosion resistance, and easy operation for industrial cabinets, control panels, and vibration-prone machinery.

Why Choose SUS304 Stainless Steel and Grinding Finish?
SUS304 (AISI 304) stainless steel is renowned for its exceptional corrosion resistance, making the DK619-2-1D SUS304 Spring Latch perfectly suited for outdoor, marine, and humid environments. The grinding finish not only provides a sleek, professional appearance but also eliminates surface imperfections, ensuring smooth operation and easy cleaning. This makes it an ideal choice for food machinery, medical equipment, and general industrial hardware.

Spring-Loaded Tension Mechanism:
Unlike rigid toggle latches, the DK619-2-1D features a built-in spring mechanism integrated into the U-ring handle. This spring-loaded design provides flexible tension, accommodating slight variations in panel alignment and absorbing vibration. This helps prevent the latch from rattling loose while maintaining a tight, secure seal over time.

Technical Specifications:

  • Material: SUS304 Stainless Steel

  • Finish: Grinding (Polished/Brushed)

  • Overall Length (Base): Approx. 31 mm

  • Overall Width (Base): 23.5 mm

  • Overall Height (Closed): 11.5 mm (Base thickness: 1.2 mm)

  • Handle/Catch Width: 16 mm

  • Base Mounting Holes: 2-Ø3.2 mm (Spacing: 13 mm)

  • Catch Mounting Holes: 2-Ø4 mm (Spacing: 11.2 mm)

  • Spring Wire Diameter: (Integrated spring mechanism)

Key Features & Benefits:

  • 100% SUS304 Construction: Fully stainless steel body, spring, and catch guarantee lifetime rust-proof performance.

  • Spring-Loaded Flexibility: Provides consistent tension and absorbs vibration, preventing accidental opening.

  • Compact & Low Profile: The 11.5mm height makes it ideal for tight spaces where standard latches would protrude or snag.

  • Secure Mounting: Features 2-Ø3.2mm base holes and 2-Ø4mm catch holes for a stable, secure installation on flat surfaces.

  • Smooth Grinding Finish: Burr-free surface ensures safe handling and a sleek, industrial appearance.

Application Guide:
The DK619-2-1D SUS304 Spring Latch is the definitive choice for:

  • Industrial Control Cabinets: Secure electrical panels, server racks, and distribution boxes.

  • Medical & Laboratory Equipment: The grinding finish meets strict hygiene standards.

  • Marine & Outdoor Enclosures: Withstands saltwater and harsh weather conditions.

  • Heavy Machinery: Engine covers, access doors, and vibrating panels.

  • Transportation: Truck toolboxes, RV compartments, and train interiors.

Installation and Maintenance:
Installation is straightforward: mount the latch base using the 2 x Ø3.2mm holes and the catch using the 2 x Ø4mm holes. Align the catch, engage the U-ring handle, and secure it. The SUS304 material requires no lubrication. A simple wipe with a damp cloth restores its shine. Regular inspection of the spring and mounting screws is recommended for high-vibration applications.

Frequently Asked Questions (FAQ):

  • Q: What is the purpose of the spring in this latch?
    A: The integrated spring provides flexible tension, which helps accommodate slight alignment variations and absorbs vibration to prevent rattling.

  • Q: Is this latch suitable for outdoor use?
    A: Yes, absolutely. The SUS304 stainless steel construction provides excellent resistance to rain, saltwater, and UV exposure.

  • Q: What are the dimensions of the mounting holes?
    A: The base features 2 x Ø3.2mm holes, and the catch features 2 x Ø4mm holes.

Conclusion:
When your project demands a reliable, rust-proof, and vibration-resistant spring latch in a compact form factor, the DK619-2-1D SUS304 Spring Latch delivers uncompromising quality. Upgrade your industrial, marine, or medical hardware with this premium stainless steel latch today.
