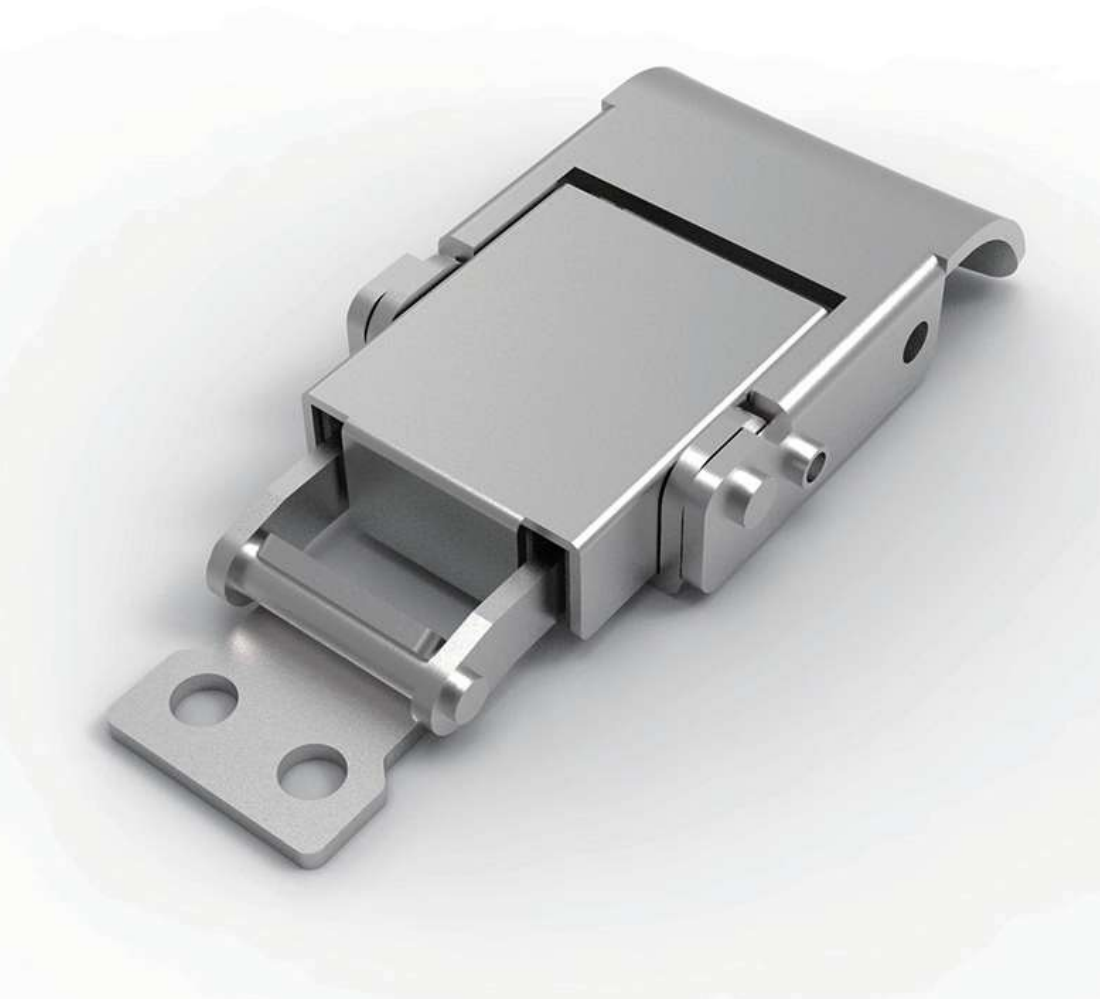

DK624 SUS304 Toggle Latch | Low Profile Stainless Steel Draw Latch with Grinding Finish
Ultra-compact SUS304 stainless steel low-profile draw latch with a grinding finish. Features 2-Ø4mm mounting holes, 43.5mm base length, and a total height of just 10.3mm. Ideal for tight enclosures, electronics, and industrial control cabinets.
Product Overview:
The DK624 SUS304 Toggle Latch is an ultra-compact, low-profile fastening solution engineered for space-restricted applications. Crafted entirely from premium SUS304 stainless steel with a smooth grinding finish, this latch features a streamlined, flat design with a total height of just 10.3mm. With a 43.5mm base length and a 21.5mm catch width, the DK624 SUS304 Toggle Latch provides a secure and reliable locking mechanism for compact electronics enclosures, medical devices, and tight industrial control panels.
Why Choose SUS304 Stainless Steel and Grinding Finish?
SUS304 (AISI 304) stainless steel is renowned for its exceptional corrosion resistance, making the DK624 SUS304 Toggle Latch perfectly suited for outdoor, marine, and humid environments. The grinding finish not only provides a sleek, professional appearance but also eliminates surface imperfections, ensuring smooth operation and easy cleaning. This makes it an ideal choice for food machinery, medical equipment, and general industrial hardware.
Ultra-Low Profile Design (10.3mm Height):
Unlike traditional bulky toggle latches, the DK624 features a remarkably low profile. With a base thickness of only 1.5mm and an overall closed height of 10.3mm, this latch is ideal for applications where protrusion is a concern, such as sliding panels, stacked enclosures, or compact electronic chassis. The curved handle design ensures a secure grip without requiring excessive vertical clearance.

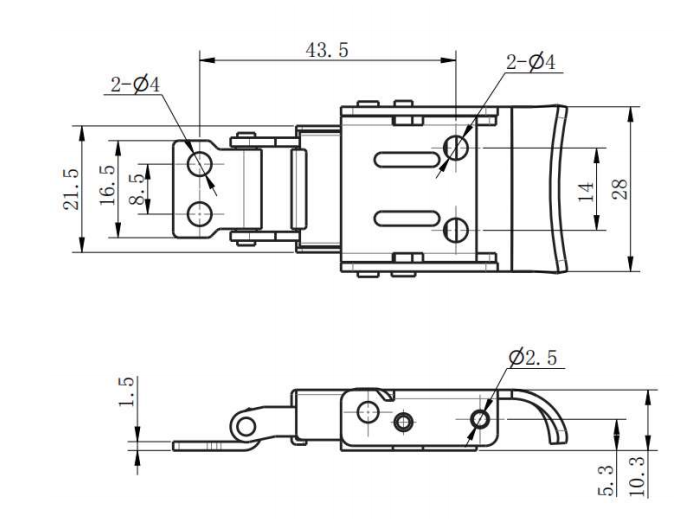

Technical Specifications:
-
Material: SUS304 Stainless Steel
-
Finish: Grinding (Polished/Brushed)
-
Overall Length (Base): 43.5 mm
-
Base Width: 28 mm
-
Overall Height (Closed): 10.3 mm (Base thickness: 1.5 mm)
-
Catch Width: 21.5 mm
-
Base Mounting Holes: 2-Ø4 mm (Spacing: 43.5 mm)
-
Catch Mounting Holes: 2-Ø4 mm (Spacing: 8.5 mm)
-
Handle Hole Diameter: Ø2.5 mm
Key Features & Benefits:
-
100% SUS304 Construction: Fully stainless steel body and catch guarantee lifetime rust-proof performance.
-
Ultra-Low Profile: At just 10.3mm high, it is perfect for tight spaces where standard latches would protrude or snag.
-
Secure Mounting: Features 2-Ø4mm base holes and 2-Ø4mm catch holes for a stable, secure installation on flat surfaces.
-
Smooth Grinding Finish: Burr-free surface ensures safe handling and a sleek, industrial appearance.
-
Compact & Reliable: The 43.5mm base length provides a secure hold without requiring a large footprint.
Application Guide:
The DK624 SUS304 Toggle Latch is the definitive choice for:
-
Electronics Enclosures: Secure compact control boxes, server racks, and distribution panels.
-
Medical & Laboratory Equipment: The grinding finish meets strict hygiene standards and the low profile prevents snagging on wires or tubing.
-
Marine & Outdoor Enclosures: Withstands saltwater and harsh weather conditions.
-
Industrial Control Cabinets: Ideal for tight spaces where standard latches cannot fit.
-
Transportation: RV compartments, truck toolboxes, and train interiors.
Installation and Maintenance:
Installation is straightforward: mount the latch base using the 2 x Ø4mm holes and the catch using the 2 x Ø4mm holes. The 43.5mm and 8.5mm hole spacings ensure a precise fit. The SUS304 material requires no lubrication. A simple wipe with a damp cloth restores its shine. Regular inspection of the mounting screws is recommended for high-vibration applications.
Frequently Asked Questions (FAQ):
-
Q: What makes this latch “low profile”?
A: The DK624 has a total closed height of only 10.3mm, making it one of the flattest latches in our catalog, ideal for tight spaces. -
Q: Is this latch suitable for outdoor use?
A: Yes, absolutely. The SUS304 stainless steel construction provides excellent resistance to rain, saltwater, and UV exposure. -
Q: What are the dimensions of the mounting holes?
A: The base features 2 x Ø4mm holes, and the catch features 2 x Ø4mm holes.
Conclusion:
When your project demands a reliable, rust-proof, and ultra-low-profile latch for a space-restricted application, the DK624 SUS304 Toggle Latch delivers uncompromising quality. Upgrade your industrial, marine, or medical hardware with this premium stainless steel latch today.
