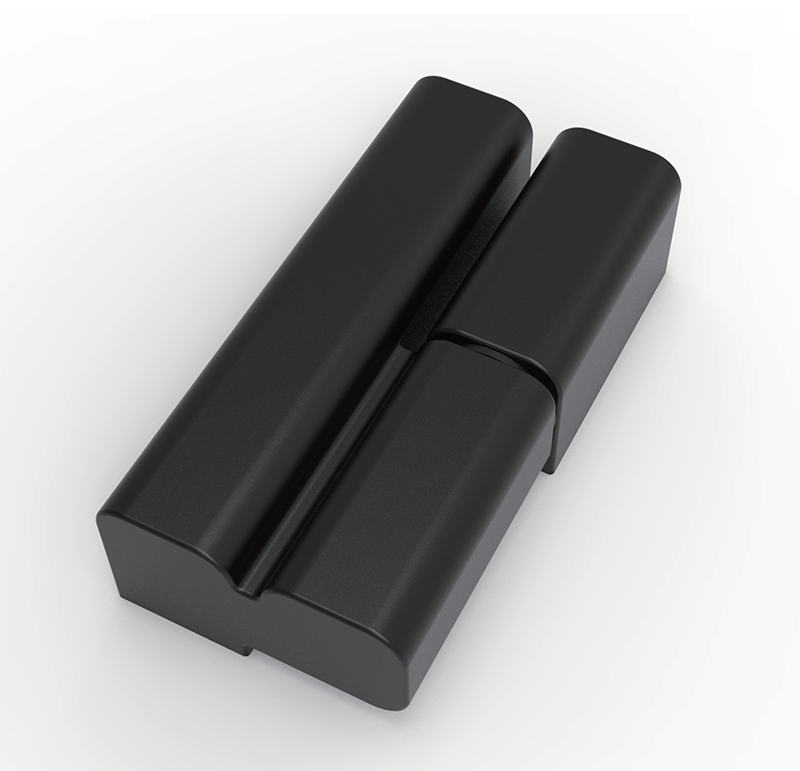

CL203-1L & CL203-1R Zinc Alloy 180° Lift-Off Detachable Industrial Cabinet Hinges

CL203-1 series are split lift-off removable hinges supplied in left-hand (CL203-1L) and right-hand (CL203-1R) versions. Constructed from die-cast zinc alloy with built-in PA nylon gaskets for noise reduction and wear resistance, the whole body adopts durable matte black electrostatic powder coating. It supports 180° full flat opening, and the split pin structure allows the cabinet door to be quickly lifted off without removing screws, greatly facilitating equipment overhaul, panel replacement and deep cleaning work for industrial enclosures.

Complete Technical Parameters

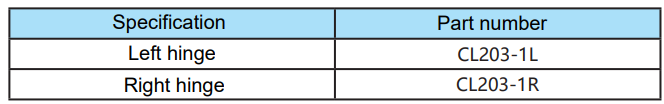

• Model Code: CL203-1L (Left Hinge), CL203-1R (Right Hinge)
• Main Body Material: Die-cast Zinc Alloy
• Auxiliary Component: PA Nylon Anti-friction Gasket
• Surface Treatment: Black Powder Coating (Electrostatic Spraying)
• Max Opening Angle: 180° full flat opening

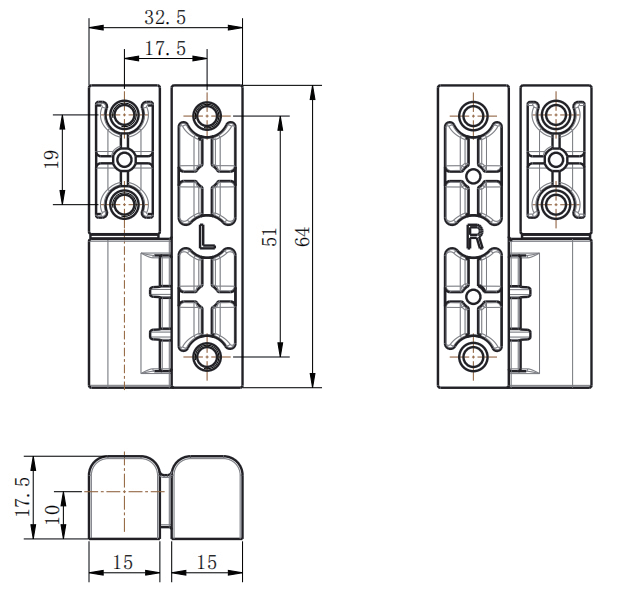

• Overall Dimension: 64mm height × 32.5mm width
• Mounting Holes: 4 screw fixing holes per half hinge
• Structure Type: Vertical split lift-off / removable hinge, L/R handed paired installation

1. Left & Right Hand Split Pair Design

Strictly divided into CL203-1L left opening and CL203-1R right opening to match different cabinet door rotation directions. The internal structural reinforcement ribs improve tensile strength and anti-deformation performance, ensuring stable load bearing even on thick metal cabinet doors. Marked L/R on the product body for quick on-site identification, avoiding installation mistakes.

2. Lift-Off Detachable Quick Disassembly Core Advantage

The biggest highlight is the vertical split lift-off structure. When maintenance is needed, simply lift the cabinet door upward to separate the two hinge halves directly, no tools or screw disassembly required. Perfect for scenarios that demand frequent door removal: such as large electrical cabinets, test equipment enclosures, and instrument boxes that need full internal access.

3. Zinc Alloy Body + PA Nylon Gasket Dual Structure

• Zinc alloy die-cast main body: High dimensional precision, high rigidity, strong impact resistance, stable long-term opening and closing cycles.
• Built-in PA nylon gaskets: Eliminate metal-on-metal friction noise, reduce pivot wear, effectively buffer vibration generated during door closing, extend the hinge service life and lower operating noise.

4. Wear-Resistant Black Powder Coating Finish

Electrostatic powder coating forms a dense protective layer on the zinc alloy surface, superior to ordinary spray paint in scratch resistance, anti-rust performance and UV resistance. The uniform matte black texture fits the minimalist industrial style of most control cabinets, equipment housings and automation devices, and resists fingerprints and daily abrasion.

5. 180° Full Flat Opening for Unobstructed Access

180-degree maximum opening lets the door lay completely flat against the cabinet side panel, fully exposing the internal wiring, circuit breakers and components. Technicians can carry out wiring modification, component replacement and fault inspection without limited space, greatly improving maintenance efficiency.

6. 4-Point Screw Secure Mounting

Each hinge half is fixed with 4 mounting screws, forming a stable quadrilateral stress structure. The force is evenly distributed on the cabinet panel, effectively preventing hinge loosening, door sagging and deflection under long-term frequent use, suitable for medium and heavy metal cabinet doors.

Core Selling Points

1. L/R Handed Independent Models CL203-1L left & CL203-1R right options, clear marking for error-free installation.
2. Lift-Off Quick Detach Mechanism Lift door upward to separate entirely, zero-tool disassembly for easy overhaul.
3. Zinc Alloy + PA Nylon Composite Structure Rigid alloy body with noise-reducing, anti-wear PA gaskets for smoother rotation.
4. 180° Full Flat Wide Opening Maximize internal operating space for equipment debugging and maintenance.
5. Durable Black Powder Coating Anti-scratch, anti-corrosion matte black finish for long service life in indoor industrial environments.

Wide Application Scenarios

1. Low-voltage electrical distribution cabinets, PLC automation control boxes, frequency converter equipment enclosures
2. Test instruments, laboratory equipment housings, medical device protective casings
3. Network server cabinets, communication equipment boxes, industrial terminal operation panels
4. Workshop tool lockers, mechanical equipment safety guard doors, outdoor indoor control boxes
5. Automation production line control cabinets, battery energy storage equipment housings

Installation & Selection Guidance

1. Hand Selection Rule: Confirm door opening direction first; choose CL203-1L for left swing doors, CL203-1R for right swing doors.
2. Quantity Recommendation: Install 2 sets of hinges symmetrically for doors over 500mm width or heavy metal panels to balance load.
3. Environment Adaptation: Zinc alloy powder coated version is for dry indoor use only; choose SUS304 stainless steel lift-off hinges for damp, salt fog or corrosive workshops.
4. Lubrication Maintenance: Drop a small amount of grease on the split pivot regularly to keep lifting and rotating smooth.
5. Opening Clearance Check: Reserve enough side clearance for 180° full opening before bulk purchasing to avoid collision with walls or frames.

Product Summary

CL203-1L/CL203-1R lift-off detachable hinges deliver a practical, cost-effective removable hinging solution for industrial cabinets. With L/R paired split design, 180° full opening, zinc alloy construction with PA noise-dampening gaskets and robust powder coating, it solves the pain point of difficult cabinet door disassembly during maintenance, becoming a standard preferred hardware for enclosure manufacturers focusing on after-sales service and equipment operability.

CL203-1L CL203-1R zinc alloy black powder coat 180 degree lift off detachable cabinet hinge with PA gasket
