CL203-2B Bright Chrome Plated Zinc Alloy 180° Lift-Off Detachable Industrial Cabinet Hinge

CL203-2B is the chrome-plated variant of CL203-2 series universal lift-off split hinge, crafted from solid die-cast zinc alloy with premium bright chrome electroplating surface treatment. It features a vertical split removable pin structure for tool-free door detachment, supports 180° full flat opening, and adopts 4 pre-tapped internal M5 threaded holes for concealed internal installation. The C4.5 chamfered hexagonal outer profile improves scratch resistance and structural strength, widely applied to electrical enclosures, instrument housings and mechanical equipment doors requiring a metallic glossy appearance.

Complete Technical Parameters

• Model Number: CL203-2B
• Main Material: Die-cast Zinc Alloy
• Surface Treatment: Bright Chrome Electroplating
• Maximum Opening Angle: 180° full flat opening

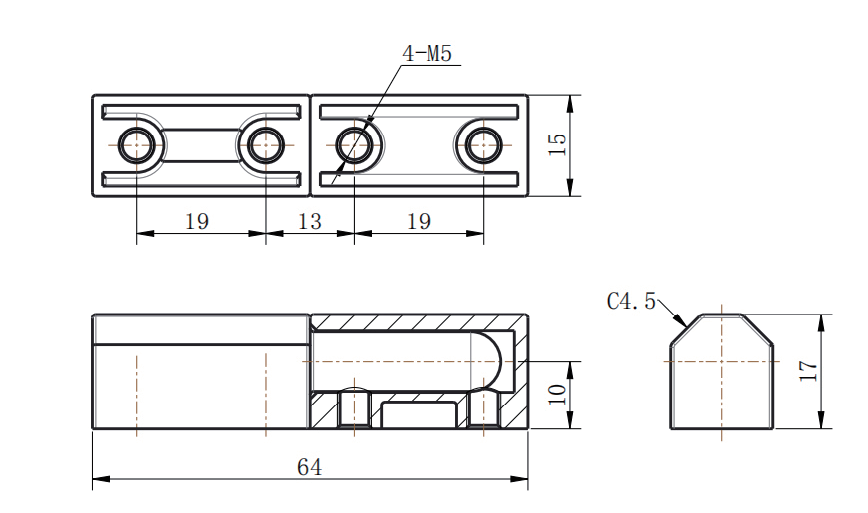

• Overall Dimensions: Total length 64mm, width 15mm, height 17mm with C4.5 corner chamfer
• Mounting Specification: 4 built-in M5 internal threaded holes (4-M5)
• Structure Feature: Universal design without left/right hand distinction, vertical lift-off split hinge

1. Universal Non-L/R One-Size Design

Same as CL203-2 black powder coated version, CL203-2B is a single universal model compatible with both left and right opening cabinet doors. It simplifies purchasing, inventory management and on-site installation, eliminating the risk of wrong-handed selection. The split pivot allows users to lift the door upward directly to separate two hinge halves without any screwdrivers, greatly speeding up equipment disassembly, maintenance and internal overhaul.

2. Bright Chrome Plating Premium Surface Finish

Different from matte black powder coating, bright chrome electroplating delivers a high-gloss silver metallic texture:

• Excellent corrosion resistance, anti-oxidation and rust-proof performance, suitable for slightly humid indoor environments;
• Hardened plating layer resists surface scratches, abrasion and fingerprints;
• Elegant metallic look elevates the overall grade of control cabinets, test devices and automation equipment casings.

3. 4 Internal M5 Threaded Holes Concealed Mounting

Four embedded M5 threaded holes are pre-machined inside the hinge base. Fastening screws are installed from the inner side of the cabinet panel, leaving zero protruding fasteners on the exterior surface for a smooth, clean and streamlined cabinet appearance. The four-point fixed structure evenly distributes bearing load, effectively preventing door sagging, hinge deformation and screw loosening after long-term frequent opening and closing cycles.

4. Reinforced Hexagonal Profile with C4.5 Chamfer

The outer body adopts hexagonal shape with C4.5 edge chamfer:

• Avoid sharp corners to prevent operator scratches during assembly and operation;
• Reinforced wall structure enhances torsion resistance and load capacity for medium-weight metal cabinet doors;
• Compact outline saves installation space on narrow cabinet frames.

5. 180° Full Wide Opening for Unobstructed Maintenance

180-degree maximum swing angle enables the cabinet door to lay flat against the enclosure side panel, fully exposing internal circuit breakers, wiring terminals and electronic components. Maintenance technicians can conduct wiring modification, fault inspection and component replacement with unrestricted operating space.

Core Selling Points

1. Universal L/R Compatibility Single model fits all left & right swing doors, reduces SKU and inventory cost.
2. Tool-Free Lift-Off Quick Disassembly Upward lift to separate door instantly, ideal for frequent maintenance scenarios.
3. High-Gloss Bright Chrome Plating Superior anti-corrosion, scratch-resistant metallic finish for high-end equipment.
4. 4-M5 Concealed Internal Thread Mounting Hidden screw installation for neat exterior, stable 4-point load-bearing structure.
5. Reinforced Chamfered Hexagonal Body Safety anti-scratch corners and stronger mechanical rigidity for long service life.

Typical Application Scenarios

1. Low-voltage distribution cabinets, PLC automation control boxes, inverter equipment enclosures
2. Precision testing instruments, laboratory analytical devices, medical diagnostic equipment casings
3. Network server cabinets, communication equipment boxes, energy storage system housings
4. Industrial automation control panels, mechanical equipment safety protective doors
5. High-end outdoor indoor electrical control boxes requiring metallic decorative appearance

Installation & Selection Guidelines

1. Load Recommendation: Mount two CL203-2B hinges symmetrically for doors over 500mm in length or heavy steel panels to balance weight.
2. Fastener Matching: Use standard M5 machine screws to lock into the pre-tapped internal threaded holes.
3. Environment Limitation: Chrome plated zinc alloy works for dry or mildly humid indoor workshops; select stainless steel hinges for coastal, salt spray or strong corrosive working conditions.
4. Routine Lubrication: Apply a small amount of anti-rust grease on the split pivot regularly to keep lifting and rotation smooth.
5. Pre-Production Check: Reserve sufficient side clearance for 180° full opening before bulk order to avoid door collision with cabinet frames or walls.

Product Summary

CL203-2B bright chrome plated lift-off detachable hinge is the high-gloss aesthetic upgrade version of CL203-2 black model. With universal reversible structure, concealed 4-M5 threaded installation, robust chamfered hexagonal zinc alloy body and durable chrome plating, it perfectly balances practical detachability, hidden assembly and premium visual effect, serving as an ideal hardware choice for high-grade industrial enclosure manufacturers.

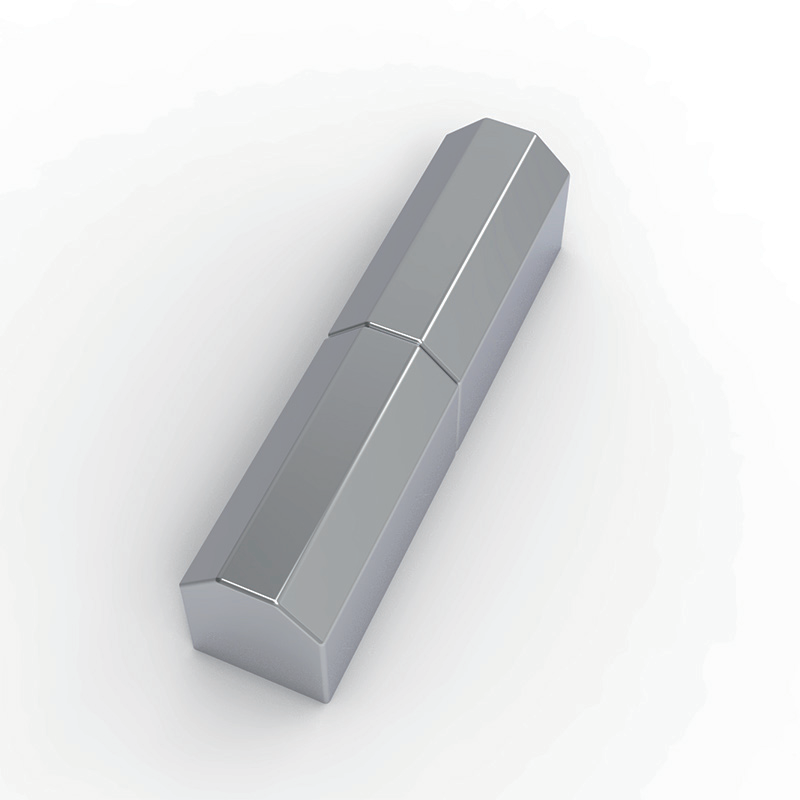

CL203-2B zinc alloy bright chrome plated 180 degree lift off detachable hinge 4-M5 internal threaded holes
