CL203-3L & CL203-3R Zinc Alloy 180° Lift-Off Detachable Heavy-Duty Industrial Cabinet Hinges

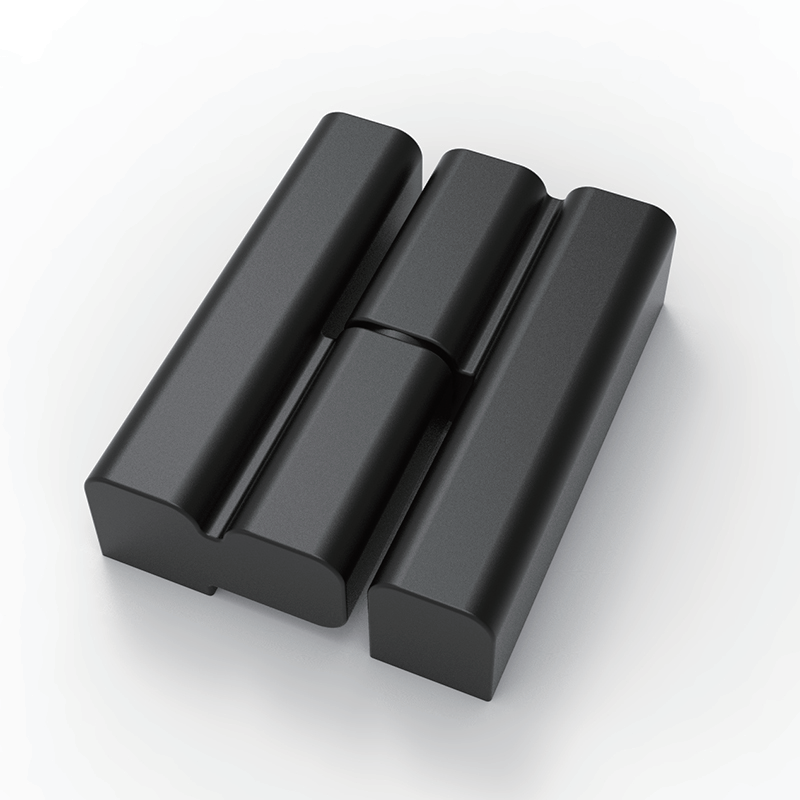

CL203-3 is an upgraded larger-size lift-off split hinge, separately manufactured as left-hand CL203-3L and right-hand CL203-3R for directional installation. Made of high-strength die-cast zinc alloy with built-in PA nylon gaskets for noise elimination and friction reduction, the whole body adopts durable black electrostatic powder coating. Equipped with 4 pre-tapped M5 internal threaded holes for concealed mounting, it supports 180° full flat opening, and the vertical split pin allows tool-free upward lifting to remove cabinet doors, ideal for medium-to-heavy metal equipment boxes requiring regular maintenance and panel removal.

Complete Technical Specifications

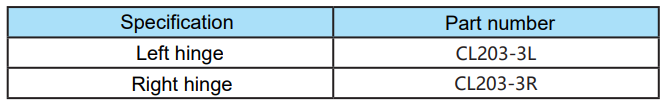

Model Codes: CL203-3L (Left Hinge), CL203-3R (Right Hinge)
Main Body Material: Die-cast Zinc Alloy
Auxiliary Component: PA Nylon Shock-absorbing & Anti-friction Gasket
Surface Treatment: Black Powder Coating (Electrostatic Spraying)
Maximum Opening Angle: 180° full flat opening

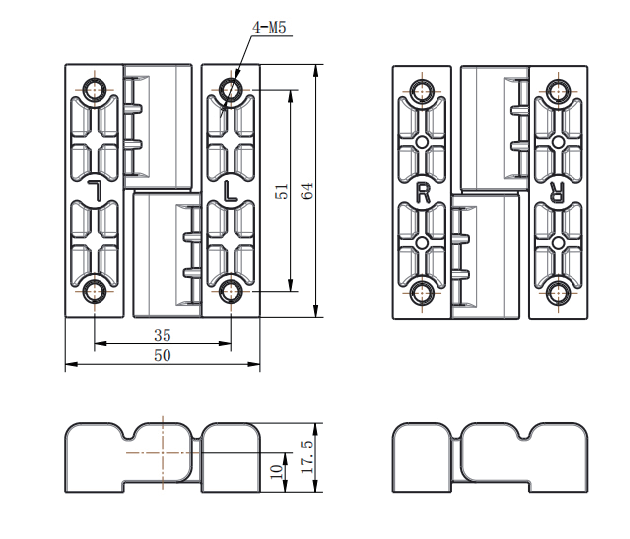

Overall Size: Height 64mm, total width 50mm, thickness 17.5mm
Mounting Standard: 4 built-in M5 internal threaded holes (4-M5)
Structural Type: L/R directional paired vertical lift-off detachable hinge, enlarged load-bearing version

1. Independent Left & Right Hand Paired Design

Strictly divided into CL203-3L left-opening and CL203-3R right-opening versions, clearly marked L/R on the hinge body to avoid installation errors. Compared with CL203-1, CL203-3 features a wider base and thicker casting wall, significantly improved torsion resistance and load capacity, perfectly matching thicker and heavier steel cabinet doors.

2. Tool-Free Lift-Off Quick Disassembly Core Advantage

The split central pivot enables one-step door removal: simply lift the cabinet door vertically upward to separate the two hinge halves without screwdrivers or fastener removal. It greatly simplifies full internal inspection, component replacement, wiring overhaul and deep cleaning of large electrical cabinets and automation equipment.

3. 4 Internal M5 Threaded Holes Concealed Installation

Four embedded M5 threaded holes are reserved on the mounting base, screws are tightened from the inner side of the cabinet panel. No screw heads exposed on the outer surface, maintaining a smooth and neat equipment appearance. The four-point stress dispersion structure effectively prevents hinge deflection, door sagging and loose screws under long-term heavy load and frequent switching.

4. Zinc Alloy + PA Nylon Composite Silent System

Thickened zinc alloy die-cast housing: High rigidity, strong impact resistance and stable dimensional performance for heavy load scenarios.
Inlaid PA nylon gaskets: Isolate metal-to-metal hard contact, eliminate abnormal opening/closing noise, buffer closing vibration and reduce pivot wear, extending the hinge service life drastically.

5. Wear-Resistant Black Powder Coating Finish

Electrostatic powder spraying forms a compact protective layer on the zinc alloy surface, featuring superior scratch resistance, anti-rust and anti-corrosion ability compared with ordinary spray paint. The matte black industrial style matches most control cabinets, power distribution boxes and mechanical devices, resisting fingerprints and daily mechanical abrasion.

6. 180° Full Wide Unobstructed Opening

180-degree maximum swing angle lets the cabinet door flip flat against the enclosure side wall, fully exposing internal circuit breakers, wiring terminals and electronic modules. Maintenance staff can perform debugging and repair work with ample operating space.

Core Selling Points

Directional L/R Separate Models CL203-3L left & CL203-3R right marked for error-free directional assembly.
Upgraded Heavy-Duty Load Structure Wider base and thicker alloy body for heavier metal cabinet doors.
Tool-Free Lift-Off Instant Door Removal Vertical lift to detach door directly, maximize maintenance efficiency.
4×M5 Concealed Internal Thread Mounting Hidden screw installation for tidy exterior, stable four-point load bearing.
PA Gasket Silent Rotation + Durable Black Powder Coating Noise reduction, anti-wear operation, scratch and corrosion resistant industrial finish.

Application Scope

Large low-voltage distribution cabinets, PLC integrated control cabinets, frequency converter and automation equipment enclosures
Industrial testing equipment, large laboratory instruments, medical device protective casings
Network server racks, communication base station boxes, energy storage battery cabinets
Heavy mechanical equipment safety guard doors, workshop large tool lockers
Outdoor indoor integrated electrical control boxes with medium-heavy door weight

Installation & Selection Guidance

Hand Selection Rule: Select CL203-3L for left-swing doors, CL203-3R for right-swing doors according to cabinet opening direction.
Quantity Suggestion: Install 2 sets symmetrically for doors over 600mm width or thick steel panels to share load evenly.
Screw Matching: Use standard M5 machine screws to lock into pre-tapped internal threaded holes.
Environment Adaptation: Zinc alloy powder coated version for dry indoor use only; choose stainless steel lift-off hinges for damp, coastal or corrosive workshops.
Routine Maintenance: Add a small amount of lubricating grease to the split pivot regularly to keep lifting and rotation smooth.
Clearance Check: Reserve enough side gap before bulk order to avoid collision during 180° full opening.

Product Summary

CL203-3L/CL203-3R is the enlarged heavy-duty upgrade of the CL203 series lift-off hinges, adopting L/R paired directional design, thickened high-strength zinc alloy body, PA noise-reducing gaskets and 4-point concealed M5 threaded mounting. It solves the load-bearing insufficiency of small-size detachable hinges and realizes convenient tool-free door disassembly, becoming the preferred standard hardware for heavy-duty industrial enclosure manufacturers.

CL203-3L CL203-3R zinc alloy black powder coat 180 degree L/R lift off detachable hinge with PA gasket 4-M5 threaded holes
