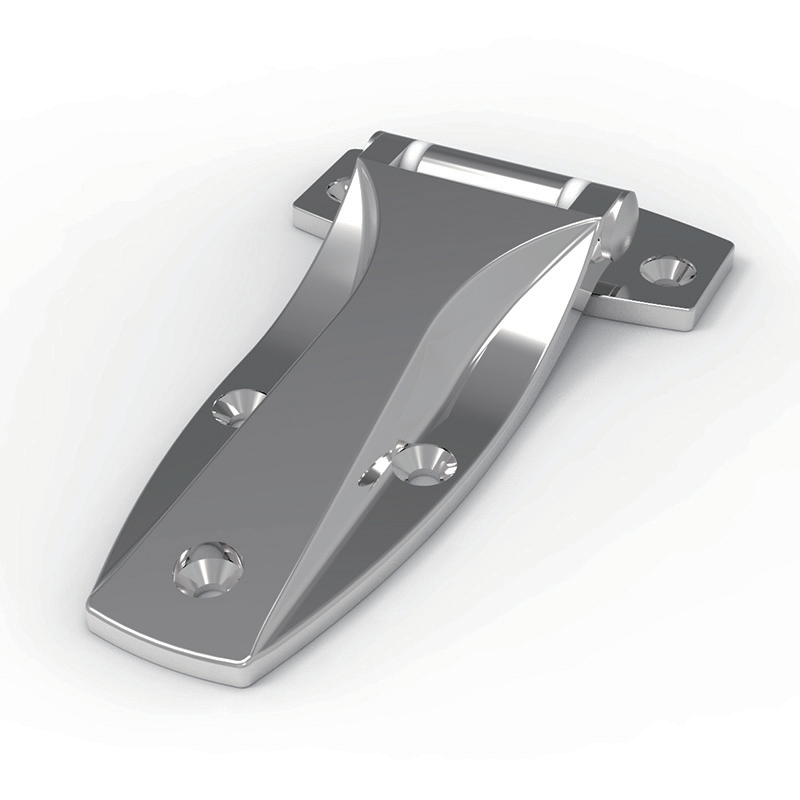

CL142-2 Mirror Polished Stainless Steel One-Piece Cast Heavy-Duty Streamline Strap Industrial Hinge

CL142-2 is the compact upgraded model of the CL142 series cast strap hinge, integrally cast from solid stainless steel with high-brightness mirror polishing treatment. It adopts ergonomic streamlined bending arm structure, equipped with 6 composite mounting holes (Φ11.5×90° countersunk sink holes and Φ6.5 through holes), precision rotating shaft supports 360° unrestricted free opening, excellent torsion resistance and heavy load capacity. Widely applied to marine equipment cabinets, food processing machinery, pharmaceutical hygiene enclosures, outdoor waterproof distribution boxes, and medium-sized heavy-duty metal equipment protective covers.

Detailed Technical Parameters

• Model No.: CL142-2
• Raw Material: Solid Cast Stainless Steel
• Surface Treatment: Mirror Polishing (mirror bright passive anti-rust layer)

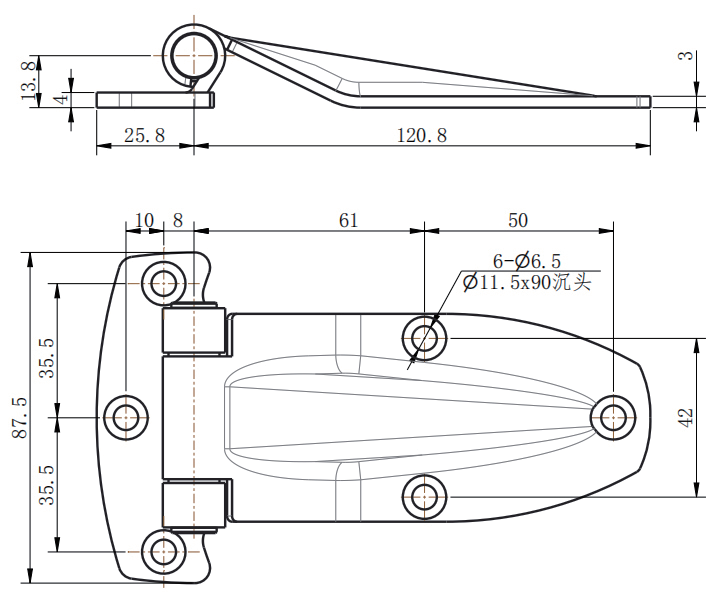

• Total Overall Length: 146.6mm
• Mounting Hole Configuration: 6 fixing holes in total 6 × Φ11.5 90° countersunk recessed holes, 6 × Φ6.5 through holes
• Rotation Performance: 360° free rotation, no mechanical opening angle stop
• Structural Form: One-piece cast heavy-duty strap hinge

1. Material & Anti-Corrosion Performance

Solid stainless steel casting fundamentally eliminates rust and deformation risks. Mirror polishing smoothes the metal surface and forms a dense anti-oxidation passive film, effectively resisting rainwater splash, coastal salt fog, damp workshop atmosphere, and weak acid/alkali corrosion. It is the preferred hardware for sanitary-grade, outdoor and marine working conditions where carbon steel hinges cannot meet durability requirements.

2. Integrated Cast Heavy-Duty Structural Advantages

One-time casting molding greatly improves overall rigidity, anti-shear and anti-torsion performance, can stably bear the weight of medium and large cabinet doors and equipment flip covers. The streamlined curved arm optimizes force transmission during opening and closing, reduces shaft wear and fatigue loss under long-term frequent use, and the curved outline also reduces collision risk and wind resistance for protruding cabinet doors.

3. Dual-Type Composite Countersunk Hole Installation

Dual hole design maximizes assembly flexibility for different panel materials:

1. Φ11.5×90° countersunk holes: Install flat head screws to fully sink the screw top, keep the cabinet outer surface flat and smooth, prevent scratching operators or external abrasion;
2. Φ6.5 through holes: Pass through bolts for double-nut locking, suitable for thick steel plates, aluminum alloy frames and high-vibration mechanical equipment to avoid loose falling off. Six-point symmetrical stress dispersion prevents hole tearing and plate deformation under heavy load.

4. Smooth Full-Angle Free Rotation

Precision lathed central spindle runs smoothly without jamming or abnormal noise, no built-in limit stopper, the door panel can be fully flipped open to 360 degrees, which is convenient for equipment internal overhaul, pipeline wiring, component disassembly and cleaning maintenance.

Core Selling Points

1. Premium Mirror Polished Stainless Steel Strong anti-rust and anti-corrosion ability, adapt to marine, food hygiene, outdoor humid harsh environments.
2. One-Piece Cast High-Strength Body Excellent rigidity and load capacity, durable for long-term heavy load and frequent switching.
3. Streamlined Ergonomic Appearance Elegant curved shape, lower wind resistance, safer operation, improve equipment overall grade.
4. 6-Hole Countersunk Hidden Mounting Flat flush installation optional, stable locking, outstanding anti-loosening effect.
5. Unlimited 360° Rotation Fully open design, greatly simplify equipment inspection and after-sales maintenance work.

Main Application Scenarios

1. Yacht & ship electrical junction boxes, offshore platform anti-corrosion equipment cabinets, marine storage hatches
2. Food production line protective covers, beverage filling machinery casings, pharmaceutical clean room stainless steel enclosures
3. Outdoor mobile power distribution cabinets, engineering waterproof control boxes, sewage treatment equipment housings
4. Automation machine tool safety guards, hydraulic station protective shells, generator auxiliary metal boxes
5. Workshop medium-sized heavy tool cabinets, logistics equipment turnover boxes, agricultural machinery protective covers

Installation & Selection Guidelines

1. Environment Selection: Recommended for all damp, outdoor, salt spray, hygiene and slightly corrosive working scenes; indoor dry ordinary scenarios can choose zinc-plated carbon steel hinges for cost control.
2. Screw Matching Rules: Use 90° countersunk flat head screws for recessed holes, hexagon bolts for through holes to achieve the most reliable fastening effect.
3. Load Installation Suggestion: For wide or overweight door panels, install two CL142-2 hinges symmetrically to share bearing pressure and prolong service life.
4. Rotation Reminder: This model has no fixed opening limit block, evaluate the risk of door over-swing collision before mass order placement.

Product Summary

CL142-2 is the compact size variant of CL142 series heavy cast stainless steel strap hinges. It inherits mirror polished anti-corrosion treatment, integrated high-strength casting, streamlined modeling and multi-hole hidden installation advantages, providing cost-effective long-life hinge solutions for medium-sized industrial equipment, marine and food-grade anti-corrosion cabinets.
