CL158-1 Zinc Plated Steel Heavy-Duty Oil Cup Butt Industrial Cabinet Hinge

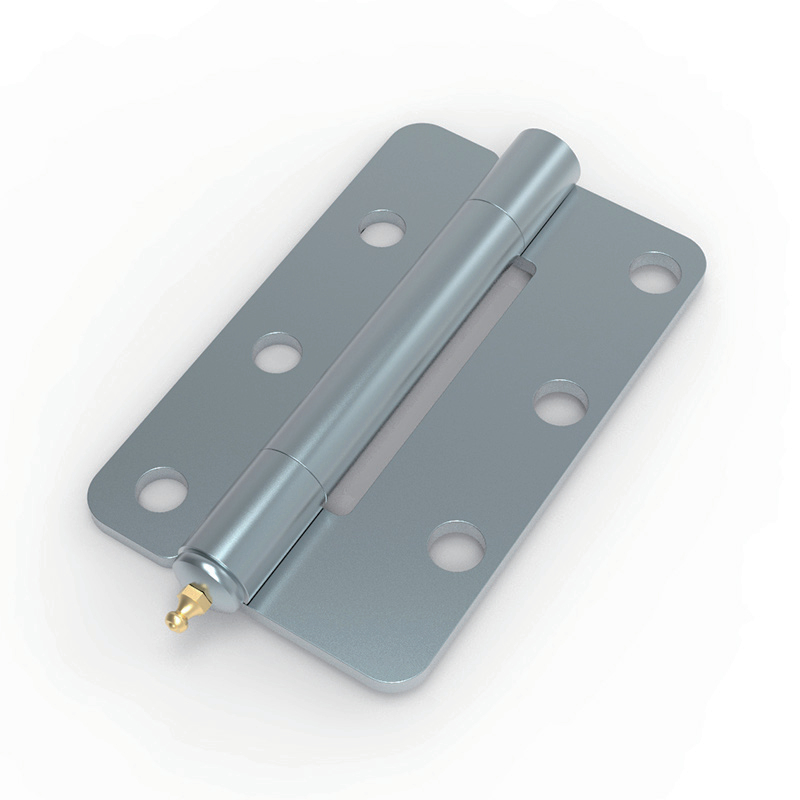

CL158-1 is a robust heavy-duty butt hinge manufactured from thick carbon steel with protective zinc plating. It features a built-in oil cup for convenient lubrication, a generous 150mm length, and six symmetrical mounting holes for exceptional load-bearing capacity. This hinge is designed for heavy equipment doors, industrial machinery enclosures, large control cabinets, and other demanding applications requiring durability and smooth operation.

Core Technical Specifications

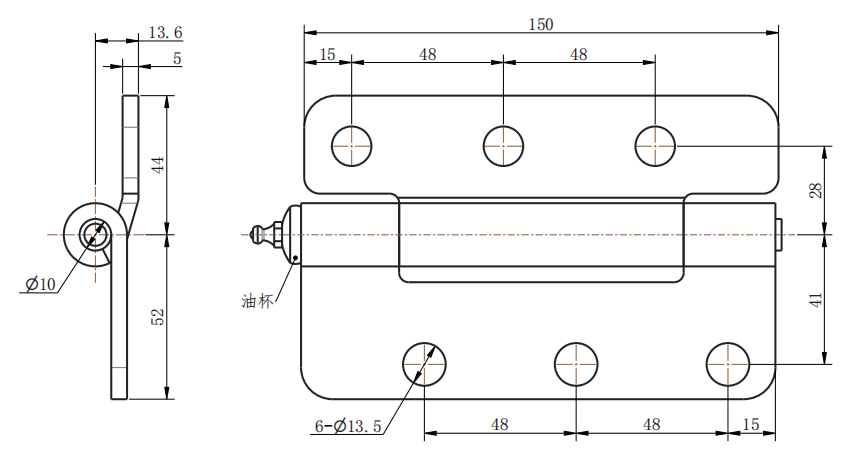

Model Number: CL158-1
Material: Carbon Steel (Hinge body and shaft)
Surface Treatment: Zinc Plated (Electro-galvanized)
Total Length: 150mm
Total Width: 50mm
Thickness: 15mm
Mounting Holes: 6 holes total (Φ13.5)
Special Feature: Integrated oil cup for lubrication
Opening Mode: 360° free rotation, no mechanical stop

1. Material & Anti-Corrosion Performance

Constructed from heavy-gauge carbon steel, this hinge offers superior strength and rigidity to support heavy doors and panels. The zinc plating provides a reliable barrier against rust and corrosion, making it suitable for use in indoor industrial environments, workshops, and other dry to moderately humid conditions.

2. Integrated Oil Cup for Long-Term Lubrication

The built-in oil cup allows for easy periodic lubrication of the hinge pin. This feature ensures smooth, quiet operation and prevents seizing or jamming even after years of frequent use, significantly extending the hinge’s service life and reducing maintenance requirements.

3. Heavy-Duty 6-Point Mounting

With six strategically placed mounting holes, this hinge distributes weight and stress evenly across the mounting surface. This configuration provides exceptional stability and resistance to pull-out, making it ideal for heavy, large, or frequently opened doors.

4. Generous Size and Robust Construction

Measuring 150mm in length, this hinge provides ample surface area for secure mounting and excellent load distribution. The thick steel construction ensures it can withstand the rigors of industrial use without bending or failing.

Core Selling Points

Heavy-Duty Carbon Steel Construction: Provides exceptional strength and load-bearing capacity for heavy equipment doors.
Zinc Plated for Corrosion Resistance: Reliable protection against rust in industrial environments.
Integrated Oil Cup: Allows for easy lubrication, ensuring smooth operation and long service life.
6-Point Secure Mounting: Distributes load evenly for maximum stability and security.
Generous 150mm Length: Provides ample mounting surface and load distribution for large panels.

Typical Application Scenarios

Heavy industrial machinery doors and access panels
Large electrical control cabinets and switchgear enclosures
Industrial storage lockers and heavy-duty tool cabinets
Agricultural equipment and construction machinery housings
Generator set enclosures and power distribution equipment

Installation & Selection Guidelines

Load Capacity: This hinge is designed for heavy-duty applications. For extremely heavy or oversized doors, consider using multiple hinges for added support.
Lubrication: Regularly add lubricating oil through the oil cup to maintain smooth operation.
Screw Selection: Use high-strength bolts or screws appropriate for the mounting surface material and the expected load.
Environment: Zinc plating is suitable for indoor and moderately humid environments. For outdoor or highly corrosive environments, consider a stainless steel alternative.

Product Summary

CL158-1 is a robust, heavy-duty butt hinge engineered for demanding industrial applications. Its combination of thick carbon steel construction, corrosion-resistant zinc plating, integrated lubrication system, and secure six-point mounting make it an ideal choice for heavy equipment doors, large control cabinets, and other applications requiring exceptional strength and durability.
