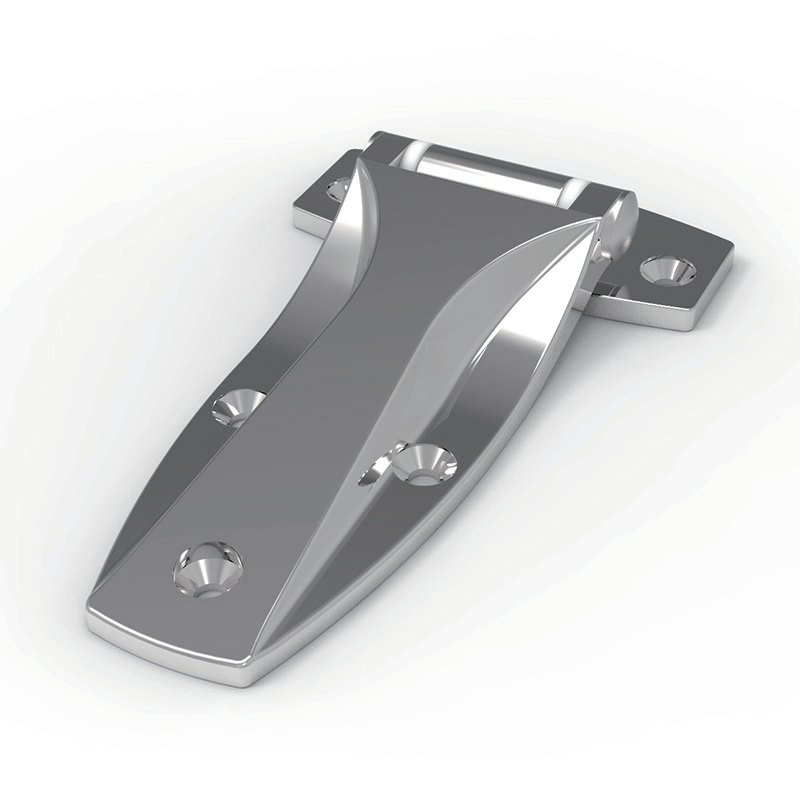

CL142-1 Mirror Polished Stainless Steel Heavy-Duty Streamline Strap Industrial Hinge

CL142-1 is a large-size heavy-duty strap hinge manufactured from solid stainless steel with high-gloss mirror polishing treatment. Adopting integrated one-piece casting forming and streamlined curved arm design, it equips 6 standard mounting holes (including 6×Φ10.5 90° countersunk holes and Φ5.2 through holes), 360° free rotating shaft without angle limit, outstanding tensile and load-bearing performance. Widely applied to mechanical equipment protective covers, marine cabinets, food machinery housings, large electrical control boxes, outdoor waterproof enclosures and heavy metal tool boxes.

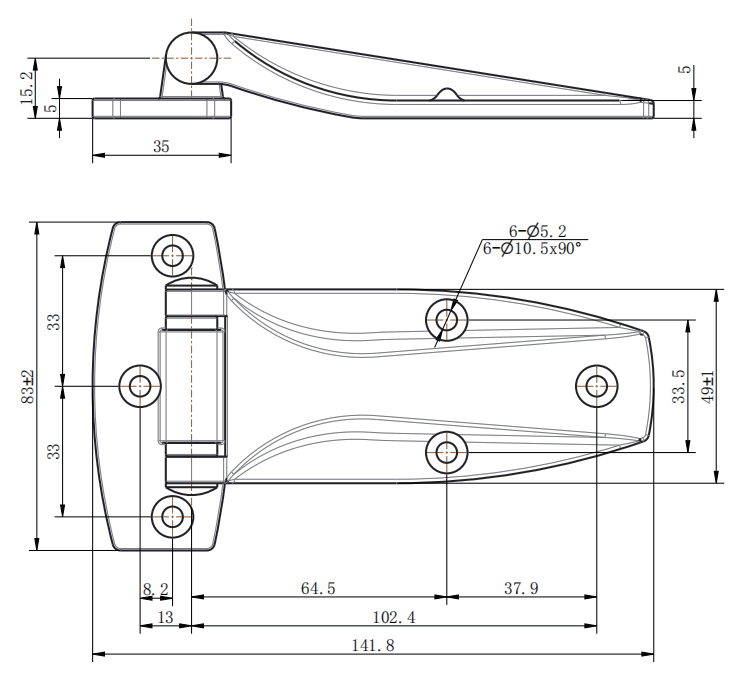

Core Technical Specifications

• Model Number: CL142-1
• Material: Solid Stainless Steel
• Surface Treatment: Mirror Polishing (High-gloss mirror finish)
• Overall Total Length: 141.8mm
• Mounting Holes: 6 holes total 6 × Φ10.5 90° countersunk recessed holes + 6 × Φ5.2 through holes
• Structure: Integrated cast strap hinge, free rotation (no stop angle)
• Maximum Opening Range: 360° unrestricted rotation

1. Material & Anti-Corrosion Advantage

Solid stainless steel raw material fundamentally avoids rust deformation. Mirror polishing eliminates surface burrs, improves surface compactness, forms a dense passive protective film, greatly enhances resistance to moisture, water splash, salt spray, weak acid and alkali erosion. Perfect for outdoor, coastal, marine, food hygiene and humid workshop environments where carbon steel hinges fail quickly.

2. Heavy-Duty Casting & Streamline Structure

One-piece casting greatly boosts structural strength and anti-torsion ability, can stably support overweight and oversized cabinet doors. The curved streamline arm not only optimizes force bearing distribution to reduce shaft abrasion during frequent opening and closing, but also improves overall appearance, reduces wind resistance and collision probability for protruding cabinet doors.

3. Diversified Countersunk Hole Installation Design

Dual hole layout brings maximum assembly flexibility:

• Φ10.5×90° countersunk holes for flat head screws, fully sink screw heads to keep surface flat and scratch-free;
• Φ5.2 through holes for bolt penetration locking, suitable for thick plates and high-vibration equipment requiring double nut fastening. Six-point symmetrical fixing disperses stress evenly, preventing loose holes or plate tearing under long-term heavy load.

4. Free Rotation & Long Service Life

Precision machined central pivot shaft rotates smoothly without jamming, no built-in mechanical limit block, allowing full 360° door flipping. Ideal for equipment covers that need fully opened for overhaul, cleaning and component replacement.

Core Selling Points

1. Premium Mirror Polished Stainless Steel Excellent rust & corrosion resistance, applicable to harsh wet, outdoor, marine and sanitary scenarios.
2. Solid Cast Heavy-Duty Construction High rigidity, anti-deformation, super load capacity for large heavy cabinet panels.
3. Streamlined Ergonomic Appearance Beautiful curved design, lower wind resistance, safer operation, premium equipment grade texture.
4. 6-Hole Composite Countersunk Mounting Flat hidden installation optional, firm locking, strong anti-loosening performance.
5. Smooth 360° Free Rotation Unlimited opening angle, convenient for full equipment inspection and maintenance.

Typical Application Scenarios

1. Marine ship electrical boxes, offshore platform anti-corrosion equipment cabinets, yacht storage hatches
2. Food & beverage processing machinery protective covers, pharmaceutical production line hygiene enclosures
3. Large industrial PLC control cabinets, generator set outer casings, hydraulic equipment protective housings
4. Outdoor mobile power distribution boxes, construction engineering metal boxes, wastewater treatment control cabinets
5. Heavy workshop tool lockers, transportation equipment containers, agricultural machinery protective shells

Installation & Selection Guidelines

1. Environment Selection: Prioritize this mirror polished stainless steel version for all damp, outdoor, salt fog, hygienic and slightly corrosive working conditions.
2. Screw Matching: Use 90° countersunk flat head screws for recessed holes, hex bolts for through holes for most stable fixation.
3. Load Installation: For extra-wide or ultra-heavy door panels, install two CL142-1 hinges symmetrically to share bearing load.
4. Rotation Reminder: This model has no fixed opening stop, confirm no risk of over-swing collision before mass ordering.

Product Summary

CL142-1 is a high-end heavy-duty stainless steel strap hinge focused on harsh environment and large load demands. It integrates mirror polished anti-corrosion surface, solid cast high-strength body, streamlined appearance and flexible 6-hole hidden installation, providing long-lasting, high-reliability hinging solution for premium industrial, marine and food-grade equipment cabinets.
