CL201-8 & CL201-8S 120° Wide Opening Concealed Embedded Industrial Cabinet Hinges

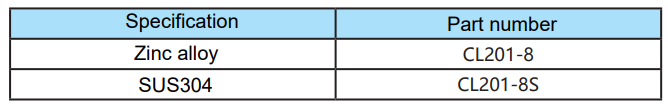

CL201-8 series are heavy-duty concealed embedded hinges with 120-degree wide opening angle, available in two material versions to meet different environment requirements: CL201-8 (Zinc Alloy, White Zinc Plated Finish) and CL201-8S (SUS304 Stainless Steel, Magnetic Polished Finish). They adopt fully hidden embedded installation structure, with the entire hinge body recessed inside the cabinet frame and door, leaving no exposed hardware on the exterior. Equipped with 2 M6 heavy-duty external threaded studs for strong through-panel mounting, they are widely used in large electrical control cabinets, distribution boxes, server enclosures, heavy equipment housings and all industrial equipment requiring clean seamless appearance and wide opening access.

Complete Technical Specifications

• Model Series: CL201-8 / CL201-8S

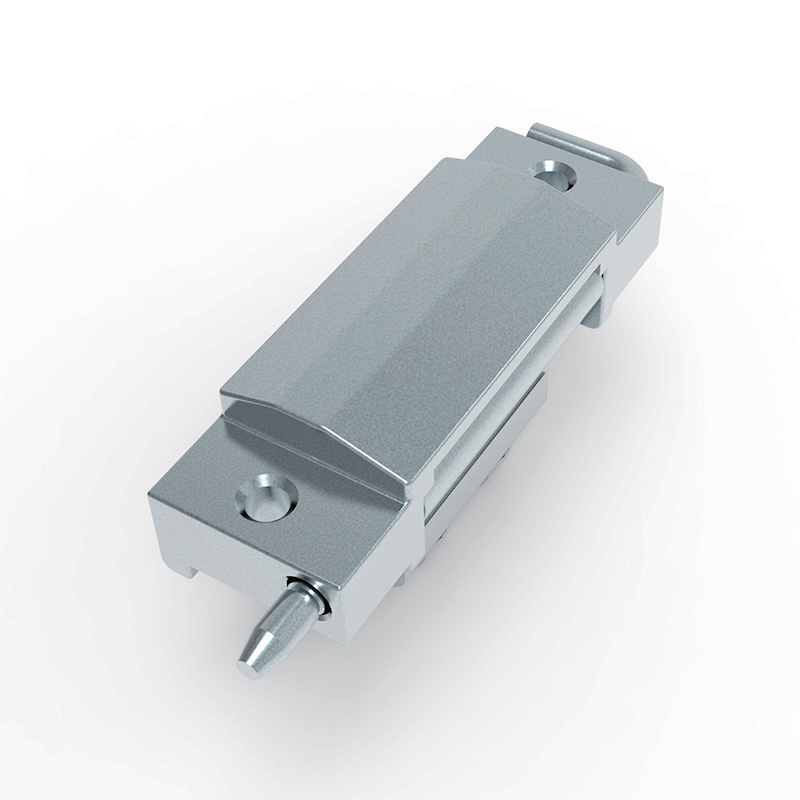

• Material Option 1: Die-cast Zinc Alloy (CL201-8) Surface: White Zinc Plated (Electro-galvanized)
• Material Option 2: SUS304 Stainless Steel (CL201-8S) Surface: Magnetic Polishing (Mirror bright finish)
• Maximum Opening Angle: 120° wide opening

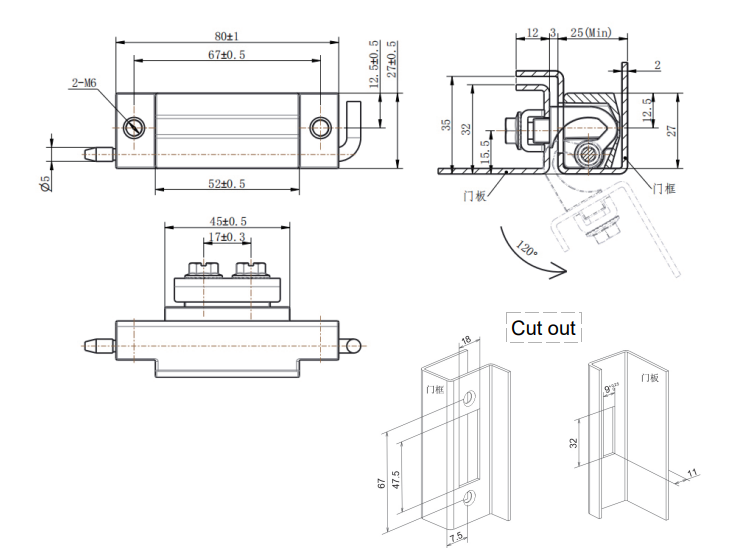

• Overall Length: 80mm
• Overall Height: 35mm
• Mounting Configuration: 2 × M6 external threaded studs + 1 × Φ5 positioning pin
• Embedded Depth: 13.5mm
• Structure Type: Fully concealed embedded hinge with 120° angle limit

1. Fully Concealed Hidden Installation Advantage

The core feature of CL201-8 series is their completely embedded structure. After installation, no hinge components are visible from the outside of the cabinet, creating a seamless, clean and premium appearance. This hidden design not only improves overall equipment aesthetics, but also enhances anti-tampering security by eliminating external prying points, and reduces dust and moisture accumulation on exposed hardware surfaces.

2. Two Material Grades for Full Scenario Coverage

• CL201-8 Zinc Alloy Version: Die-cast zinc alloy body with white zinc electroplated finish, cost-effective choice for indoor dry workshops, standard electrical rooms and non-corrosive industrial environments. Zinc alloy provides good strength and dimensional accuracy at lower procurement cost.
• CL201-8S SUS304 Stainless Steel Version: Premium SUS304 stainless steel construction with magnetic polishing bright finish, excellent resistance to rust, moisture, water splash and weak acid/alkali corrosion, suitable for outdoor cabinets, coastal salt fog atmosphere, food machinery and wet production workshops.

3. 120° Wide Opening Angle Design

Compared with standard 90° concealed hinges, CL201-8 series features a wider 120° maximum opening angle, providing more unobstructed access to cabinet interior for wiring, component replacement, equipment debugging and routine maintenance. The built-in mechanical stop mechanism strictly restricts maximum opening at 120°, preventing over-swing that pulls internal wires, damages electrical components or scratches cabinet body.

4. M6 Heavy-Duty Stud Quick Mounting

Two M6 large-diameter external threaded studs provide stronger load-bearing capacity and higher fastening strength compared with smaller M4/M5 stud hinges. They allow fast installation by tightening nuts from the back side of the cabinet panel, no need for tapping threads on thick metal plates. The Φ5 auxiliary positioning pin ensures precise alignment during assembly, greatly improving production line installation efficiency.

5. Precision Die-Cast / Stamped Construction

Zinc alloy die-casting and stainless steel precision stamping both deliver high structural rigidity, accurate dimensional tolerance and smooth rotation performance. The precision machined pivot shaft runs silently and durably for thousands of opening-closing cycles.

Core Selling Points

1. 120° Wide Opening Access Wider than standard 90° hinges, more internal operation space for maintenance and debugging.
2. Fully Concealed Seamless Appearance No exposed hardware on cabinet exterior, premium clean look, enhanced anti-tampering security.
3. Two Material Options Economical zinc alloy for indoor standard use; premium SUS304 stainless steel for outdoor/corrosive environments.
4. M6 Heavy-Duty Stud Mounting Stronger load capacity, higher fastening strength, suitable for larger heavier cabinet doors.
5. Precision Durable Construction Smooth silent rotation, long service life, stable performance under frequent use.

Typical Application Scenarios

1. Large low-voltage electrical distribution cabinets, complete set PLC control boxes, heavy inverter automation enclosures
2. Server racks, network communication cabinets, data center equipment housings
3. Outdoor waterproof distribution boxes, solar power equipment, street light control boxes
4. Heavy industrial automation equipment control panels, large machine tool operation boxes
5. Food processing machinery, pharmaceutical production line cabinets, hygiene-grade equipment

Installation & Selection Guidelines

1. Material Selection Rule: Choose CL201-8 zinc alloy version for dry indoor only; select CL201-8S SUS304 for outdoor, high humidity, salt fog and corrosive sites.
2. Groove Preparation: Reserve matching embedded groove on cabinet door and frame according to hinge outline dimensions for flush installation.
3. Stud Matching: Drill 2 through holes for M6 studs and 1 Φ5 positioning pin hole on the cabinet panel, fasten with lock nuts from the back side for anti-loosening.
4. Load Suggestion: For wide or heavy door panels, install two CL201-8 hinges symmetrically for balanced load bearing.
5. Angle Confirmation: 120° wide opening design, verify side clearance before bulk order to avoid wall or frame collision.

Product Summary

CL201-8 series 120° concealed hinges provide a dual-material, heavy-duty hidden installation solution for industrial electrical cabinets. Combining fully embedded seamless design, 120° wide opening access, M6 heavy-duty stud mounting and two material grade options, they meet both indoor cost control and outdoor anti-corrosion durability demands for larger cabinets, becoming a standardized premium hardware for enclosure manufacturers pursuing clean appearance and reliable heavy-load performance.
