MZ316-1 Series Zinc Alloy Bright Chrome Plated IP54 Quarter-Turn T-Handle Industrial Cabinet Lock with Dual Black Textured Grips

Full Technical Specifications

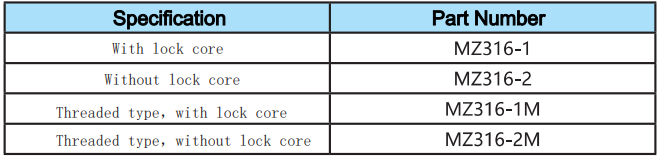

• Model Variants:
  • MZ316-1: With lock core, C8 smooth shaft (8mm with flat), L=80mm customizable, total length 133.5mm
  • MZ316-2: Without lock core, C8 smooth shaft, L=80mm customizable, total length 133.5mm
  • MZ316-1M: Threaded type, with lock core, M10 threaded shaft, L=62mm customizable, total length 115.5mm
  • MZ316-2M: Threaded type, without lock core, M10 threaded shaft, L=62mm customizable, total length 115.5mm
• Housing and Handle Material: Zinc alloy
• Shaft and Nut Material: Steel
• Surface Finish: Bright chrome plated housing and handle; white zinc plated shaft and nut; black textured dual grip inserts
• Protection Rating: IP54 (dust-protected, splash water resistant)
• Operation Type: Quarter-turn (90° rotation) opening or closing
• Handle Type: Aerodynamic oval T-handle with dual black textured grip inserts, 30mm width × 99.5mm height
• Shaft Options:
  • C8 smooth shaft: 8mm diameter with flat, L=80mm (customizable)
  • M10 threaded shaft: M10 thread, L=62mm (customizable)

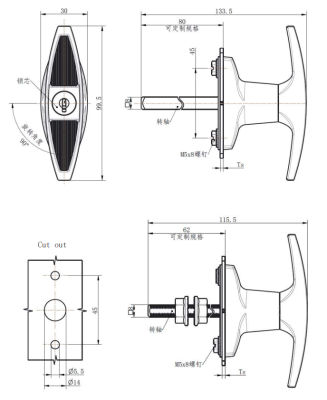

• Mounting Type: Screw mounting — Φ14mm round cutout + 2×Φ5.5mm screw holes (45mm spacing), with M5×8 screws
• Additional Dimensions: 45mm, Ts (threaded section)
• Rotation Angle: 90°
• Lock Core: Integrated on T-handle face (锁芯，for MZ316-1 and MZ316-1M variants)
• Core Features: Zinc alloy bright chrome construction, dual black textured non-slip grips, IP54 protection, aerodynamic oval T-handle, quarter-turn 90° operation, four variants (lock core × shaft type), C8 smooth or M10 threaded shaft, customizable shaft length, screw mounting, vibration resistant

Core Product Features & Advantages

1 High-Quality Zinc Alloy Construction with Bright Chrome Plating

The housing and oval T-handle are manufactured from high-pressure die-cast zinc alloy, providing excellent structural rigidity, impact resistance and dimensional stability. The bright chrome plating creates a highly reflective, premium metallic surface that is highly resistant to scratches, abrasion and corrosion, while providing a clean, professional appearance that elevates the visual quality of any equipment enclosure.

2 Dual Black Textured Grip Inserts for Non-Slip Two-Handed Operation

The integrated dual black textured grip inserts on both sides of the oval T-bar provide a comfortable, non-slip operating surface that enhances traction even when wearing work gloves or operating with wet hands. The dual-grip design allows operators to choose either side for rotation, improving accessibility and reducing the effort required for quarter-turn operation, while the black inserts create a striking visual contrast against the bright chrome handle for a premium, modern appearance.

3 Aerodynamic Oval T-Handle for Enhanced Leverage

The aerodynamic oval T-handle design (99.5mm height, 30mm width) provides enhanced leverage for easy, low-effort quarter-turn operation. The sleek, curved shape fits naturally in the hand, allowing operators to apply consistent rotational force for smooth, reliable latching and unlatching. The extended handle height is particularly beneficial for heavy doors or high-torque cam configurations.

4 Screw Mounting for Secure Vibration-Resistant Installation

The screw mounting design features a Φ14mm round cutout with 2×Φ5.5mm screw holes (45mm spacing) and M5×8 mounting screws, ensuring secure, stable panel installation. The screw fixation prevents the lock housing from rotating during quarter-turn operation and provides a robust, vibration-resistant connection suitable for heavy machinery and high-vibration industrial environments.

5 IP54 Protection for Indoor Industrial Environments

The IP54 protection rating ensures the lock is dust-protected and resistant to splash water from any direction, making it suitable for indoor industrial environments including factories, workshops and equipment rooms where dust and occasional moisture exposure may occur. The robust construction provides reliable performance in standard industrial conditions.

6 Four Functional Variants with Customizable Shaft Length

The lock is available in four carefully engineered variants combining lock core options and shaft types, with customizable shaft length (可定制规格) for both C8 smooth (80mm standard) and M10 threaded (62mm standard) shafts:

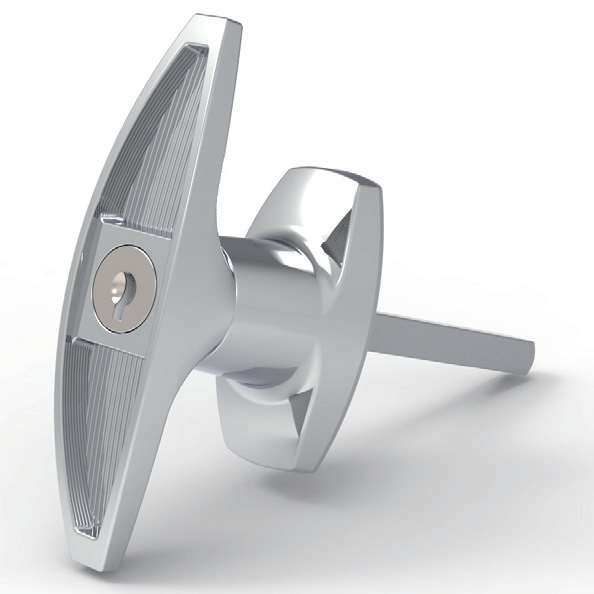

• MZ316-1 (With lock core, C8 smooth shaft): Keyed security with standard smooth shaft for cam engagement

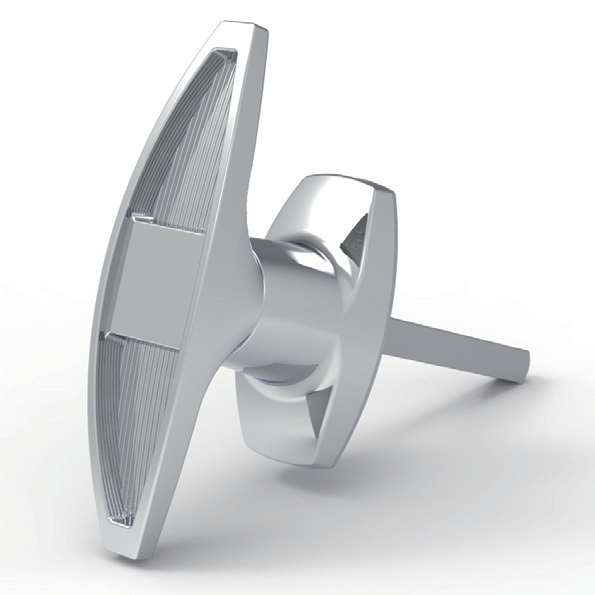

• MZ316-2 (Without lock core, C8 smooth shaft): Keyless operation with standard smooth shaft

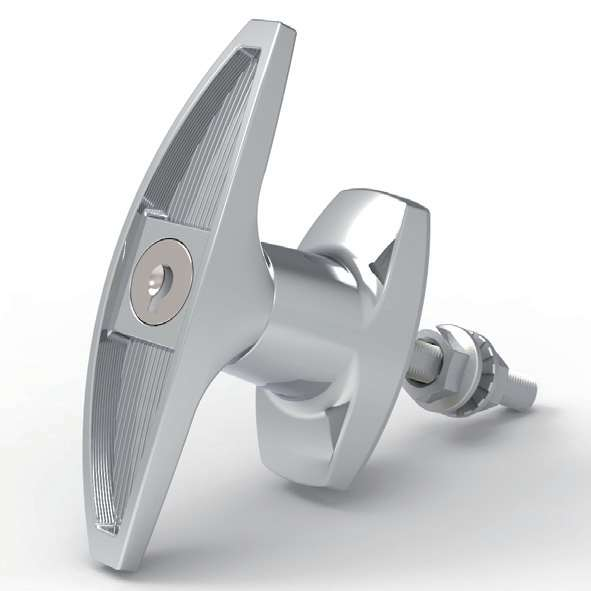

• MZ316-1M (With lock core, M10 threaded shaft): Keyed security with threaded adjustable through-panel mounting
• MZ316-2M (Without lock core, M10 threaded shaft): Keyless operation with threaded adjustable through-panel mounting

This comprehensive variant range and custom length option ensure optimal lock selection for any project security and installation requirement.

Application Fields

1. Electrical control cabinets, low-voltage distribution boxes, frequency converter enclosures and PLC equipment housings requiring secure T-handle quarter-turn locking
2. CNC machine tool guards, automation equipment protective doors and industrial machinery access panels (high vibration environments)
3. Server racks, data center enclosures, communication equipment cabinets and IT infrastructure housings
4. Indoor communication cabinets, energy storage battery boxes and monitoring equipment enclosures (IP54 rated)
5. Sheet metal tool cabinets, industrial console doors, workbench cabinets and premium storage enclosures
6. Test bench cabinets, laboratory equipment enclosures and environmental monitoring control boxes
7. High-end equipment enclosures, kiosks, point-of-sale systems and display cases requiring secure T-handle locking
8. Aluminum profile industrial frames, mechanical equipment maintenance hatches and test fixtures
9. Factory equipment, workshop machinery and indoor industrial enclosures requiring dust and splash protection
10. Applications requiring IP54 protection, dual-grip T-handle operation and flexible security / shaft configuration

Installation & Maintenance Guidelines

Step-by-Step Installation Procedures

1. Select the appropriate variant based on security and shaft requirements: MZ316-1 (keyed, C8), MZ316-2 (keyless, C8), MZ316-1M (keyed, M10), or MZ316-2M (keyless, M10)
2. Determine the installation position on the cabinet door panel according to the dimension drawing
3. Cut a Φ14mm round mounting hole in the cabinet door panel, and drill 2×Φ5.5mm screw holes at 45mm spacing
4. Ensure the sealing gasket is properly positioned on the lock housing flange
5. Insert the shaft through the round cutout from the front of the door panel
6. Secure the lock housing to the panel using the 2×M5×8 screws through the Φ5.5mm mounting holes
7. For M10 threaded variants (MZ316-1M / MZ316-2M), install and tighten the M10 nut from the rear to accommodate the specific panel thickness
8. Install the appropriate cam on the C8 or M10 shaft, aligning the flat for positive engagement
9. If customizable shaft length was ordered, verify the shaft length matches the cabinet depth requirement
10. Test the quarter-turn 90° operation to verify smooth locking and unlocking
11. For keyed variants (MZ316-1 / MZ316-1M): Verify the lock core operates correctly with the provided key
12. Adjust the cam position if needed to achieve proper door latching and consistent gap spacing

Installation Quantity Recommendation

• Standard single cabinet door: Install 1 quarter-turn T-handle lock centered vertically on the door
• Tall or wide doors (>1200mm height): Install 2 locks (top and bottom) or 1 lock with additional hinge support
• Note: Ensure the cam is properly sized for the specific cabinet door-frame configuration to achieve secure latching

Maintenance Instructions

1. Suitable for indoor industrial environments with IP54 protection; not recommended for direct outdoor exposure, heavy rain or high-humidity areas where IP65 or higher rating is required
2. Wipe the bright chrome plated T-handle and housing periodically with a soft dry or slightly damp microfiber cloth to remove dust, fingerprints and grease; avoid abrasive cleaners or scouring pads that may scratch the chrome finish or damage the black grip inserts
3. Apply a small amount of graphite or dry lubricant to the lock core (MZ316-1 / MZ316-1M) annually to maintain smooth key operation; avoid oil-based lubricants that may attract dust
4. Check the 2 M5×8 mounting screws and M10 nut (if applicable) tightness quarterly to prevent loosening from vibration
5. Inspect the sealing gasket annually for any signs of cracking, deformation or wear; replace if the IP54 seal is compromised
6. Inspect the bright chrome plating and dual black grip inserts annually for scratches, wear or corrosion
7. Test the quarter-turn 90° operation quarterly to verify smooth locking and unlocking; lubricate the shaft if any binding is detected
8. Verify that the cam remains securely attached to the shaft and provides consistent latching force
9. For customizable shaft length variants, periodically verify the shaft has not shifted and cam engagement remains proper

Product Summary

MZ316-1 series is a quarter-turn T-handle industrial cabinet lock manufactured from high-quality zinc alloy housing and aerodynamic oval T-handle with bright chrome plating and integrated dual black textured grip inserts, featuring a durable white zinc plated steel shaft (C8 smooth or M10 threaded), IP54 protection rating, 90° quarter-turn operation, screw mounting (Φ14 round hole + 2×Φ5.5 holes with M5×8 screws, 45mm spacing) and four functional variants (MZ316-1 with lock core C8 shaft, MZ316-2 without lock core C8 shaft, MZ316-1M with lock core M10 threaded shaft, MZ316-2M without lock core M10 threaded shaft) with customizable shaft length. Its zinc alloy bright chrome construction provides premium appearance and corrosion resistance, the dual black textured grips ensure non-slip two-sided ergonomic operation, the aerodynamic oval T-handle offers enhanced leverage, the IP54 rating ensures reliable dust and splash protection for indoor environments, the screw mounting provides vibration-resistant stability, and the four variants offer flexible security and mounting configuration. With its robust performance, premium appearance and ergonomic dual-grip design, it is an ideal locking solution for electrical cabinets, distribution boxes, server racks, communication equipment, machinery enclosures and various indoor industrial applications requiring secure quarter-turn T-handle locking hardware.
