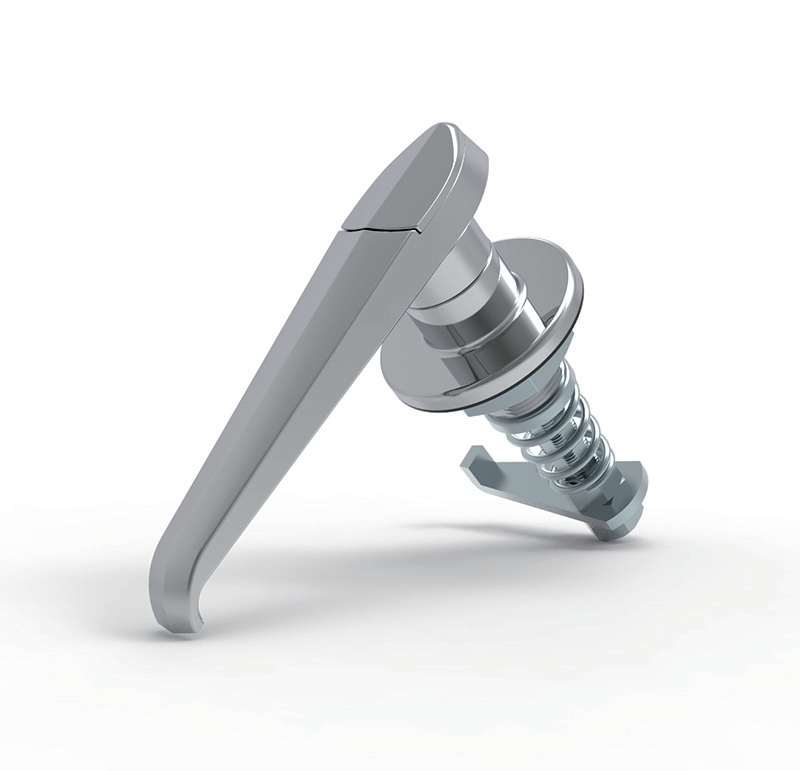

MZ807-1 Zinc Alloy Bright Chrome Plated IP65 Quarter-Turn Compression L-Handle Industrial Cabinet Lock with Dust Cap
Full Technical Specifications
- Model Number: MZ807-1
- Housing, Handle, Lock Core and Dust Cap Material: Zinc alloy
- Cam and Shaft Material: Steel
- Surface Finish: Bright chrome plated housing, handle and dust cap; white zinc plated shaft and cam
- Protection Rating: IP65 (dust-tight, water jet resistant)
- Operation Type: Quarter-turn (90° rotation) compression opening or closing
- Handle Type: L-shaped ergonomic handle, 117mm height × 147.5mm total height, 45±2mm grip, Φ58mm housing diameter
- Shaft Type: C10 (10mm diameter with flat), spring-loaded compression design
- Shaft Length: 45~58mm adjustable range
- Overall Length: 84mm + 49mm = 133mm
- Housing Diameter: Φ28mm, 15.5mm depth
- Additional Dimensions: 23mm, 15.5mm
- Mounting Cutout: Φ27mm round hole + 2 screw holes (40mm spacing, 8.5mm offset)
- Mounting Method: Through-panel with nut (Ts threaded section) + 2 screw fixation
- Compression Feature: Spring-loaded shaft provides compression latching (pulls door tight against frame)
- Dust Cap: Integrated zinc alloy dust cap covers lock core for IP65 protection
- Rotation Angle: 90°
- Core Features: Zinc alloy bright chrome construction, IP65 waterproof, spring-loaded compression latching, integrated dust cap, ergonomic L-handle, C10 adjustable shaft, quarter-turn 90° operation, vibration-resistant seal, corrosion resistant
Core Product Features & Advantages
1 High-Quality Zinc Alloy Construction with Bright Chrome Plating
The housing, L-handle, lock core and dust cap are manufactured from high-pressure die-cast zinc alloy, providing excellent structural rigidity, impact resistance and dimensional stability. The bright chrome plating creates a highly reflective, premium metallic surface that is highly resistant to scratches, abrasion and corrosion, while providing a clean, professional appearance that elevates the visual quality of any equipment enclosure.
2 Spring-Loaded Compression Latching for Secure Vibration-Resistant Seal
The innovative spring-loaded compression design pulls the door tightly against the cabinet frame during the quarter-turn closing operation, creating a secure, vibration-resistant seal that prevents door rattle and ensures consistent gasket compression. This compression latching feature is particularly beneficial for outdoor enclosures, high-vibration machinery and applications where a tight, reliable seal is critical for IP65 performance and environmental protection.
3 IP65 Waterproof Rating with Integrated Dust Cap
The integrated zinc alloy dust cap covers the lock core when not in use, and combined with the compression sealing design, achieves IP65 protection rating — dust-tight and resistant to water jets from any direction. This makes the lock suitable for both indoor industrial environments and outdoor applications including weather-exposed cabinets, coastal equipment and outdoor monitoring enclosures where dust and moisture protection are critical.
4 Ergonomic L-Handle for Comfortable High-Torque Operation
The ergonomic L-shaped handle (117mm height, 45±2mm grip) provides a comfortable, high-torque grip that enables easy quarter-turn compression operation even when wearing work gloves. The extended lever design offers enhanced leverage for overcoming spring compression force, allowing operators to apply consistent rotational force for smooth, reliable latching and unlatching.
5 C10 Adjustable Shaft for Various Panel Thicknesses
The C10 steel shaft (10mm diameter with flat) features an adjustable length range of 45~58mm, accommodating a wide variety of panel thicknesses and cam configurations. The white zinc plated shaft provides corrosion protection, while the C10 flat ensures positive, slip-free cam engagement for reliable compression latching. The spring-loaded mechanism automatically adjusts to maintain consistent compression force.
6 Round Cutout Mounting with Dual Screw Fixation
The Φ27mm round cutout mounting with 2 screw holes (40mm spacing, 8.5mm offset) ensures straightforward, stable panel installation. The dual screw fixation prevents the lock housing from rotating during quarter-turn compression operation, while the through-panel nut (Ts threaded section) provides primary load-bearing fixation. This combination ensures secure, vibration-resistant installation suitable for heavy machinery and high-vibration industrial environments.
Application Fields
- Outdoor electrical control cabinets, weatherproof distribution boxes and frequency converter enclosures requiring IP65 compression sealing
- CNC machine tool guards, automation equipment protective doors and industrial machinery access panels (high vibration environments)
- Outdoor communication cabinets, 5G base station enclosures and signal transfer equipment requiring weather-resistant locking
- Energy storage battery boxes, solar inverter enclosures and renewable energy equipment requiring secure compression latching
- Outdoor monitoring equipment, weather-resistant instrument panels and coastal equipment enclosures
- Sheet metal tool cabinets, industrial console doors and premium storage enclosures requiring secure locking
- Test bench cabinets, laboratory equipment enclosures and environmental monitoring control boxes
- High-end equipment enclosures, kiosks and outdoor display cases requiring premium bright chrome appearance
- Marine and boat equipment, RV accessories and outdoor fixtures requiring corrosion-resistant IP65 hardware
- Applications requiring spring-loaded compression latching, IP65 waterproof protection and vibration-resistant sealing
Installation & Maintenance Guidelines
Step-by-Step Installation Procedures

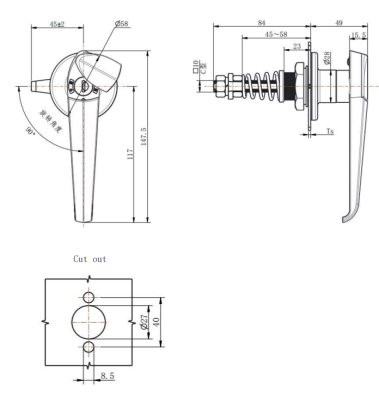

- Determine the installation position on the cabinet door panel according to the dimension drawing
- Cut a Φ27mm round mounting hole in the cabinet door panel, and drill 2 screw holes at 40mm spacing (8.5mm offset)
- Ensure the sealing gasket is properly positioned on the lock housing flange
- Insert the spring-loaded C10 shaft through the Φ27mm round cutout from the front of the door panel
- Secure the lock housing to the panel using the 2 mounting screws through the screw holes
- From the rear of the door panel, install the nut (Ts threaded section) and tighten to secure the lock to the panel
- Adjust the shaft length within the 45~58mm range to match the specific panel thickness and cam configuration
- Install the appropriate C10 cam on the shaft, aligning the flat for positive engagement
- Test the quarter-turn 90° compression operation to verify smooth locking, proper door compression and unlocking
- Verify the zinc alloy dust cap opens and closes correctly over the lock core
- Verify the lock core operates correctly with the provided key
- Adjust the cam position or shaft length if needed to achieve proper compression, door latching and consistent gap spacing
Installation Quantity Recommendation
- Standard single cabinet door: Install 1 quarter-turn compression L-handle lock centered vertically on the door
- Tall or wide doors (>1200mm height) or doors requiring high compression seal: Install 2 locks (top and bottom) for balanced compression
- Note: Ensure the C10 cam is properly sized and positioned for the specific cabinet door-frame configuration to achieve optimal compression sealing
Maintenance Instructions
- Suitable for both indoor and outdoor environments with IP65 protection; for extreme salt spray or strong chemical environments, regular rinsing with fresh water is recommended
- Wipe the bright chrome plated handle, housing and dust cap periodically with a soft dry or slightly damp microfiber cloth to remove dust, fingerprints and grease; avoid abrasive cleaners or scouring pads that may scratch the chrome finish
- Apply a small amount of graphite or dry lubricant to the lock core annually to maintain smooth key operation; avoid oil-based lubricants that may attract dust
- Check the 2 mounting screws and Ts nut tightness quarterly to prevent loosening from vibration
- Inspect the dust cap hinge and sealing gasket annually for any signs of cracking, deformation or wear; replace if the IP65 seal is compromised
- Inspect the bright chrome plating annually for scratches or corrosion; for coastal applications, rinse with fresh water periodically to remove salt deposits
- Test the quarter-turn 90° compression operation quarterly to verify smooth locking, consistent compression force and unlocking; lubricate the spring-loaded shaft if any binding is detected
- Inspect the spring mechanism annually for any signs of fatigue, deformation or corrosion; replace the lock if compression force is significantly reduced
- Verify that the C10 cam remains securely attached to the shaft and provides consistent compression latching force
- For adjustable shaft length, periodically verify the shaft setting has not shifted and cam engagement remains proper
Product Summary
MZ807-1 is a quarter-turn compression L-handle industrial cabinet lock manufactured from high-quality zinc alloy housing, handle, lock core and dust cap with bright chrome plating, featuring a durable spring-loaded C10 white zinc plated steel shaft (45~58mm adjustable) and cam, IP65 waterproof rating, 90° quarter-turn compression operation and Φ27mm round cutout mounting with dual screw fixation. Its zinc alloy bright chrome construction provides premium appearance and corrosion resistance, the spring-loaded compression design creates a secure vibration-resistant door seal, the integrated dust cap contributes to IP65 protection, the ergonomic L-handle offers comfortable high-torque gloved operation, the adjustable C10 shaft accommodates various panel thicknesses, and the dual screw mounting ensures stable vibration-resistant installation. With its robust compression performance, premium appearance and weather-resistant design, it is an ideal locking solution for outdoor electrical cabinets, distribution boxes, communication enclosures, energy storage systems, machinery equipment and various industrial applications requiring secure, weather-resistant compression latching hardware with premium bright chrome appearance.
