MZ312-3M Series Zinc Alloy Bright Chrome Plated IP65 Quarter-Turn L-Handle Industrial Cabinet Lock — M10 Threaded Shaft + Screw Mounting

Full Technical Specifications

• Model Variants:

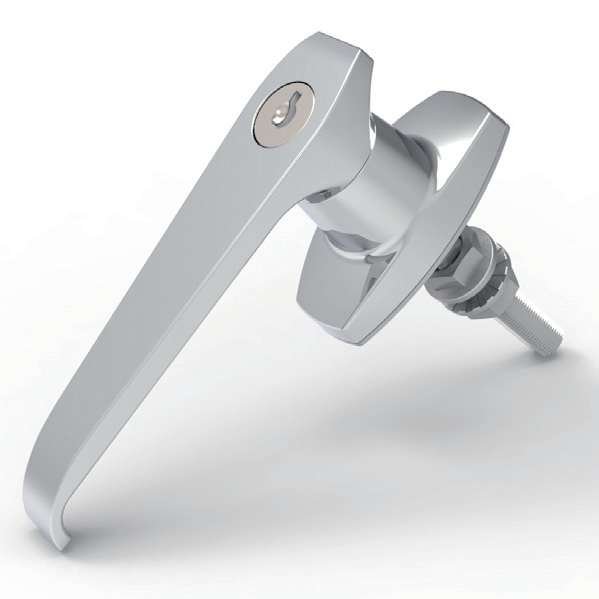

  • MZ312-3M: With lock core (keyed security)
  • MZ312-4M: Without lock core (simple handle operation)

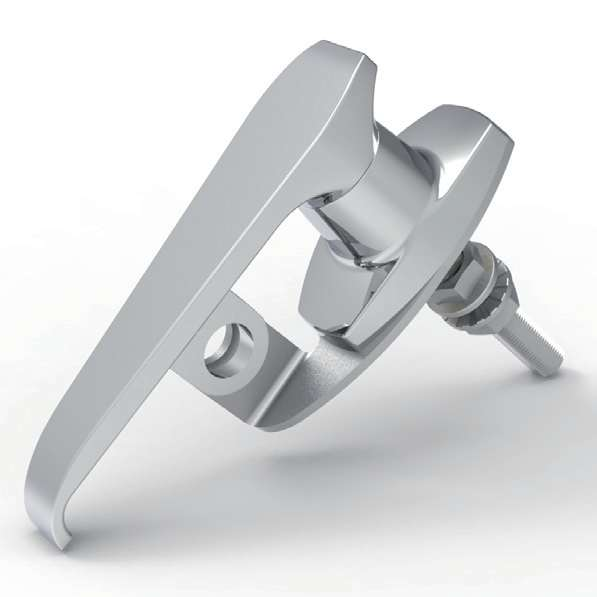

  • MZ312-4AM-R: Right-opening, without lock core, with padlock facility
  • MZ312-4AM-L: Left-opening, without lock core, with padlock facility
• Housing and Handle Material: Zinc alloy
• Shaft and Nut Material: Steel
• Surface Finish: Bright chrome plated housing and handle; white zinc plated shaft and nut
• Protection Rating: IP65 (dust-tight, water jet resistant)
• Operation Type: Quarter-turn (90° rotation) opening or closing
• Overall Dimensions: 106.5mm total length × 115mm handle height
• Handle Dimensions: 30mm width × 24.5mm, 90° rotation angle
• Housing Diameter: Φ21.5mm (24.5mm flange)
• Shaft Type: M10 threaded shaft with flat, adjustable length L=62.5mm
• Shaft Features: 38mm dimension, adjustable shaft length
• Mounting Type: Dual fixation — M10 threaded nut + 2×Φ5.5mm screw holes (38mm spacing) with M5×10 screws
• Mounting Cutout: Φ21.5mm round hole + 2×Φ5.5mm screw holes (38mm spacing)
• Additional Dimensions: Φ12mm, Tx (threaded section)
• Sealing: Integrated sealing for IP65 protection
• Core Features: Zinc alloy bright chrome construction, IP65 waterproof, quarter-turn 90° operation, M10 threaded adjustable shaft, dual fixation (nut + screws), four functional variants, padlock facility option, corrosion resistant

Core Product Features & Advantages

1 High-Quality Zinc Alloy Construction with Bright Chrome Plating

The housing and handle are manufactured from high-pressure die-cast zinc alloy, providing excellent structural rigidity, impact resistance and dimensional stability. The bright chrome plating creates a highly reflective, premium metallic surface that is highly resistant to scratches, abrasion and corrosion, while providing a clean, professional appearance that elevates the visual quality of any equipment enclosure.

2 IP65 Waterproof Rating for Indoor and Outdoor Use

The integrated sealing and robust construction achieve IP65 protection rating, ensuring the lock is dust-tight and resistant to water jets from any direction. This makes the lock suitable for both indoor industrial environments and outdoor applications including weather-exposed cabinets, coastal equipment and outdoor monitoring enclosures where dust and moisture protection are critical.

3 M10 Threaded Adjustable Shaft for Versatile Panel Thickness

The M10 threaded steel shaft with adjustable length (L=62.5mm) enables secure through-panel mounting accommodating a wide range of panel thicknesses. The threaded design provides a robust, vibration-resistant connection that can be precisely tightened to the specific panel thickness, while the adjustable shaft length ensures proper cam engagement for various door-frame configurations.

4 Dual Fixation (M10 Nut + 2 Screws) for Maximum Stability

The dual fixation design combines M10 threaded nut mounting with 2×Φ5.5mm screw holes (38mm spacing, M5×10 screws), providing maximum stability and vibration resistance. The screw fixation prevents the lock housing from rotating during quarter-turn operation, while the M10 nut provides primary load-bearing fixation, making this lock ideal for heavy machinery and high-vibration industrial environments.

5 Quarter-Turn 90° Mechanism for Quick Effortless Operation

The quarter-turn mechanism enables quick, effortless opening and closing with a simple 90° rotation of the L-handle. The ergonomic L-shaped handle provides a comfortable grip for operators, allowing fast access to cabinet interiors during maintenance, component replacement or equipment inspection. The positive 90° stop ensures clear open/closed positioning.

6 Four Functional Variants for Flexible Security Configuration

The lock is available in four carefully engineered variants to suit different security and operational requirements:

• MZ312-3M (With lock core): Keyed security for controlled access, ideal for cabinets requiring restricted entry
• MZ312-4M (Without lock core): Simple handle operation for frequently accessed cabinets where keyed security is not required
• MZ312-4AM-R (Right-opening, padlock facility): Padlock-compatible design with right-hand opening orientation
• MZ312-4AM-L (Left-opening, padlock facility): Padlock-compatible design with left-hand opening orientation

This comprehensive variant range ensures optimal lock selection for any project security requirement.

Application Fields

1. Electrical control cabinets, low-voltage distribution boxes, frequency converter enclosures and PLC equipment housings requiring secure quarter-turn locking
2. CNC machine tool guards, automation equipment protective doors and industrial machinery access panels (high vibration environments)
3. Server racks, data center enclosures, communication equipment cabinets and IT infrastructure housings
4. Outdoor communication cabinets, energy storage battery boxes and waterproof monitoring equipment enclosures (IP65 rated)
5. Sheet metal tool cabinets, industrial console doors, workbench cabinets and premium storage enclosures
6. Test bench cabinets, laboratory equipment enclosures and environmental monitoring control boxes
7. High-end equipment enclosures, kiosks, point-of-sale systems and display cases requiring secure locking
8. Aluminum profile industrial frames, mechanical equipment maintenance hatches and test fixtures
9. Outdoor monitoring equipment, weather-resistant instrument panels and coastal equipment enclosures
10. Thick panel or high-vibration applications requiring dual fixation (M10 nut + screws) and IP65 waterproof protection

Installation & Maintenance Guidelines

Step-by-Step Installation Procedures

1. Select the appropriate variant based on security requirements: MZ312-3M (keyed), MZ312-4M (keyless), MZ312-4AM-R (right padlock), or MZ312-4AM-L (left padlock)

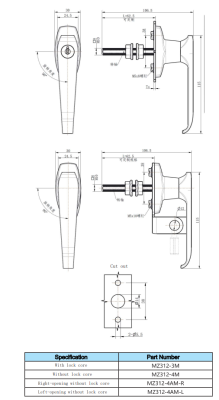

2. Determine the installation position on the cabinet door panel according to the dimension drawing
3. Cut a Φ21.5mm round mounting hole in the cabinet door panel, and drill 2×Φ5.5mm screw holes at 38mm spacing
4. Ensure the sealing gasket is properly positioned on the lock housing flange
5. Insert the M10 threaded shaft through the round cutout from the front of the door panel
6. Secure the lock housing to the panel using the 2×M5×10 screws through the Φ5.5mm mounting holes
7. From the rear of the door panel, install the M10 nut (Tx threaded section) and tighten to secure the lock to the panel, adjusting for the specific panel thickness
8. Adjust the shaft length (L=62.5mm adjustable) as needed for proper cam engagement
9. Install the appropriate cam (not included, 选配转轴) on the M10 shaft, aligning the flat for positive engagement
10. Test the quarter-turn 90° operation to verify smooth locking and unlocking
11. For MZ312-3M: Verify the lock core operates correctly with the provided key
12. For MZ312-4AM-R / MZ312-4AM-L: Verify the padlock facility functions correctly and the padlock can be inserted and removed
13. Adjust the cam position if needed to achieve proper door latching and consistent gap spacing

Installation Quantity Recommendation

• Standard single cabinet door: Install 1 quarter-turn L-handle lock centered vertically on the door
• Tall or wide doors (>1200mm height): Install 2 locks (top and bottom) or 1 lock with additional hinge support
• Note: Ensure the cam is properly sized for the specific cabinet door-frame configuration to achieve secure latching

Maintenance Instructions

1. Suitable for both indoor and outdoor environments with IP65 protection; for extreme salt spray or strong chemical environments, regular rinsing with fresh water is recommended
2. Wipe the bright chrome plated surface periodically with a soft dry or slightly damp microfiber cloth to remove dust, fingerprints and grease; avoid abrasive cleaners or scouring pads that may scratch the chrome finish
3. Apply a small amount of graphite or dry lubricant to the lock core (MZ312-3M) annually to maintain smooth key operation; avoid oil-based lubricants that may attract dust
4. Check the 2 M5×10 mounting screws and M10 nut tightness quarterly to prevent loosening from vibration
5. Inspect the sealing gasket annually for any signs of cracking, deformation or wear; replace if the IP65 seal is compromised
6. Inspect the bright chrome plating annually for scratches or corrosion; for coastal applications, rinse with fresh water periodically to remove salt deposits
7. Test the quarter-turn 90° operation quarterly to verify smooth locking and unlocking; lubricate the shaft if any binding is detected
8. For padlock facility variants (MZ312-4AM-R / MZ312-4AM-L), inspect the padlock hole annually for debris or corrosion; clean as needed to ensure proper padlock engagement
9. Verify that the cam remains securely attached to the shaft and provides consistent latching force
10. Check the adjustable shaft length setting annually to ensure proper cam engagement has not shifted

Product Summary

MZ312-3M series is a quarter-turn L-handle industrial cabinet lock manufactured from high-quality zinc alloy housing and handle with bright chrome plating, featuring a durable M10 threaded adjustable white zinc plated steel shaft (L=62.5mm), IP65 waterproof rating, 90° quarter-turn operation, dual fixation mounting (M10 nut + 2×Φ5.5 screw holes with M5×10 screws) and four functional variants (MZ312-3M with lock core, MZ312-4M without lock core, MZ312-4AM-R and MZ312-4AM-L with right/left opening padlock facility). Its zinc alloy bright chrome construction provides premium appearance and corrosion resistance, the IP65 sealing ensures reliable dust and water protection, the M10 threaded adjustable shaft accommodates various panel thicknesses, the dual fixation provides maximum vibration-resistant stability, and the four variants offer flexible security configuration. With its robust performance, premium appearance and versatile mounting options, it is an ideal locking solution for electrical cabinets, distribution boxes, server racks, communication equipment, machinery enclosures, outdoor enclosures and various industrial applications requiring secure, weather-resistant quarter-turn handle locking hardware with dual fixation mounting.
