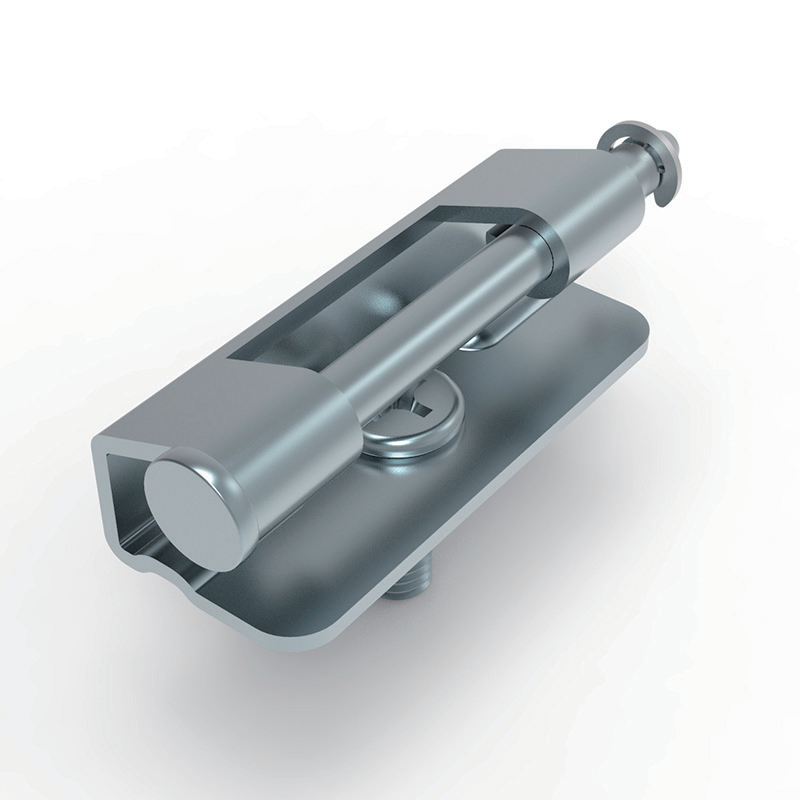

CL103-1 All Steel External Mount Lift Off Detachable Cabinet Hinge

Product Introduction

CL103-1 is an externally installed split lift-off hinge widely used for industrial electrical cabinets, distribution boxes, control enclosures and mechanical equipment access doors. Its detachable split structure allows the cabinet door to be lifted and removed directly without disassembling the hinge body, greatly simplifying equipment maintenance, wiring overhaul and door replacement work.

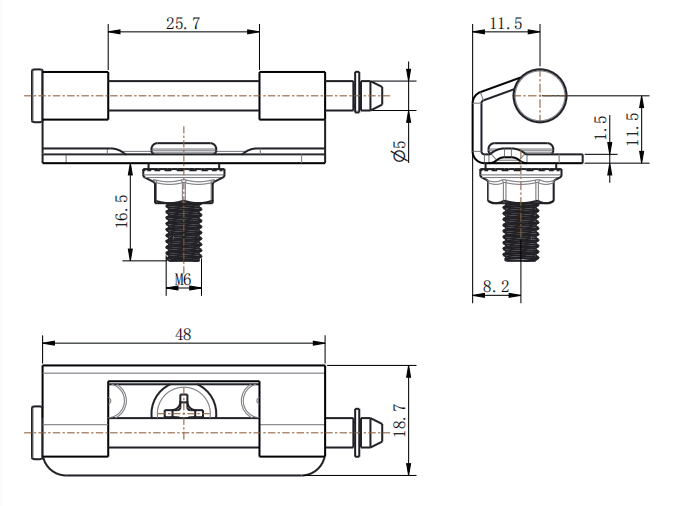

Complete Technical Specifications

Part Number: CL103-1
Overall Length: 48mm
Main Material: Carbon Steel (hinge body + rotating pin)
Surface Treatment: White zinc plated for rust & corrosion resistance
Fixing Method: Integrated M6 external bolt mounting
Structure Type: External exposed lift-off disconnect hinge

Core Product Advantages

Full steel solid structure, strong load bearing, durable for frequent opening and closing in industrial scenarios
White zinc electroplated surface, effectively resist oxidation, moisture and slight corrosive environment
External mounting design, easy installation on cabinet frame without internal slot processing
Built-in M6 bolt locking, firm and anti-loosening during long-term vibration
Compact 48mm mini size, occupies little space on cabinet edge

Wide Application Scenarios

Low-voltage electrical distribution cabinets
PLC control boxes & automation equipment enclosures
Network server cabinets
Mechanical protective covers and instrument casings
Outdoor light-duty metal equipment boxes

Product Features Summary

✅ External exposed installation, simple on-site assembly
✅ All steel material, high rigidity and long service life
✅ White zinc plating, excellent anti-rust performance
✅ M6 bolt one-piece fixing, stable and reliable
✅ Lift-off split design for fast door disassembly

FAQ

Q: What is the CL103-1 hinge used for?
A: Widely used for industrial electrical cabinets, distribution boxes, control enclosures and mechanical equipment access doors.

Q: What material is the CL103-1 hinge made of?
A: Material: Carbon Steel (hinge body + rotating pin). Surface finish: White zinc plated for rust & corrosion resistance.

Q: Is the CL103-1 hinge suitable for industrial cabinets?
A: Yes, it is designed for industrial cabinets, electrical enclosures, control boxes and equipment doors.

Q: Does Reaking offer OEM or custom CL103-1 hinges?
A: Yes, Reaking welcomes OEM and custom orders — contact us with your drawing or sample requirements.
