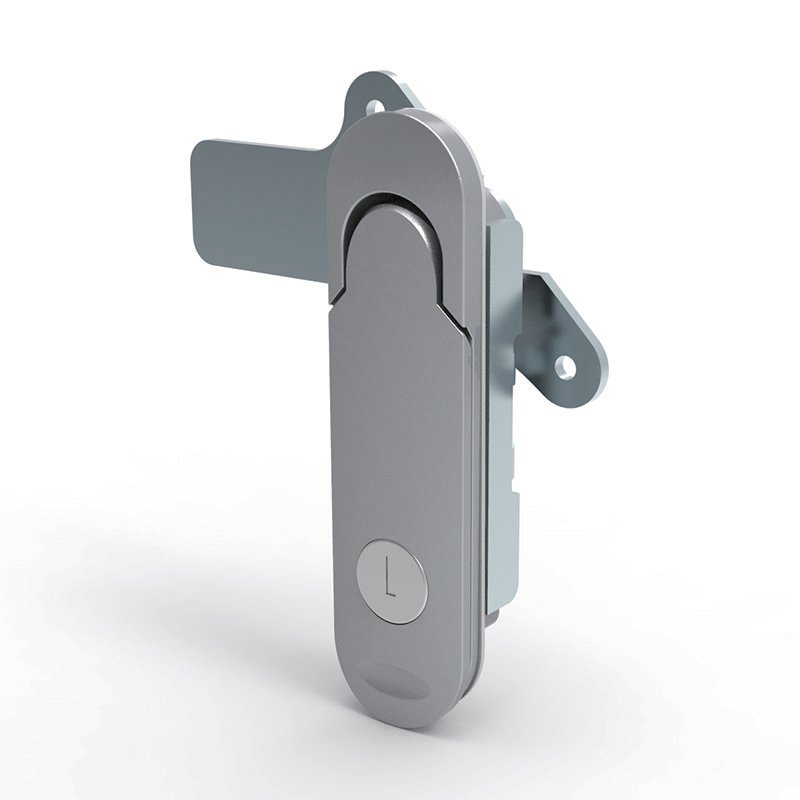

The MP843-2 series is a quick open swing handle lock built for fast, tool-free access to industrial enclosures. The handle releases with a single motion, making it ideal for cabinets that are opened frequently during operation and maintenance.
The zinc alloy housing is finished with durable nanometer painting, with steel support and cam (galvanized steel option available). Two variants are available: MP843-2 with insert (K08 key) and MP843-2A without insert for custom cylinder installation.
Rated IP54, it suits distribution cabinets, telecom enclosures and control panels. Dimension drawings and cut-out templates are provided below.
Variants:
- MP843-2 — with insert

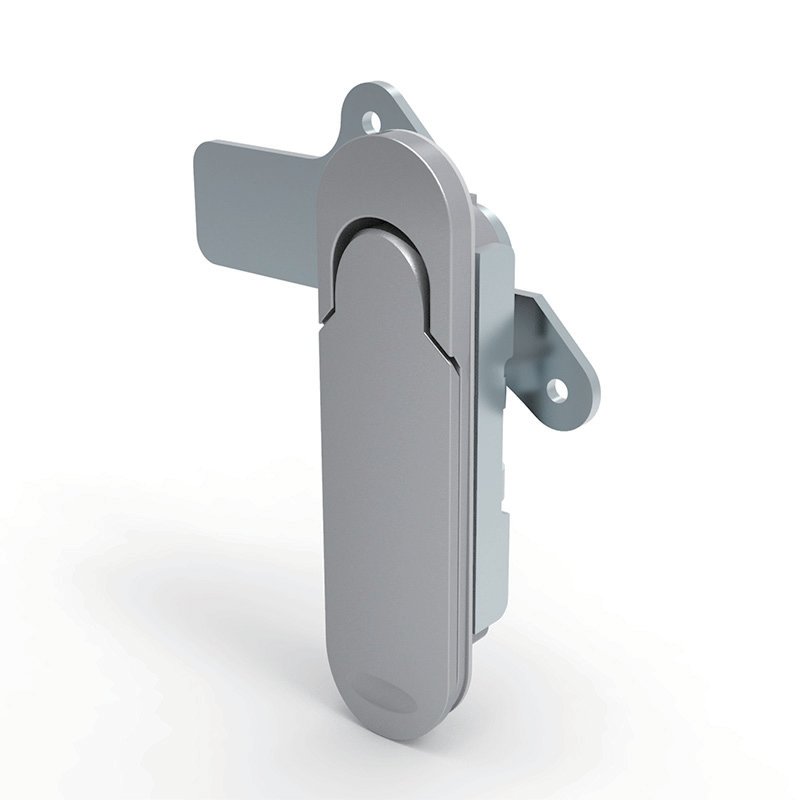

- MP843-2A — without insert
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| MP843-2 | with insert | Zinc alloy housing, steel support and cam / galvanized steel support and cam | Nanometer painting | K08 |
| MP843-2A | without insert | Zinc alloy housing, steel support and cam / galvanized steel support and cam | Nanometer painting | No cylinder insert |

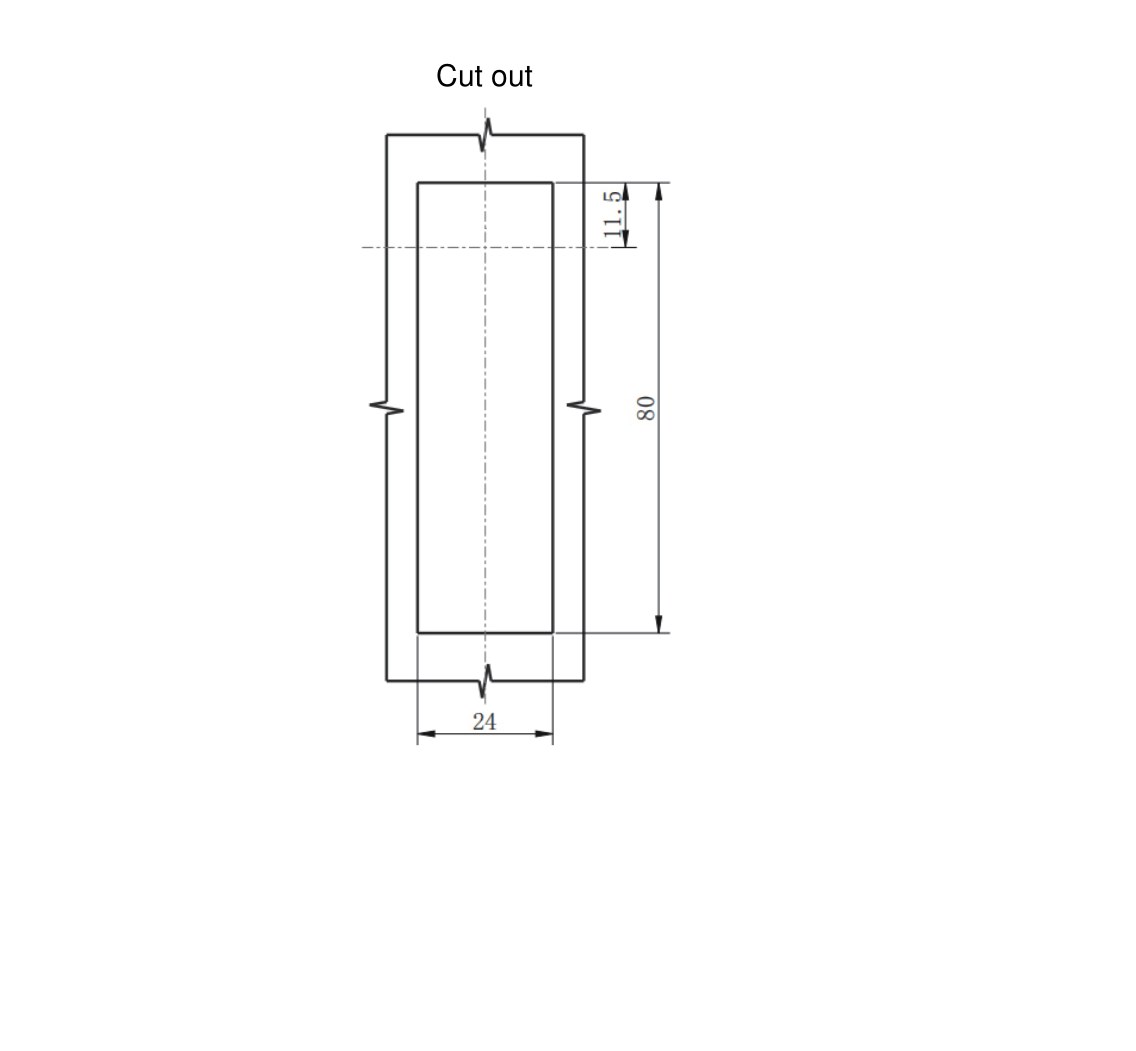

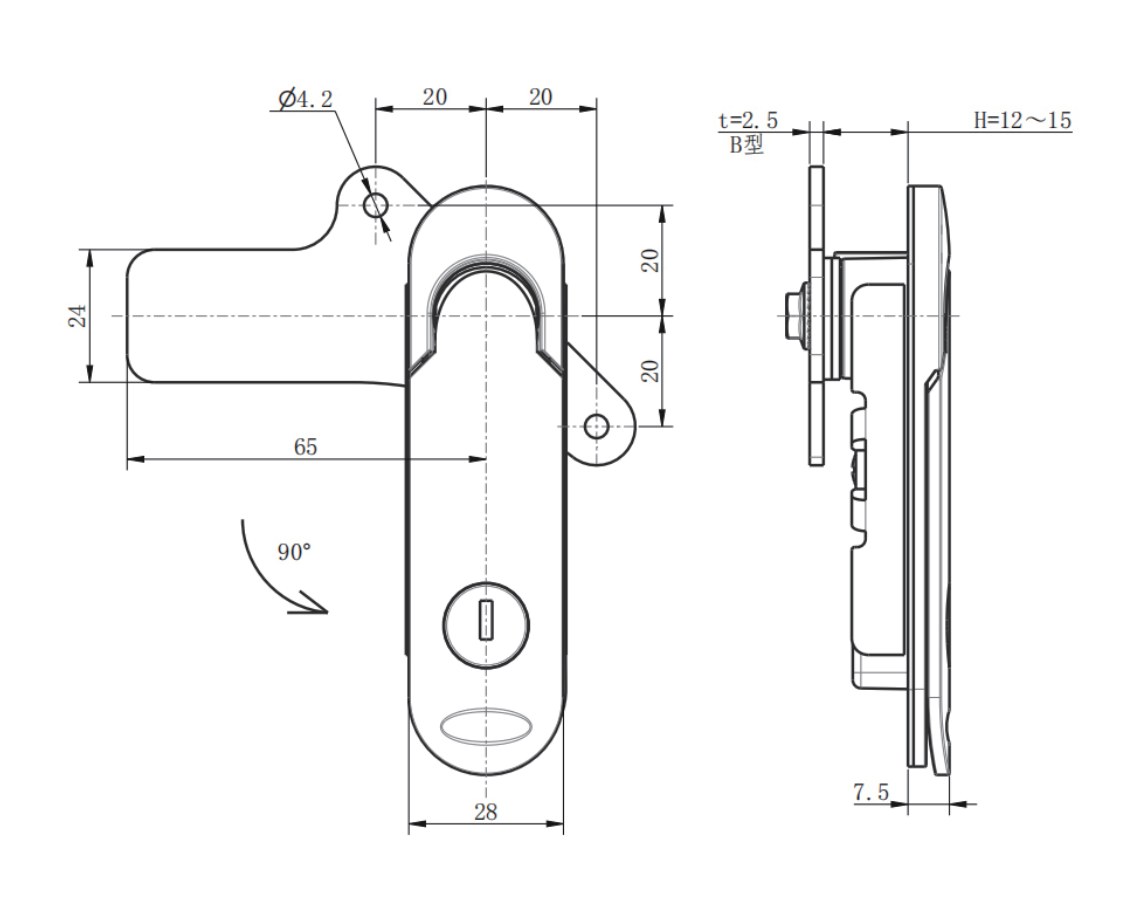

Dimension Drawing & Cut-out
FAQ
Q: How does the quick open mechanism work?
A: The swing handle releases with a single motion, giving fast, tool-free access to the cabinet – ideal for frequent opening during operation and maintenance.
Q: What key does the MP843-2 use?
A: It uses the K08 key. The MP843-2A variant has no insert for custom cylinders.
Q: What finish does it have?
A: Durable nanometer painting on a zinc alloy housing, with steel support and cam.
Q: What is the IP rating?
A: IP54 – dust protected and splash resistant.
