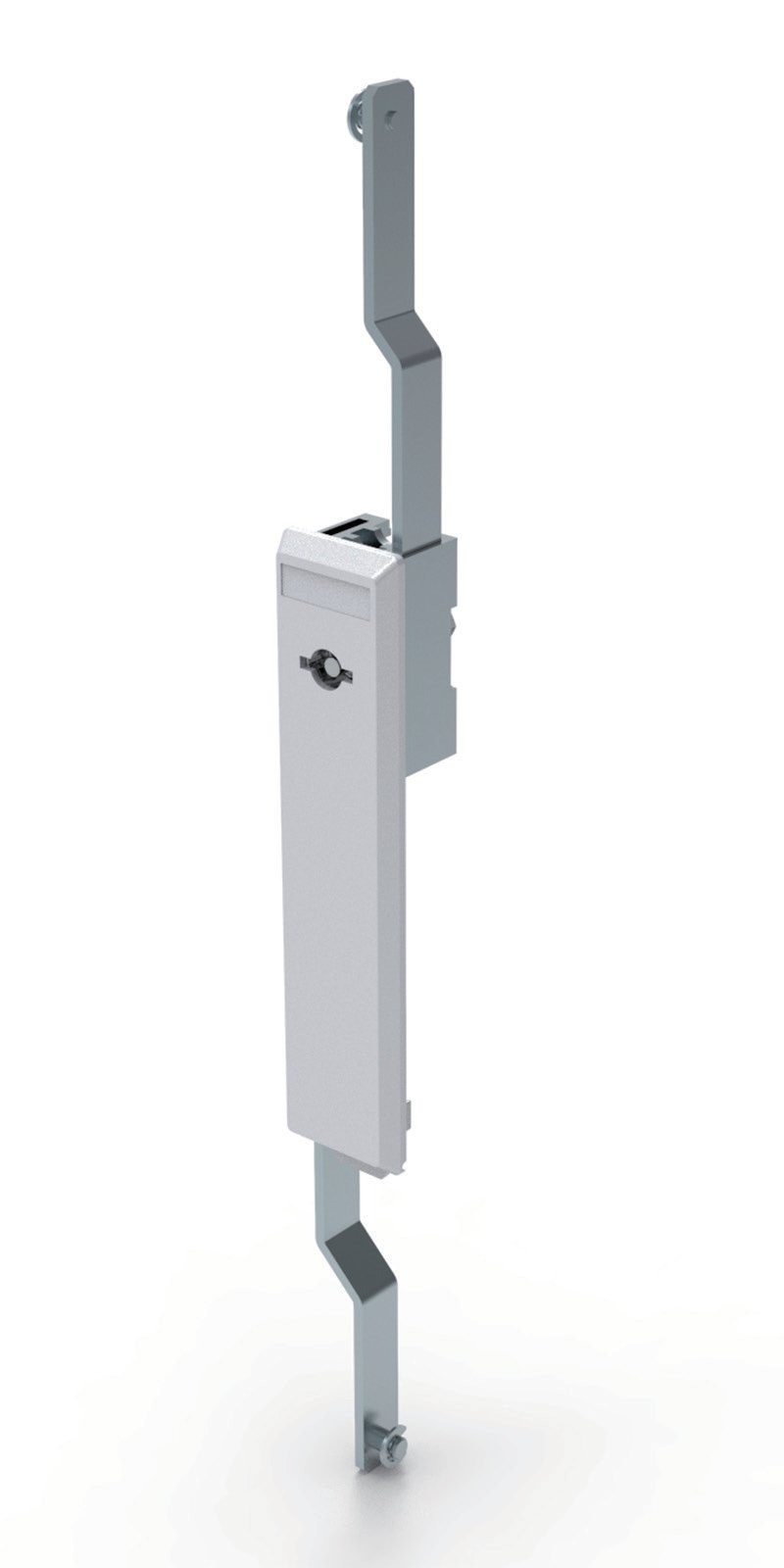

ML875-1 Connecting Rod Lock, IP54 PA Housing Rod Control Latch with Optional K15-1 Key
The ML875-1 connecting rod lock drives top and bottom rods for multi-point locking on industrial cabinet doors. PA housing with a zinc alloy rod latch system, optional K15-1 keyed cylinder, IP54 rated; a 90° turn opens or closes the door.
The ML875-1 connecting rod lock is a lightweight multi-point latch for industrial enclosure doors: a PA (nylon) housing over a zinc alloy rod latch system with a steel cam. A 90° turn of the handle drives the connecting rods through the rod box assembly to open or close the door.
The cam and rod box assembly are galvanized steel for long service life, and a K15-1 keyed cylinder is available as an option for access control. The lock is rated IP54 against dust and splashing water.
Typical applications include indoor distribution boxes, telecom enclosures, control panels and light machinery cabinets. Dimension drawings and the cut-out template are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| ML875-1 | connecting rod lock with rod box assembly | PA housing, zinc alloy rod latch system, galvanized steel cam and rod box assembly, steel rod | Housing natural finish; galvanized steel cam | Optional K15-1 |

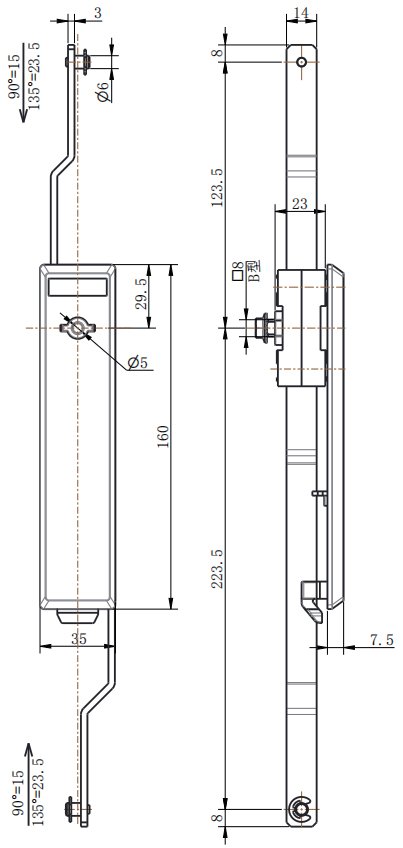

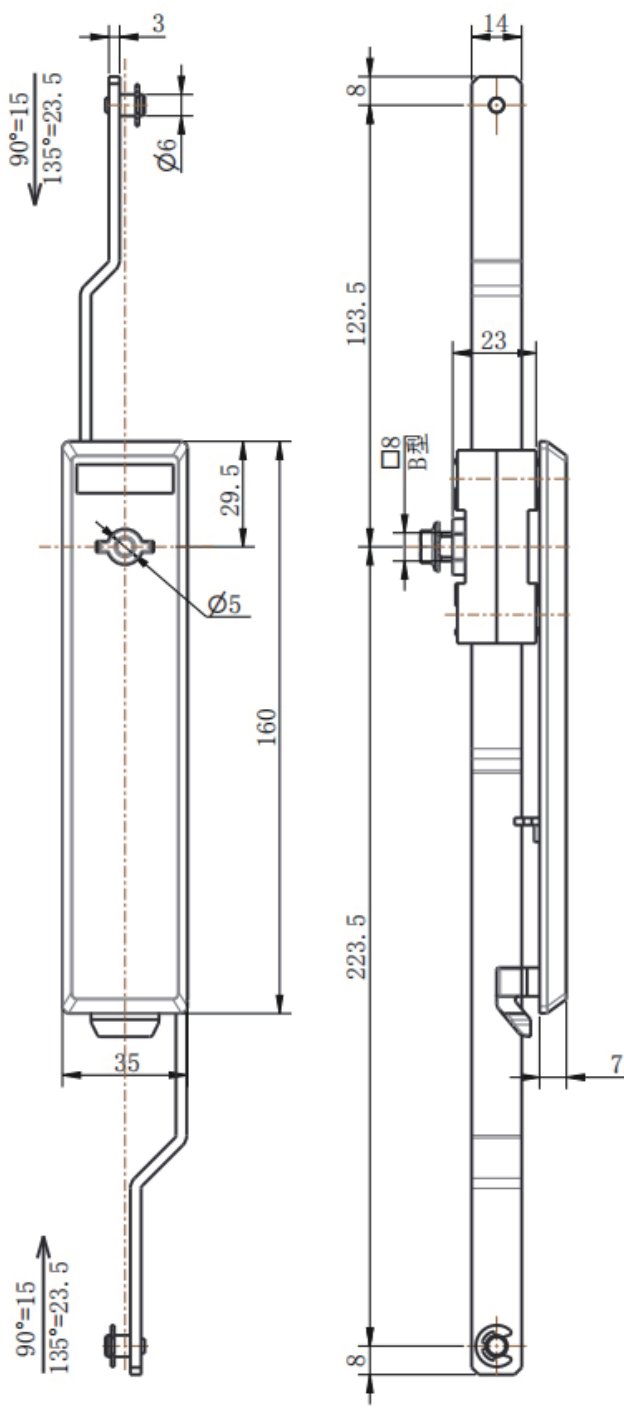

Dimension Drawing & Cut-out
FAQ
Q: What is a connecting rod lock?
A: A lock where one handle drives rods up and down the door edge, latching the door at multiple points instead of one.
Q: How does the ML875-1 open and close?
A: A 90° turn of the handle drives the connecting rods to open or close the door.
Q: Does the ML875-1 come with a key?
A: A K15-1 keyed cylinder is available as an option — tell us when ordering if you need the keyed version.
Q: Why a PA housing?
A: The nylon housing is light and rust-proof, while the zinc alloy latch system inside keeps the locking action strong.

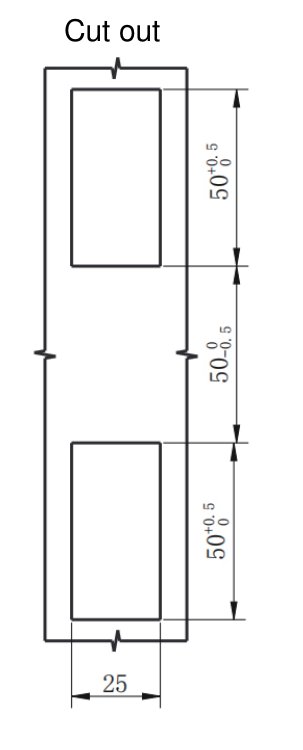

Q: What is the cut-out size?
A: See the cut-out drawing: a 25 mm wide template with three 50 mm sections.
