ML731-2 Push Button Rod Control Lock, IP54 Black Connecting Rod Cabinet Lock with K06 Key
The ML731-2 push button rod control lock secures industrial cabinet doors at multiple points through connecting rods. Press the PUSH button to release the swing handle, then a 90° turn opens or closes the door. Zinc alloy housing, black powder coating, K06 keyed cylinder, IP54 rated.

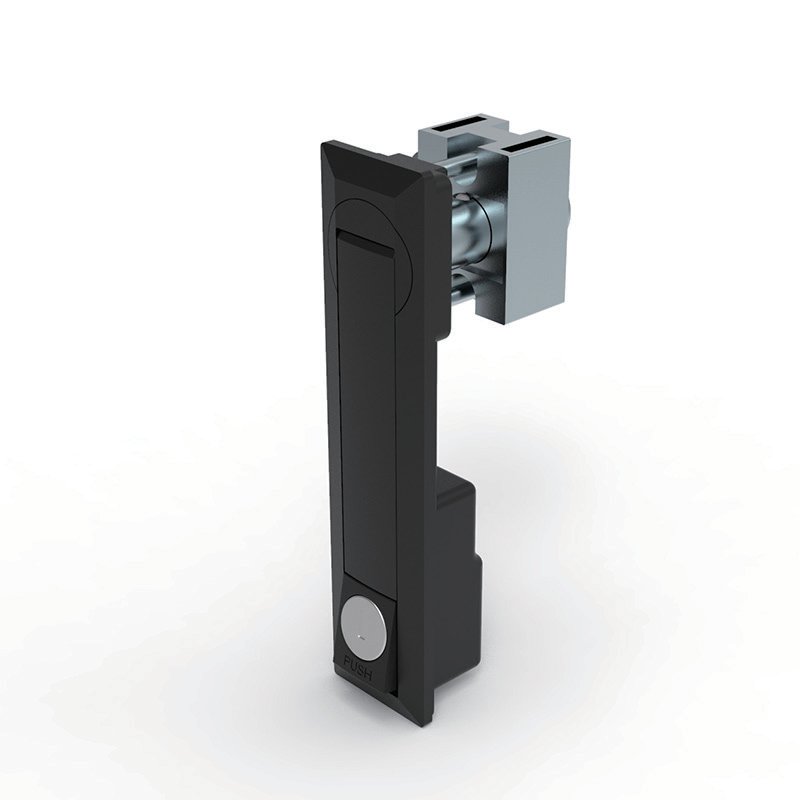

The ML731-2 push button rod control lock is built for industrial enclosure doors that need multi-point locking with quick, one-hand access. Press the PUSH button at the base of the handle to release it, then a 90° turn drives the connecting rods through the rod box assembly to open or close the door.
The housing is zinc alloy finished in black powder coating, with a K06 keyed cylinder for access control. The cam and rod box assembly are galvanized steel for long service life, and the lock is rated IP54 against dust and splashing water.
Typical applications include distribution cabinets, telecom enclosures, control panels and machinery cabinets. Dimension drawings and the cut-out template are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| ML731-2 | push button swing handle rod control lock with rod box assembly | Zinc alloy housing, galvanized steel cam and rod box assembly, steel rod | Powder coating (black) | K06 |

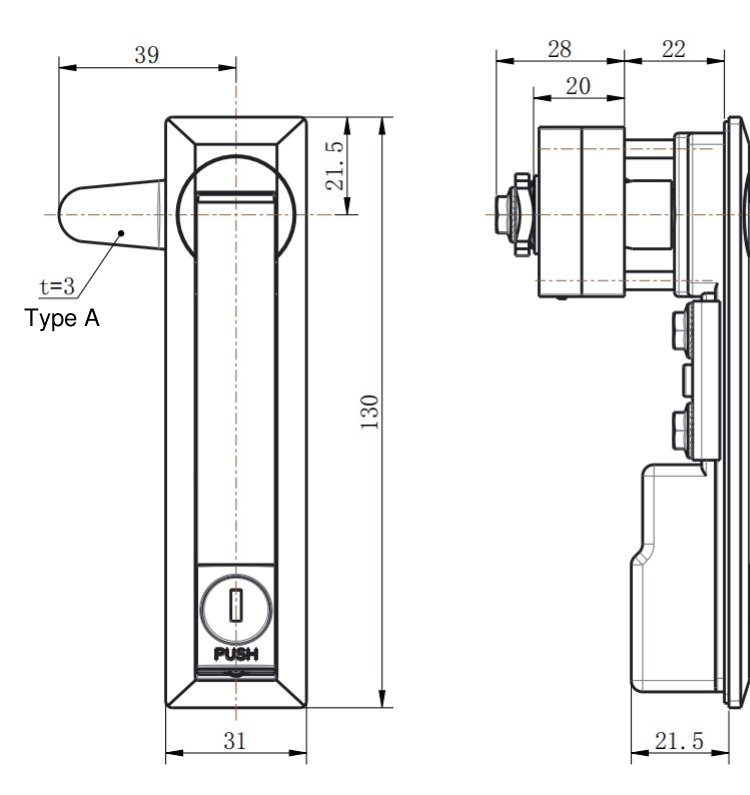

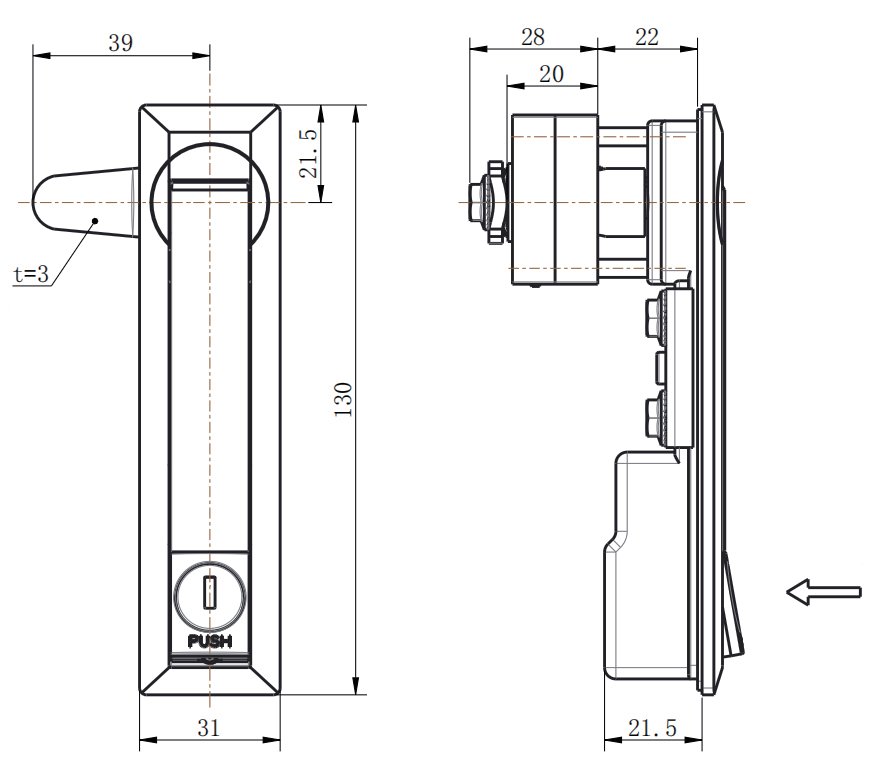

Dimension Drawing & Cut-out
FAQ
Q: How does the push button work on the ML731-2?
A: Press the PUSH button to pop the swing handle out, then turn it 90° to drive the connecting rods and open or close the door.
Q: What key does the ML731-2 use?
A: A K06 keyed cylinder.

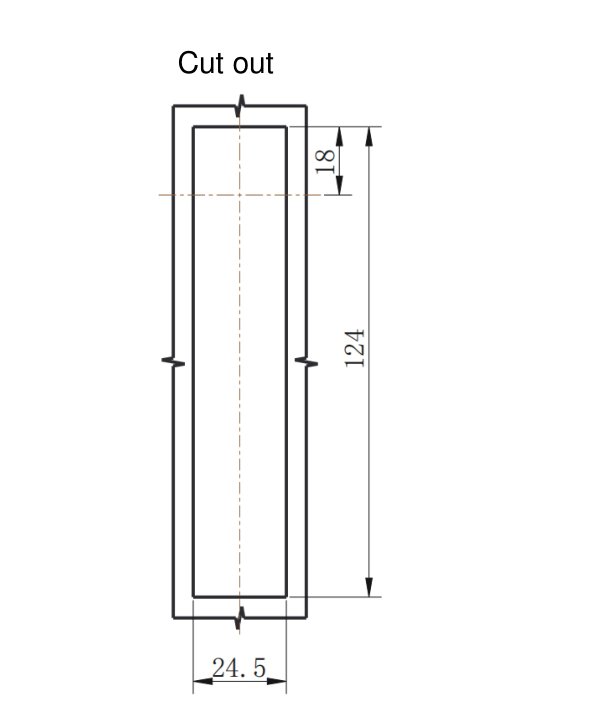

Q: What is the cut-out size?
A: 124 × 24.5 mm, as shown in the cut-out drawing.
Q: Are the connecting rods included?
A: The lock is supplied with the rod box assembly; rod lengths are matched to your door height — tell us your door size when ordering.
Q: What is the IP rating?
A: IP54, protected against dust and splashing water.
