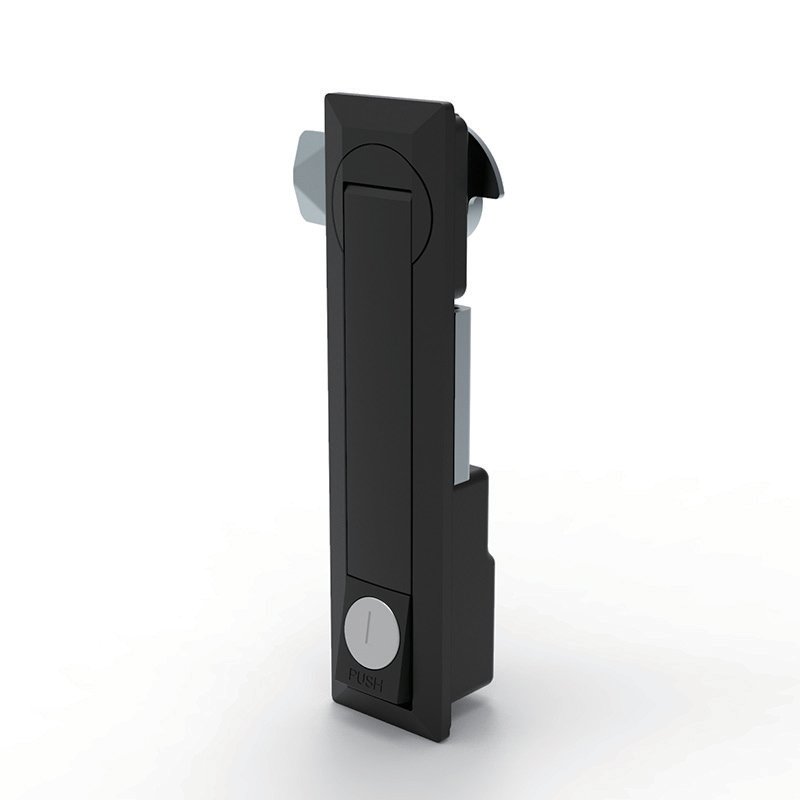

ML731-4 Rod Control Lock with Cover, IP54 Black Connecting Rod Cabinet Lock with K06 Key
The ML731-4 rod control lock with cover protects the cylinder area behind a hinged cover while driving connecting rods for multi-point locking. Zinc alloy housing, black powder coating, K06 keyed cylinder, IP54 rated; a 90° turn opens or closes the door.
The ML731-4 rod control lock with cover adds a protective cover over the operating area of the handle, shielding the cylinder from dust and tampering while keeping one-hand access. A 90° turn of the handle drives the connecting rods through the rod box assembly to open or close the door.
The housing is zinc alloy finished in black powder coating, with a K06 keyed cylinder and a galvanized steel cam. The lock is rated IP54 against dust and splashing water.
Typical applications include distribution cabinets, telecom enclosures, control panels and machinery cabinets. Dimension drawings and the cut-out template are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| ML731-4 | swing handle rod control lock with protective cover | Zinc alloy housing, galvanized steel cam, steel rod | Powder coating (black) | K06 |

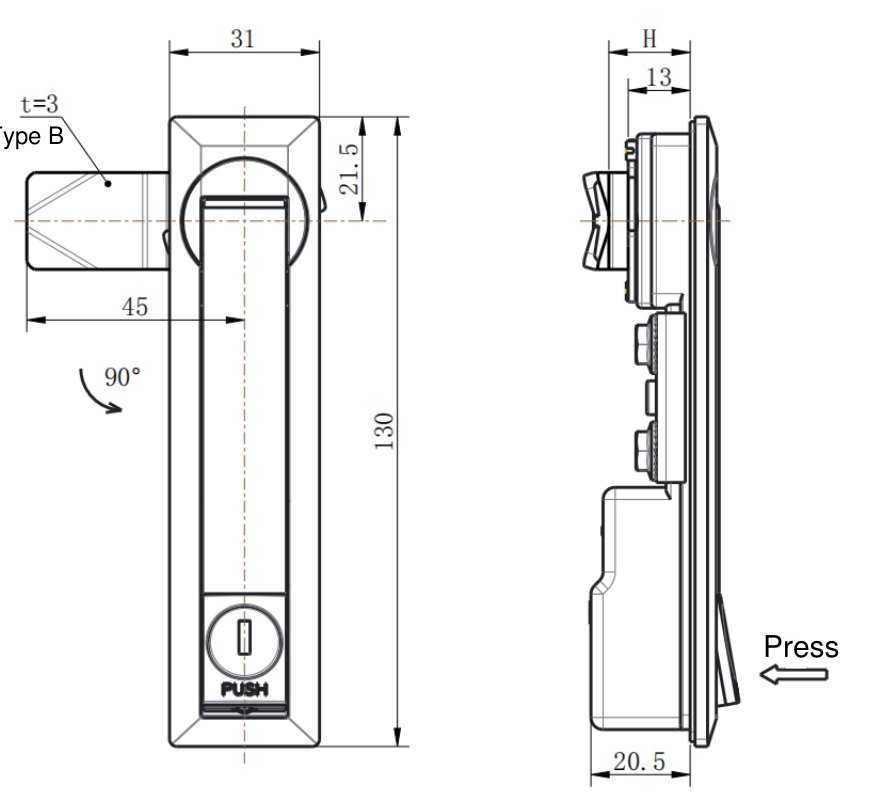

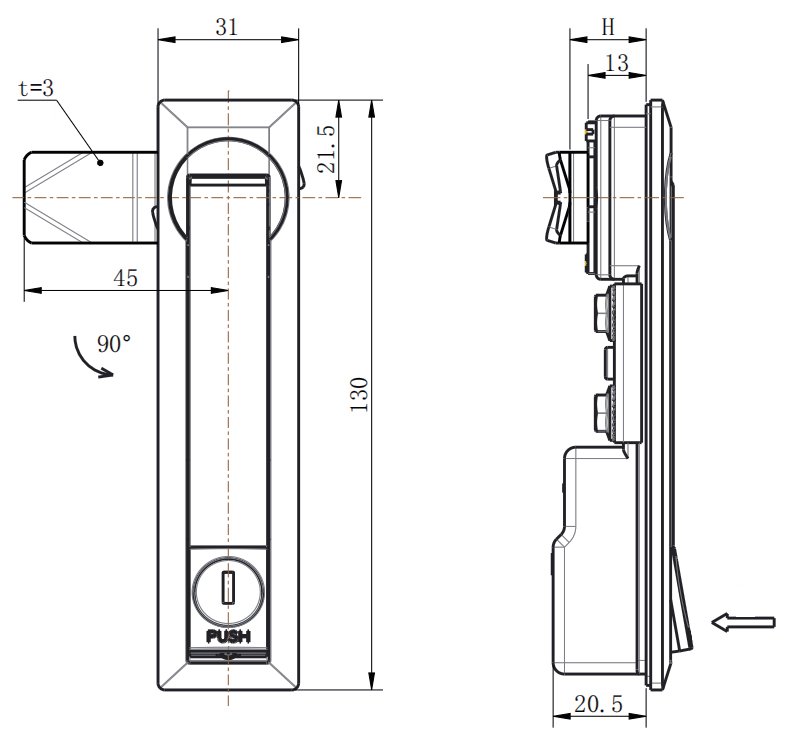

Dimension Drawing & Cut-out
FAQ
Q: What is the cover for on the ML731-4?
A: The hinged cover protects the cylinder and operating area from dust, splashes and casual tampering.
Q: How does the ML731-4 open and close?
A: Lift the cover, then a 90° turn of the handle drives the connecting rods to open or close the door.
Q: What key does the ML731-4 use?
A: A K06 keyed cylinder.

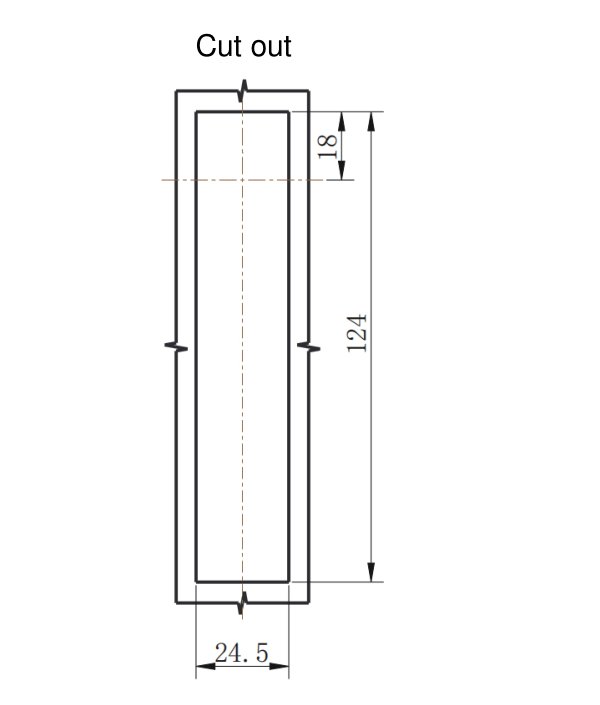

Q: What is the cut-out size?
A: 124 × 24.5 mm, as shown in the cut-out drawing.
Q: What is the IP rating?
A: IP54, protected against dust and splashing water.
