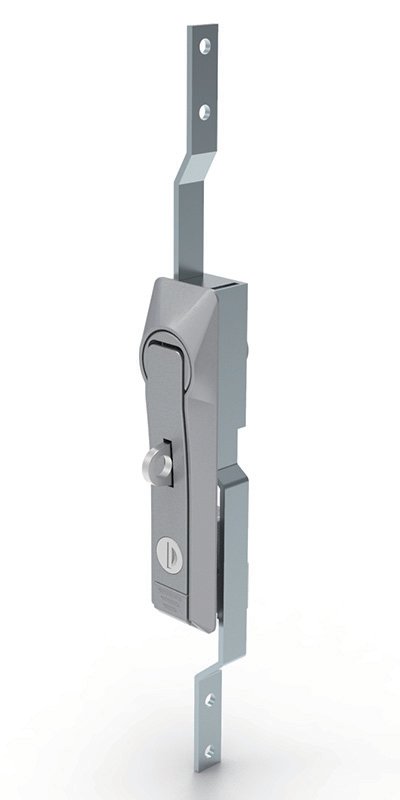

ML828-1G Padlockable Rod Control Lock, Nano Coated with Stainless Steel Padlock Hasp, Key333
The ML828-1G padlockable rod control lock adds a stainless steel padlock hasp (Ø10 mm) on top of multi-point connecting rod locking — ideal for shared or outdoor cabinets needing a second level of security. Zinc alloy housing, nano powder coating, Key333 cylinder, IP54.
The ML828-1G padlockable rod control lock combines multi-point connecting rod locking with a stainless steel padlock hasp (Ø10 mm shackle hole), so the cabinet can be double-secured with a padlock on top of the built-in Key333 cylinder. A 90° turn of the handle drives the rods through the rod box assembly to open or close the door.
The housing is zinc alloy finished in nano powder coating for extra surface durability, and the cam and rod box assembly are galvanized steel. The lock is rated IP54. For doors that do not need the hasp, the ML828-1 version without padlock facility is available.
Typical applications include outdoor distribution boxes, telecom enclosures, energy storage cabinets and site equipment. Dimension drawings and the cut-out template are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| ML828-1 | rod control lock without padlock facility | Zinc alloy housing, galvanized steel cam and rod box assembly, steel rod | Powder coating (nanometer) | Key333 |
| ML828-1G | rod control lock with stainless steel padlock hasp (Ø10) | Zinc alloy housing, stainless steel padlock hasp, galvanized steel cam and rod box assembly, steel rod | Powder coating (nanometer) | Key333 |

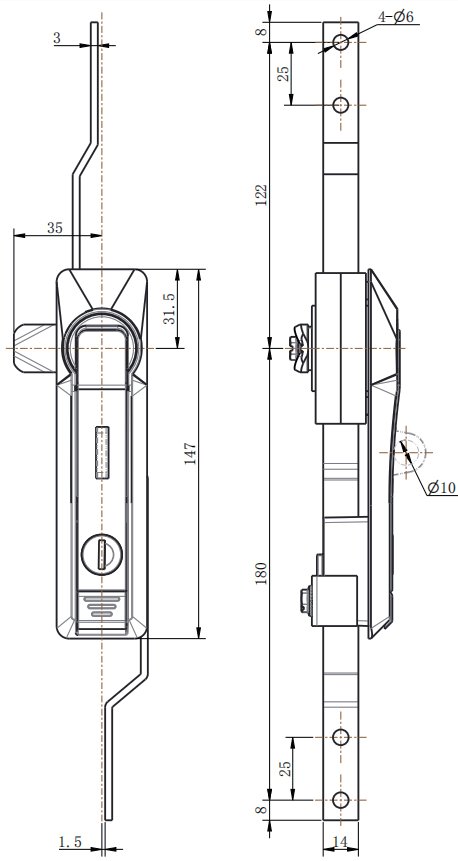

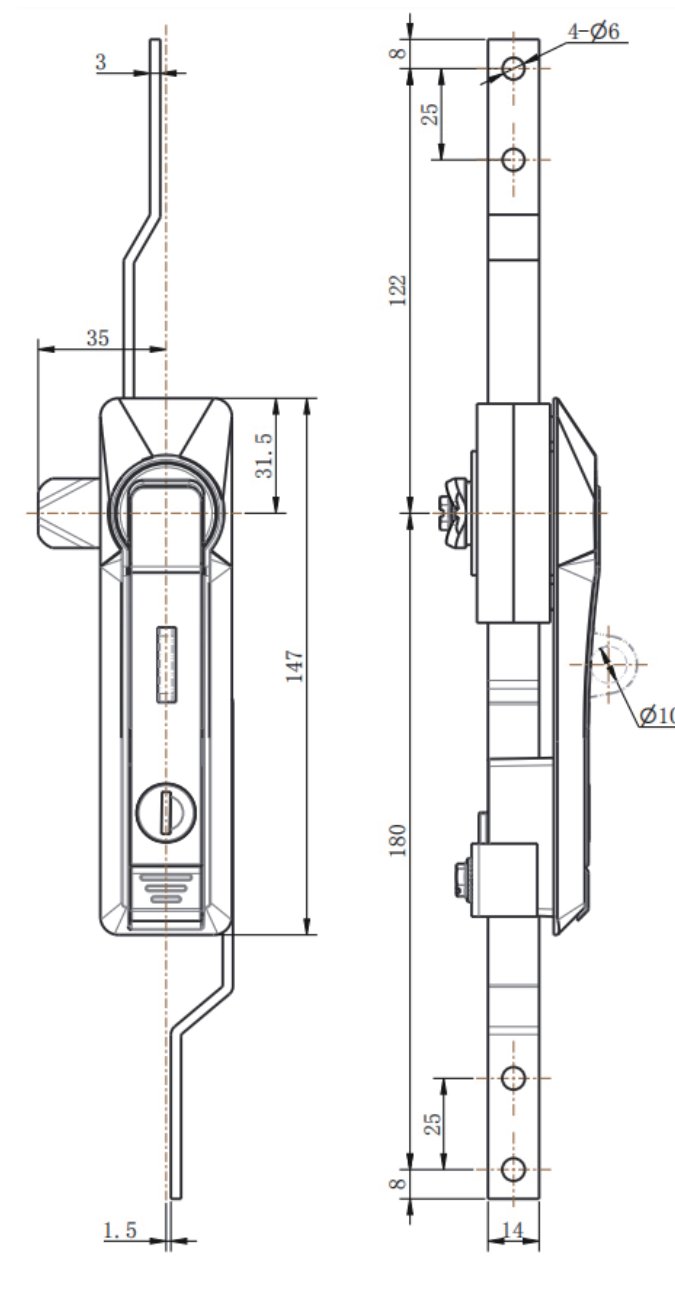

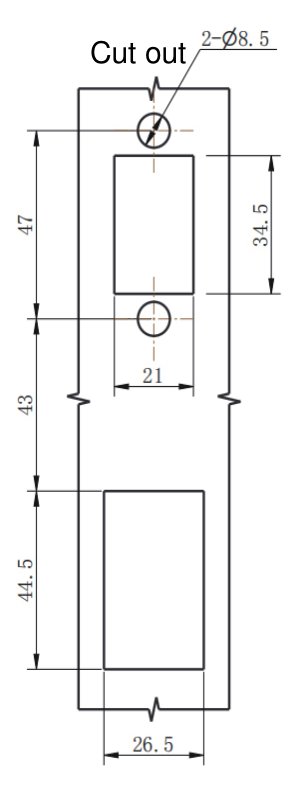

Dimension Drawing & Cut-out
FAQ
Q: What is the difference between ML828-1 and ML828-1G?
A: ML828-1G has a stainless steel padlock hasp with a Ø10 mm shackle hole; ML828-1 is the same lock without the padlock facility.
Q: What size padlock fits the ML828-1G?
A: Any padlock with a shackle diameter up to 10 mm.
Q: What key does the ML828-1G use?
A: A Key333 cylinder — the padlock adds a second, independent locking level.
Q: How does it open and close?
A: Remove the padlock (if fitted), turn the Key333 key, then a 90° handle turn drives the connecting rods.
Q: What is the finish?
A: Nano powder coating, harder and more corrosion resistant than standard powder coating.
Q: What is the IP rating?
A: IP54, protected against dust and splashing water.
