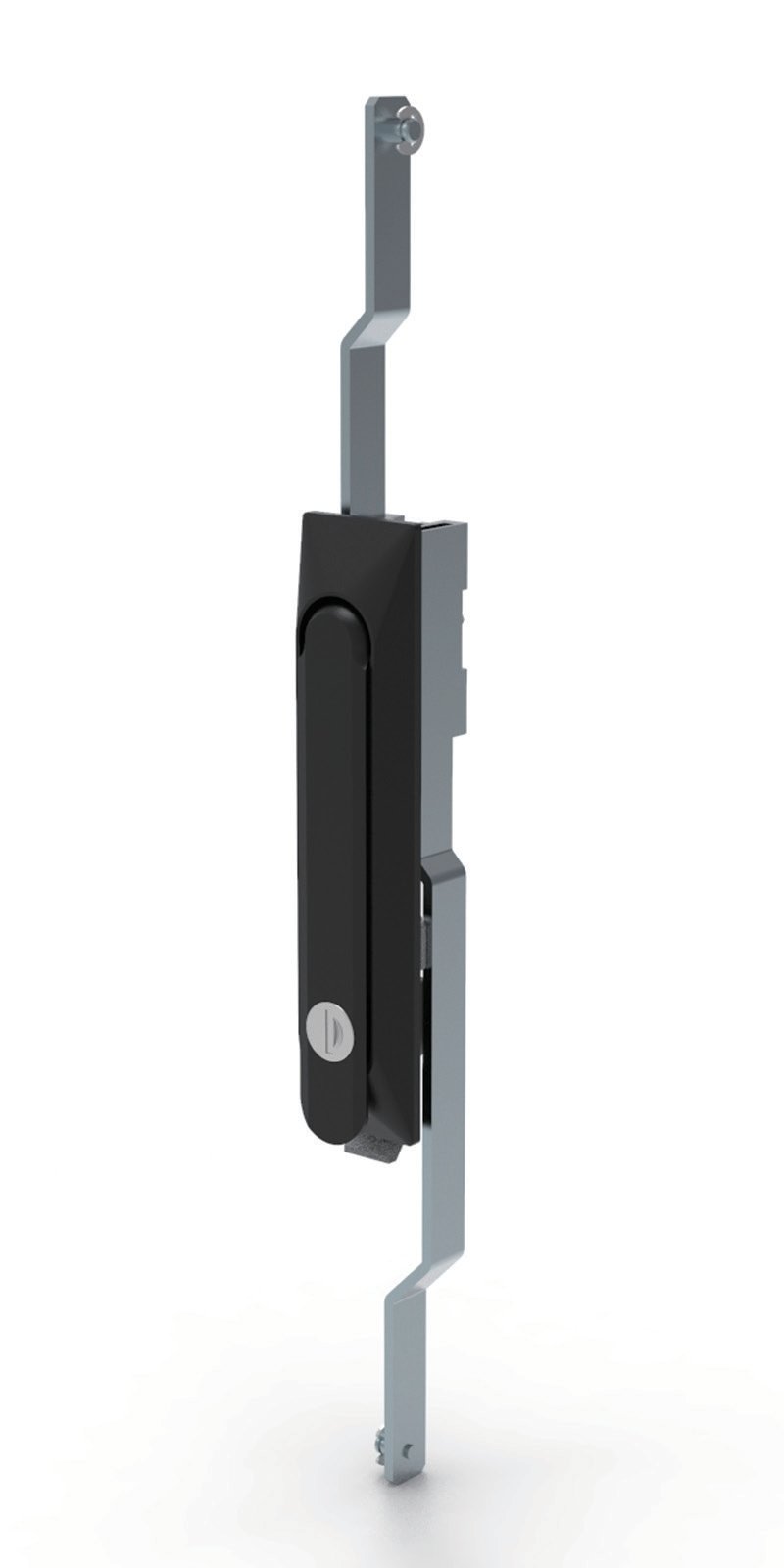

ML861-2E Plastic Rod Control Lock, PA Housing Connecting Rod Latch with Key333
The ML861-2E plastic rod control lock uses a tough PA (nylon) housing with a zinc alloy rod latch system inside — a lightweight, corrosion-proof option for multi-point cabinet locking. Key333 cylinder, IP54 rated; a 90° turn opens or closes the door.
The ML861-2E plastic rod control lock combines a PA (nylon) housing with a zinc alloy rod latch system and steel cam, giving a lightweight and rust-proof lock body for indoor and semi-outdoor enclosures. A 90° turn of the handle drives the connecting rods through the rod box assembly to open or close the door.
The cam and rod box assembly are galvanized steel for long service life, and the built-in cylinder uses Key333. The lock is rated IP54 against dust and splashing water.
Typical applications include indoor distribution boxes, telecom enclosures, control panels and light machinery cabinets. Dimension drawings and the cut-out template are provided below.
| Part Number | Description | Material | Finish | Key |
|---|---|---|---|---|
| ML861-2E | plastic housing rod control lock with rod box assembly | PA housing, zinc alloy rod latch system, galvanized steel cam and rod box assembly, steel rod | Housing natural black; galvanized steel cam | Key333 |

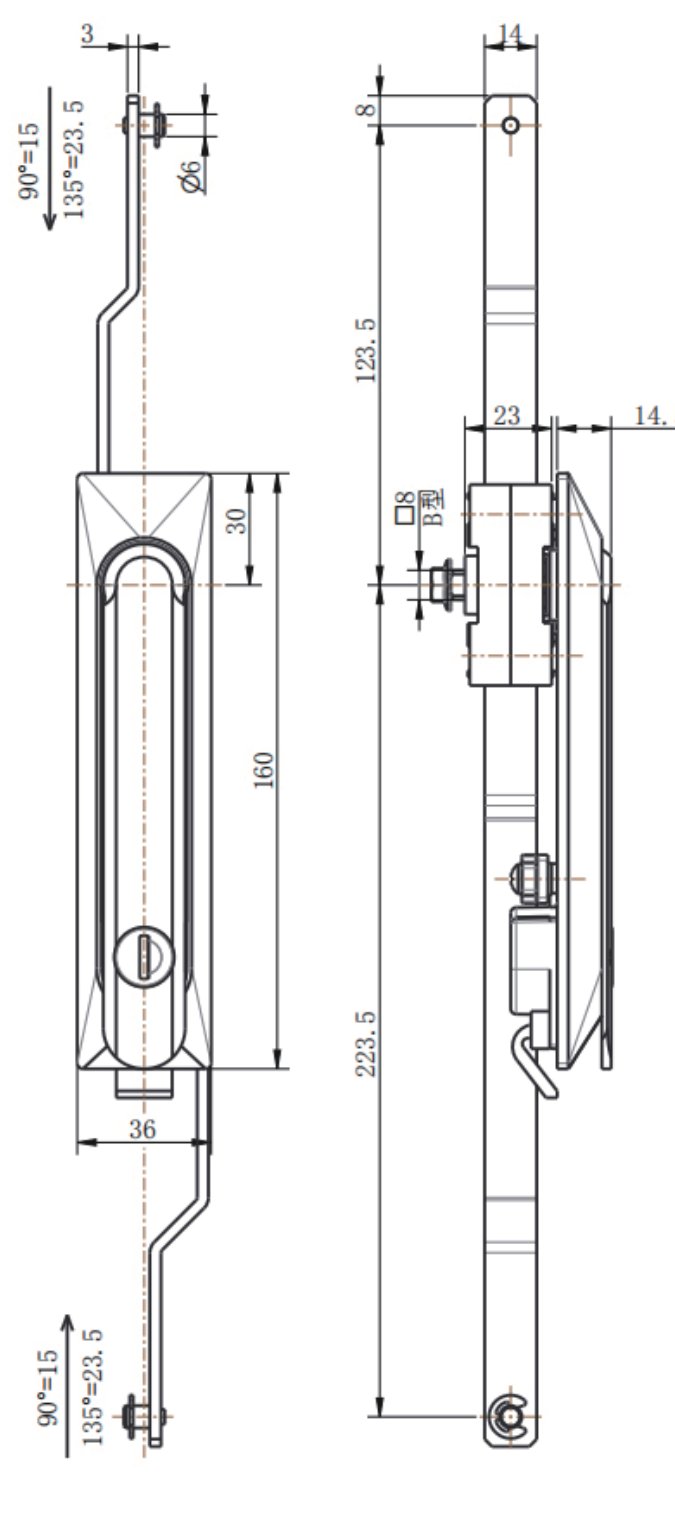

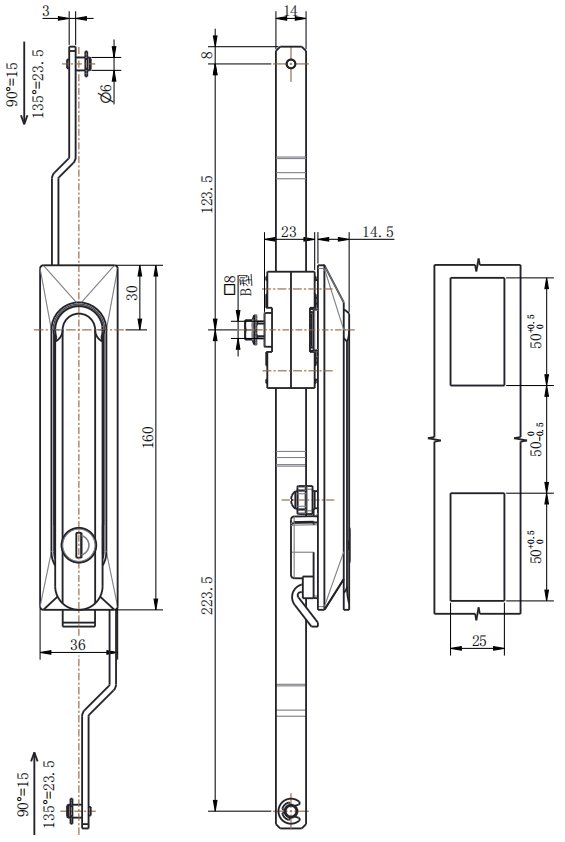

Dimension Drawing & Cut-out
FAQ
Q: Why a plastic housing rod lock?
A: The PA (nylon) housing is light, rust-proof and cost-effective, while the zinc alloy latch system inside keeps the locking action strong.
Q: Is the ML861-2E suitable outdoors?
A: It is rated IP54 and the housing will not rust; for harsh outdoor sites we recommend the zinc alloy models in the same series.
Q: What key does the ML861-2E use?
A: A Key333 cylinder.
Q: How does it open and close?
A: A 90° turn of the handle drives the connecting rods to open or close the door.

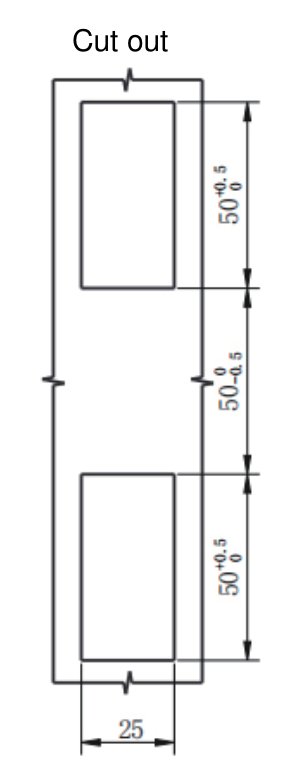

Q: What is the cut-out size?
A: See the cut-out drawing: a 25 mm wide template with three 50 mm sections.
