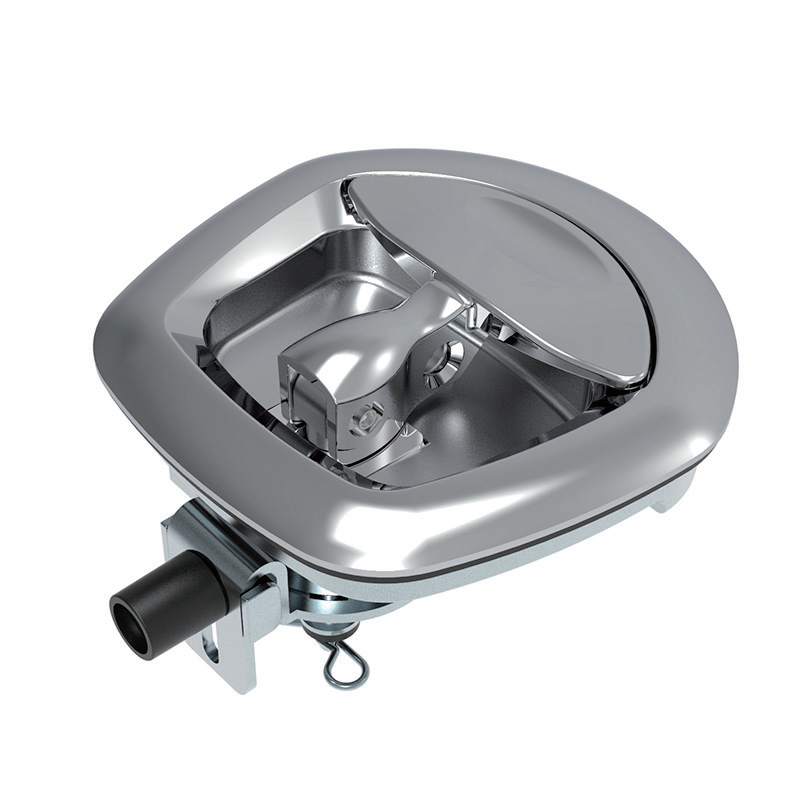

Reaking MB906-1 is an IP54 rated recessed panel lock, designed for industrial cabinets, equipment compartments and vehicle door applications.
Material: Zinc alloy
Finish: Bright chrome-plated or Power coating(black)
Remarks: Spiral-shaped key “1000#”
Feature: Connectable electric motor
Adjustable height H: 28 ~ 48mm

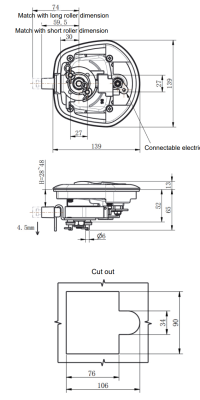

This flush panel lock comes in two variants: MB906-1 supports connectable electric motor for automatic unlocking; MB906-2 is manual-only opening version. The IP54 rating protects the internal mechanism against dust and splashing water. Zinc alloy body delivers high mechanical strength and corrosion resistance. Two surface finishes available for different aesthetic requirements. Adjustable mounting height accommodates different panel thickness. Complete dimension drawings and cutout template are provided for cabinet fabrication.
Reaking factory is located in Shengzhou, Zhejiang, China. OEM customization and bulk wholesale are available for global industrial buyers.
FAQ
Q1: What IP rating does MB906-1 panel lock have?
A1: IP54, dust protected and resistant to water splashes.
Q2: What material is MB906-1 made of?
A2: Zinc alloy.
Q3: What surface finishes are available?
A3: Bright chrome-plated or black power coating.
Q4: What is the key type for MB906-1?
A4: Spiral-shaped key “1000#”.

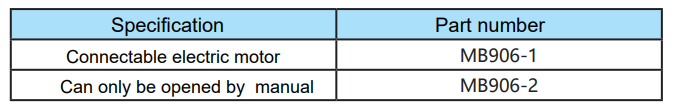

Q5: What is the difference between MB906-1 and MB906-2?
A5: MB906-1 can connect electric motor; MB906-2 can only be opened manually.
Q6: What is the adjustable height range?
A6: Adjustable height H: 28~48mm.
Related Products
Reaking manufactures industrial cabinet hardware in Shengzhou, Zhejiang, China. Our main products include industrial cabinet locks (cylinder locks, panel locks, RV locks, plane locks, rod control locks), handles, hinges and sealing strips. We supply hardware for industrial enclosures, telecom cabinets, data center cabinets, energy storage cabinets and RV applications. We serve buyers across Europe, North America, Middle East and Southeast Asia. OEM and custom orders are welcome.
{
