MB857-1 recessed paddle latch is a flush panel mounted cabinet lock manufactured by Reaking, Zhejiang factory. Constructed with SUS304 stainless steel for corrosion resistance, suitable for outdoor, wet and harsh industrial environments.

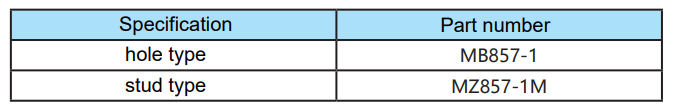

We supply two variants:

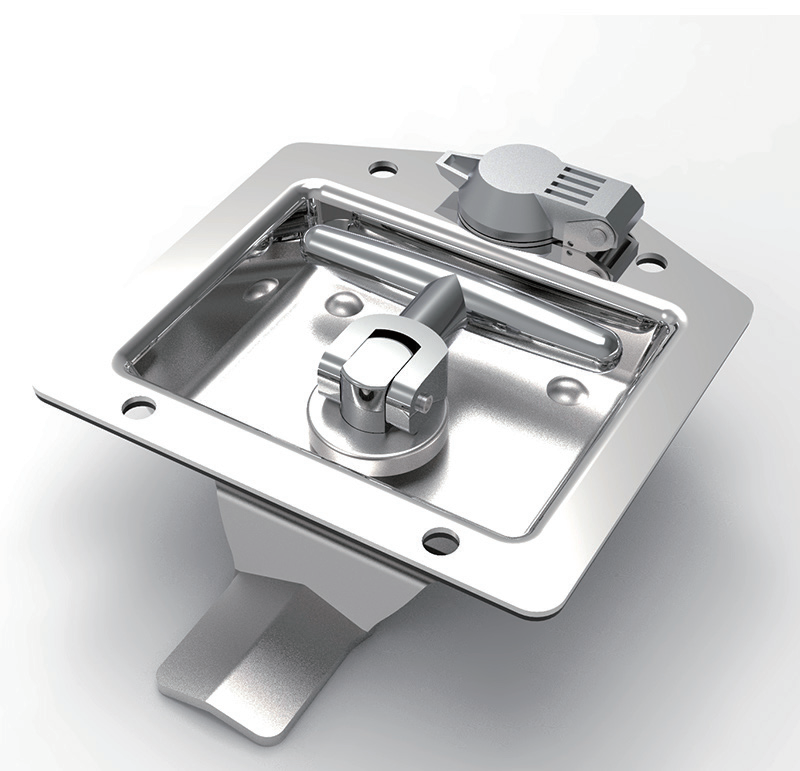

- MB857-1: Hole mounting type

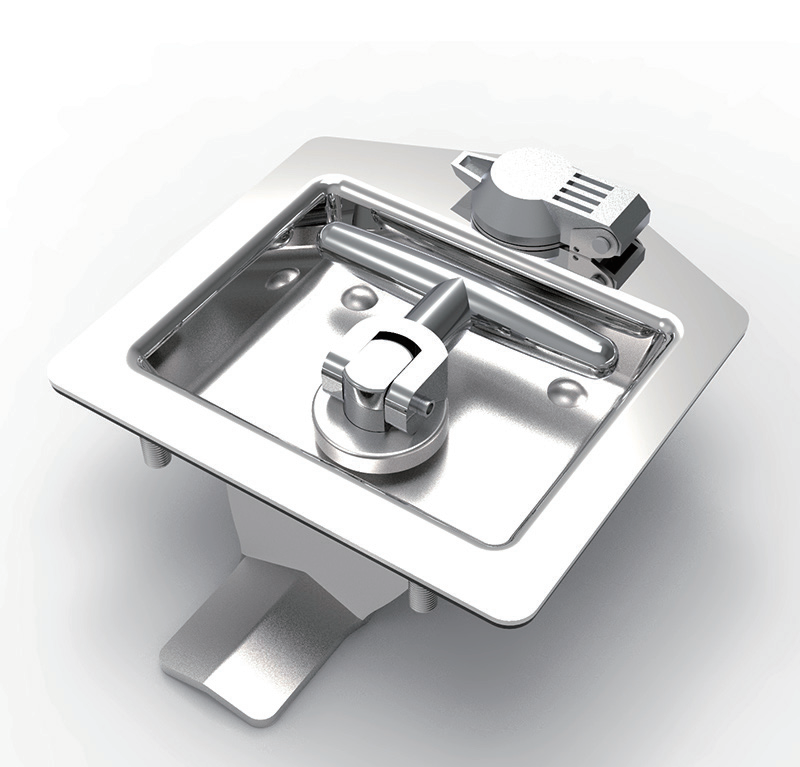

- MB857-1M: Stud mounting type

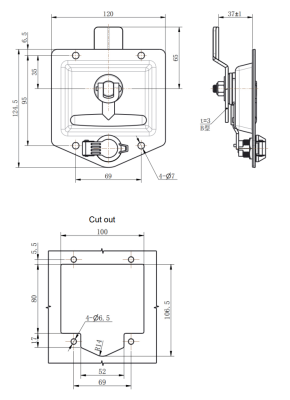

The latch adopts recessed flush design to avoid protruding damage. Standard cutout size available as shown in technical drawing, panel thickness t=3mm. Widely applied on electrical enclosures, telecom cabinets, RV compartment doors, generator boxes and off-road equipment housings.
Custom dimension and surface treatment can be supported for bulk orders.
FAQ
Q1: What material is MB857-1 paddle latch?
A: SUS304 stainless steel, good rust resistance for outdoor usage.
Q2: What is difference between MB857-1 and MB857-1M?
A: MB857-1 is hole mounting type; MB857-1M is stud welding/stud mounting type. Same latch body, different fixing method.
Q3: What panel thickness fits this latch?
A: Designed for panel thickness t=3mm.
Q4: What applications for MB857 series paddle latch?
A: Electrical cabinets, telecom enclosures, RV compartment doors, machinery & generator equipment boxes.
Related Products
Reaking manufactures industrial cabinet hardware in Shengzhou, Zhejiang, China. Our main products include industrial cabinet locks (cylinder locks, panel locks, RV locks, plane locks, rod control locks), handles, hinges and sealing strips. We supply hardware for industrial enclosures, telecom cabinets, data center cabinets, energy storage cabinets and RV applications. We serve buyers across Europe, North America, Middle East and Southeast Asia. OEM and custom orders are welcome.
{
