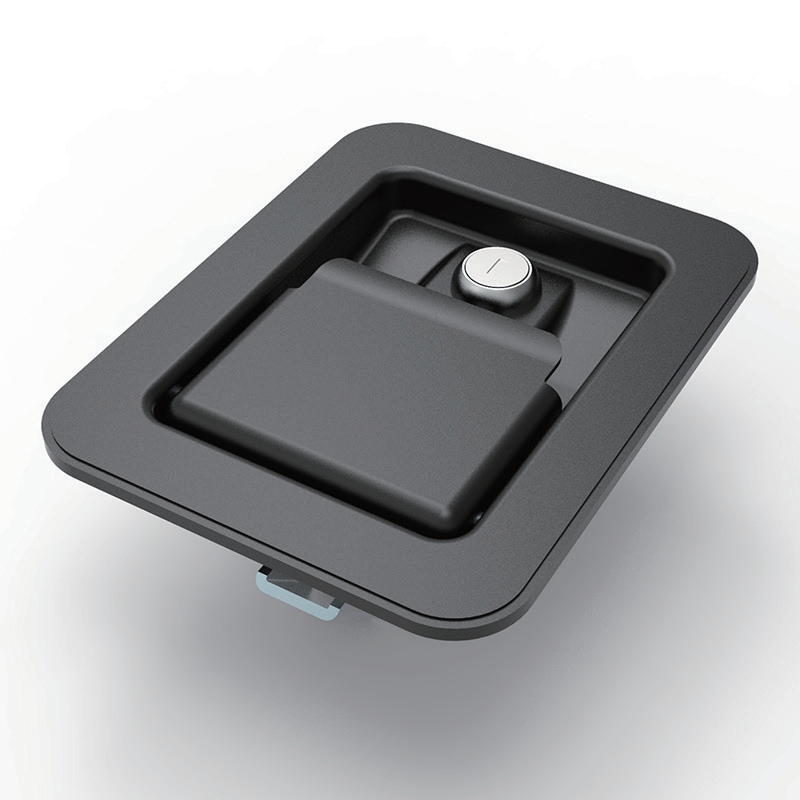

Reaking MB866-5 is an IP54 rated recessed paddle lock, built for flush panel mounting. This paddle lock comes in four different models to fit different depth requirements: MB866-5, MB866-5A, MB866-5C and MB866-5CA.
The lock body adopts a steel cup and handle with black powder coating. Cam, support and welding screw are galvanized, while the insert is made of zinc alloy with bright chrome plating. The lock uses key K1333.
This flush paddle lock is widely used on RV cabinet doors, truck toolboxes, utility vehicles and electrical control cabinets. The recessed design avoids protruding and prevents accidental opening. IP54 protection defends against dust and splashing water for outdoor and semi-outdoor applications.

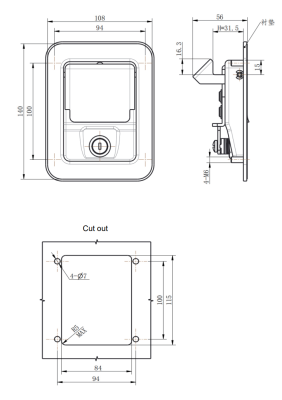

Custom cutout dimensions are provided in our technical drawing for easy installation. Reaking is a professional manufacturer of cabinet hardware with factory in Shengzhou, Zhejiang, China. We support OEM & bulk wholesale for global buyers.
FAQ
Q1: What are the available models of MB866-5 paddle lock?

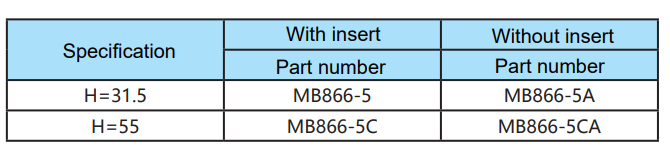

A1: There are four versions: MB866-5(with insert H31.5), MB866-5A(without insert H31.5), MB866-5C(with insert H55), MB866-5CA(without insert H55).
Q2: What is the IP rating for MB866-5 lock?
A2: IP54, dust protected and resistant to water splashes.
Q3: What material is MB866-5 recessed paddle lock made of?
A3: Steel cup & handle with black powder coating; zinc alloy insert; galvanized cam and screws.
Q4: What applications fit MB866-5 panel lock?
A4: RV cabinet doors, truck toolboxes, utility vehicles, electrical and telecom enclosures.
