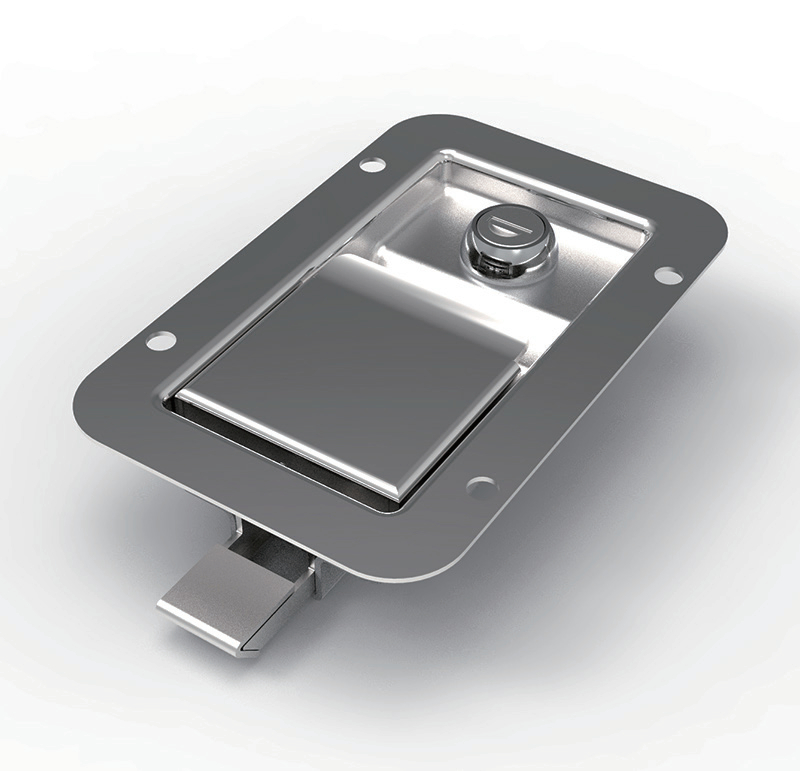

MB866-7 IP54 Stainless Steel Recessed Paddle Lock, Flush Mount Panel Lock
MB866-7 IP54 stainless steel recessed paddle lock, flush mount design. Mirror polished stainless steel cup, handle and cam; zinc alloy insert. Key K1333 supplied. Ideal for RV cabinet doors, truck toolboxes and electrical cabinets.
Reaking MB866-7 is an IP54 rated recessed paddle lock built with stainless steel for flush panel mounting.
Material: Stainless steel cup, handle and cam. Zinc alloy insert.
Finish: Mirror polished stainless steel cup & handle; bright chrome-plated zinc alloy insert. Key K1333 is included.
This flush paddle lock is widely used on RV cabinet doors, truck toolboxes, utility vehicles and electrical control cabinets. The recessed design avoids protruding parts to prevent accidental opening. IP54 protection level defends against dust and water splashes, suitable for outdoor and semi-outdoor working environments.

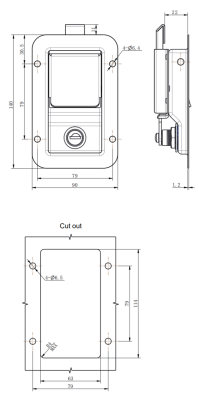

Full cutout dimensions are shown in the technical drawing for easy installation. Reaking is a professional cabinet hardware manufacturer located in Shengzhou, Zhejiang, China. OEM and bulk wholesale orders are available for global buyers.
FAQ
Q1: What is the IP rating of MB866-7 paddle lock?
A1: IP54, dust protected and resistant to water splashes.
Q2: What material is MB866-7 recessed paddle lock made of?
A2: Stainless steel cup, handle and cam; zinc alloy insert.
Q3: Which key matches MB866-7 lock?
A3: Key K1333.
Q4: What applications fit MB866-7 panel lock?
A4: RV cabinet doors, truck toolboxes, utility vehicles, electrical and telecom enclosures.
{
