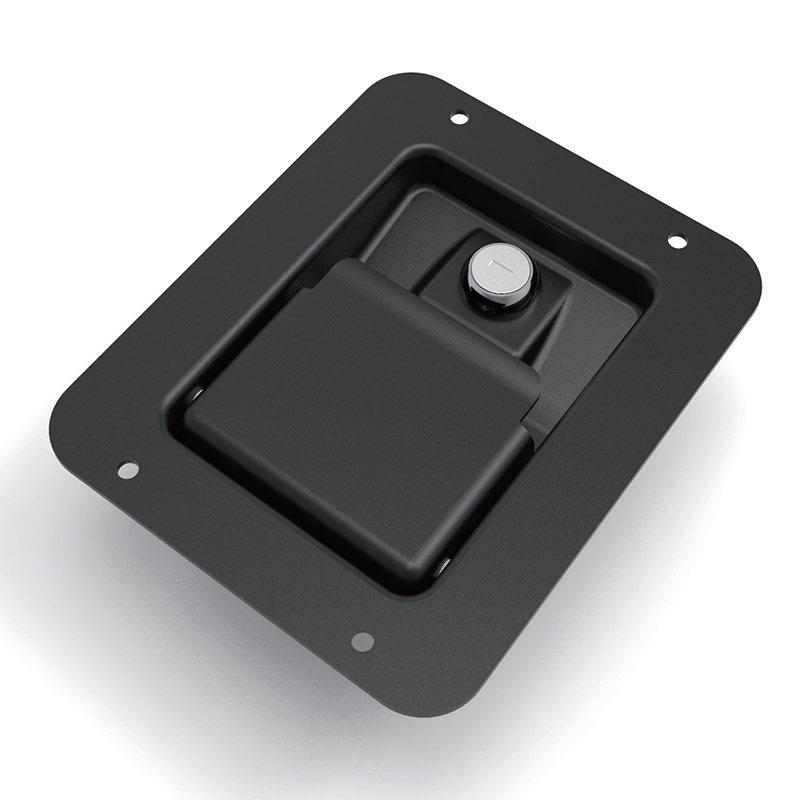

MB866-2 Recessed Panel Lock, IP54 protection grade.
Material: Zinc alloy housing and insert, steel cam.
Surface finish: Black powder coating for housing and insert; galvanized treatment for steel cam.
Opening method: 90 degree rotation to open or close the lock.
Adjustable cam stroke ranges from 47mm to 70mm, stroke 11.5mm.
Larger panel size compared with MB866-1, flush recessed mounting structure, anti-collision and space-saving.
Suitable for generator boxes, mechanical equipment enclosures, truck toolboxes, RV compartment doors and large industrial cabinets.
Reaking is professional industrial cabinet hardware manufacturer, supporting bulk orders and OEM customization for global B2B buyers.
FAQ
Q1: What protection rating does MB866-2 recessed panel lock have?
A1: MB866-2 is IP54 rated, dust resistant and protected against splashing water.
Q2: What material is MB866-2 panel lock?
A2: Housing and insert are zinc alloy; cam is steel with galvanized finish. The housing adopts black powder coating.
Q3: How to operate MB866-2 lock?
A3: It adopts 90 degree rotation mechanism to open or close the lock.
Q4: What is the adjustable cam stroke for MB866-2?
A4: The cam stroke can be adjusted from 47mm to 70mm, with 11.5mm travel.
Q5: What is the difference between MB866-2 and MB866-1?
A5: MB866-2 is the larger size version of MB866-1 with bigger outer panel and cutout dimension, same locking mechanism.
Q6: What applications fit MB866-2 recessed lock?
A6: Ideal for generator boxes, machinery enclosures, large truck toolboxes, RV compartment doors and industrial cabinets.
