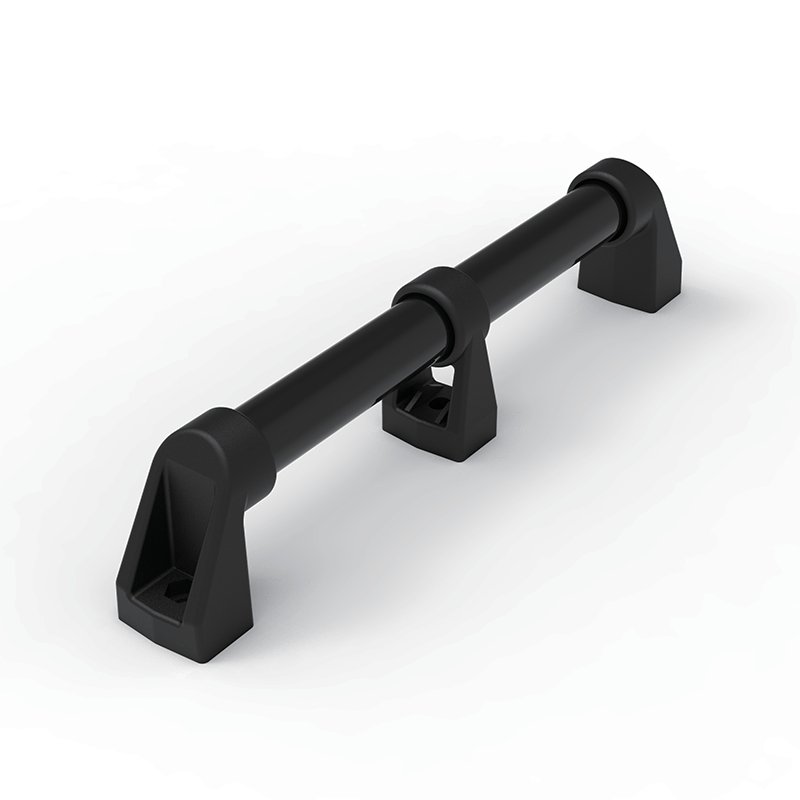

The LS513 tube pull handle uses a rubber sleeve over a steel pipe with black PA (nylon) end fixtures, giving a comfortable, non-slip grip on wide cabinet and enclosure doors.
It is supplied in six lengths — 300, 400, 500, 600, 700 and 800 mm — and an optional middle seat is available for extra support on long spans.
Typical applications include wide industrial enclosures, telecom cabinets, data center cabinets and machinery doors. The dimension drawing is provided below.
| Part Number | Description | Material | Finish |
|---|---|---|---|
| LS513-300 ~ -800 | tube pull handle, rubber sleeve, 6 lengths | Rubber sleeve, steel pipe, black PA fixtures | Black PA fixtures |

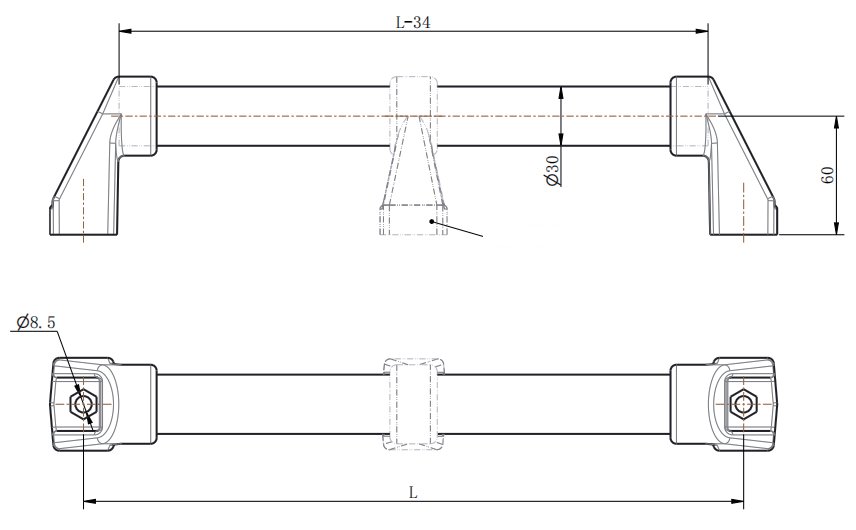

Dimension Drawing
FAQ
Q: What lengths does the LS513 come in?
A: 300, 400, 500, 600, 700 and 800 mm.
Q: What is the grip made of?
A: A rubber sleeve over a steel pipe for a comfortable, non-slip grip.
Q: What is the middle seat?
A: An optional support bracket for extra rigidity on long spans — tell us when ordering if you need it.
Q: Where is it used?
A: Wide industrial enclosures, telecom cabinets and data center cabinets.
